6MT Gear Shift Lever

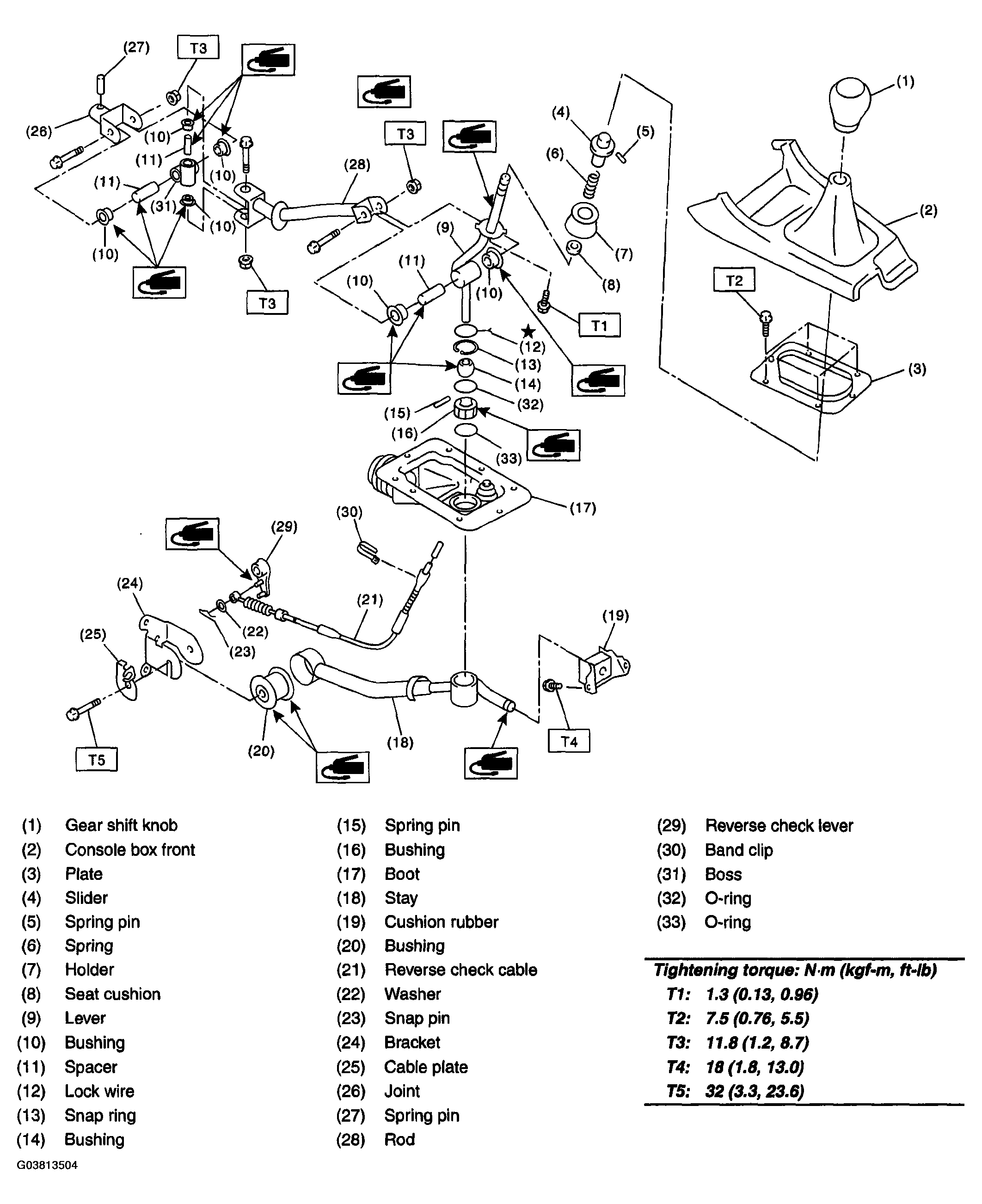

Fig 1: Exploded View Of 6MT Gear Shift Lever With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
