Engine Coolant Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

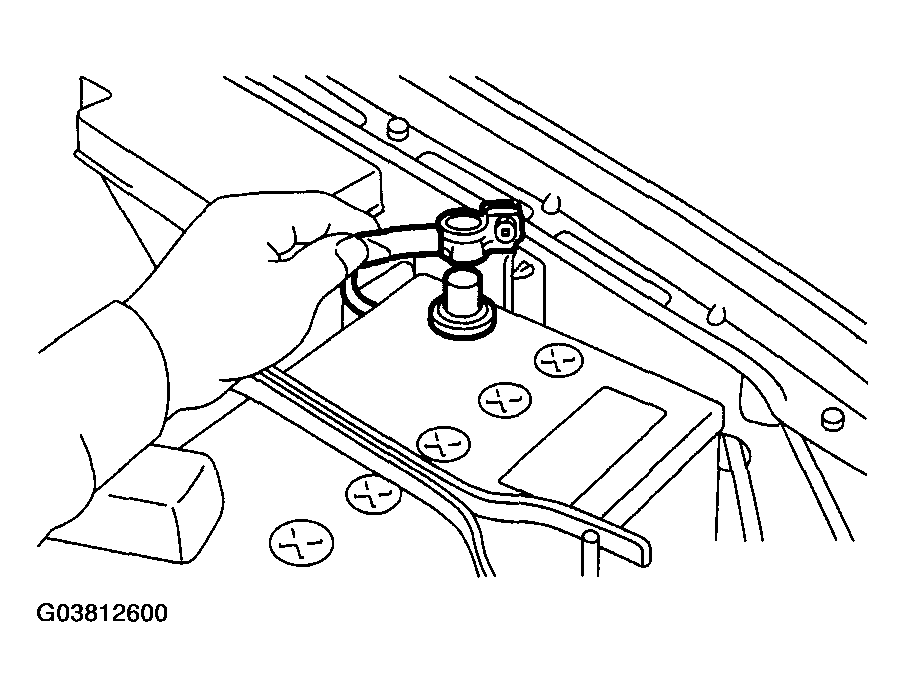

    Fig 1: Disconnecting Ground Cable From Battery
    G03812600Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the generator. < Ref. to REMOVAL , Generator. >
  3. Disconnect the connectors from engine coolant temperature sensor.

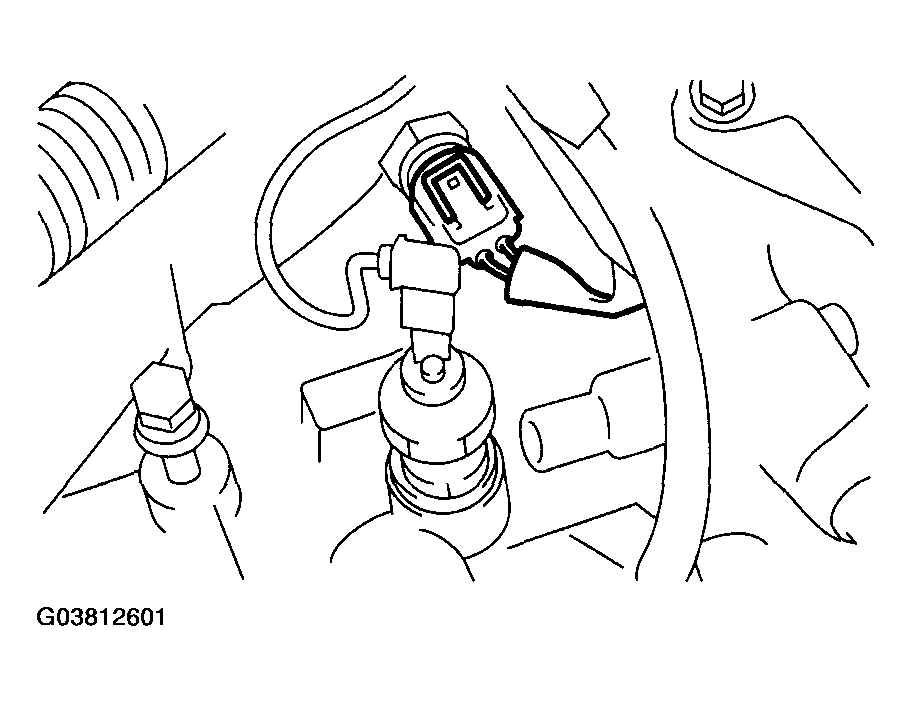

    Fig 2: Disconnecting Connectors From Engine Coolant Temperature Sensor
    G03812601Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the engine coolant temperature sensor.
