Intake Manifold: Removal

  1. Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE , Fuel. >
  2. Open the fuel filler flap lid, and remove the fuel filler cap.
  3. Disconnect the ground cable from battery.

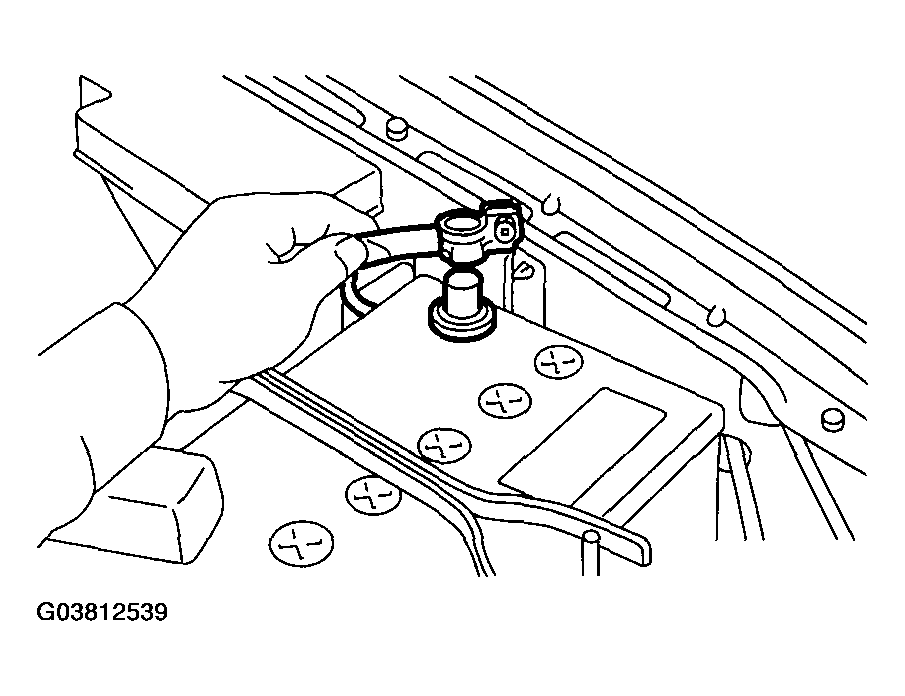

    Fig 1: Disconnecting Ground Cable From Battery
    G03812539Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake duct, air cleaner case and air intake chamber. < Ref. to REMOVAL , Air Intake Duct. > < Ref. to REMOVAL , Air Cleaner Case. > < Ref. to REMOVAL , Air Intake Chamber. >
  5. Remove the generator. < Ref. to REMOVAL , Generator. >
  6. Remove the power steering pump and reservoir tank from bracket.
    1. Remove the bolts which hold power steering pipes onto the protector.
      NOTE: Do not disconnect the power steering hose.

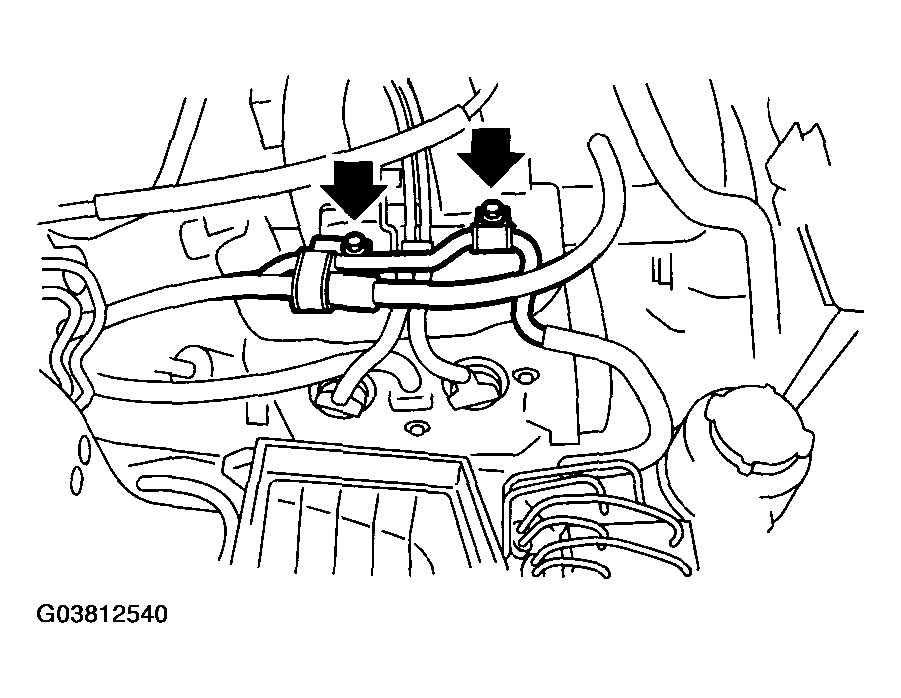

      Fig 2: Removing Bolts Holding Power Steering Pipes Onto Protector
      G03812540Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolts which install power steering pump bracket.

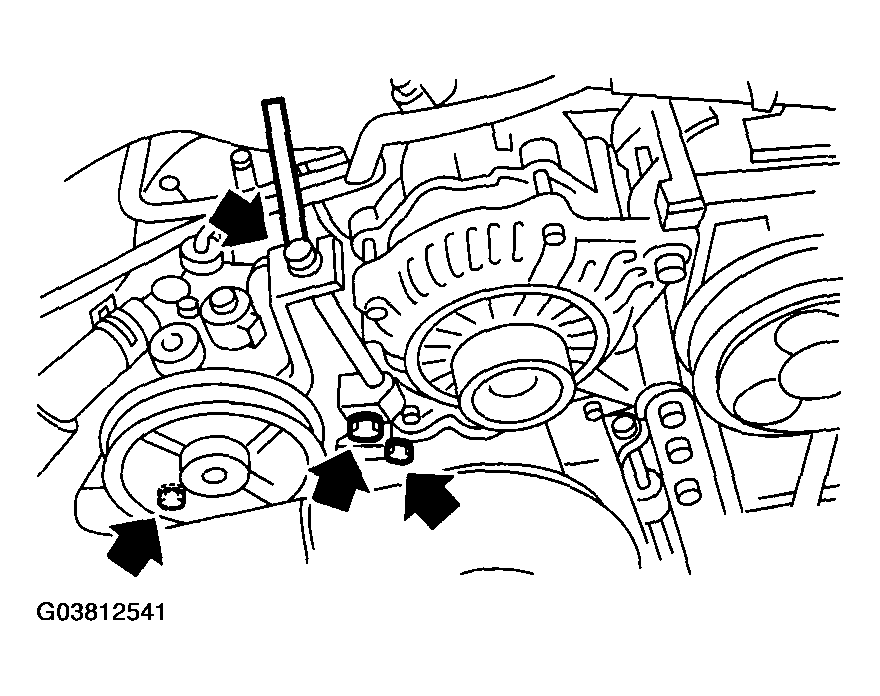

      Fig 3: Removing Power Steering Pump Bracket Installing Bolts
      G03812541Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector (A) from the power steering pump switch.

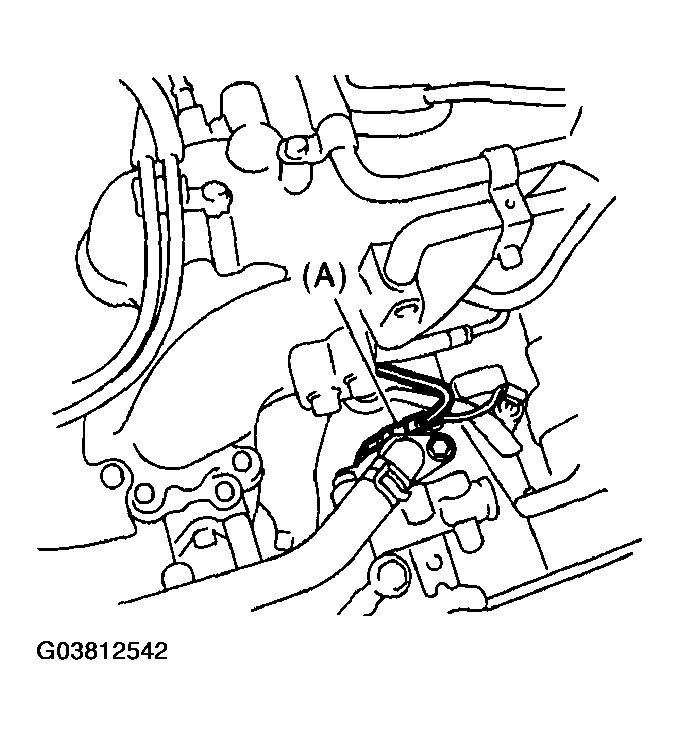

      Fig 4: Disconnecting Connector From Power Steering Pump Switch
      G03812542Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the reservoir tank from the bracket by pulling it upwards.
      Fig 5: Removing Reservoir Tank From Bracket
      G03812543Courtesy of SUBARU OF AMERICA, INC.
    5. Place the power steering pump on the right side wheel apron.

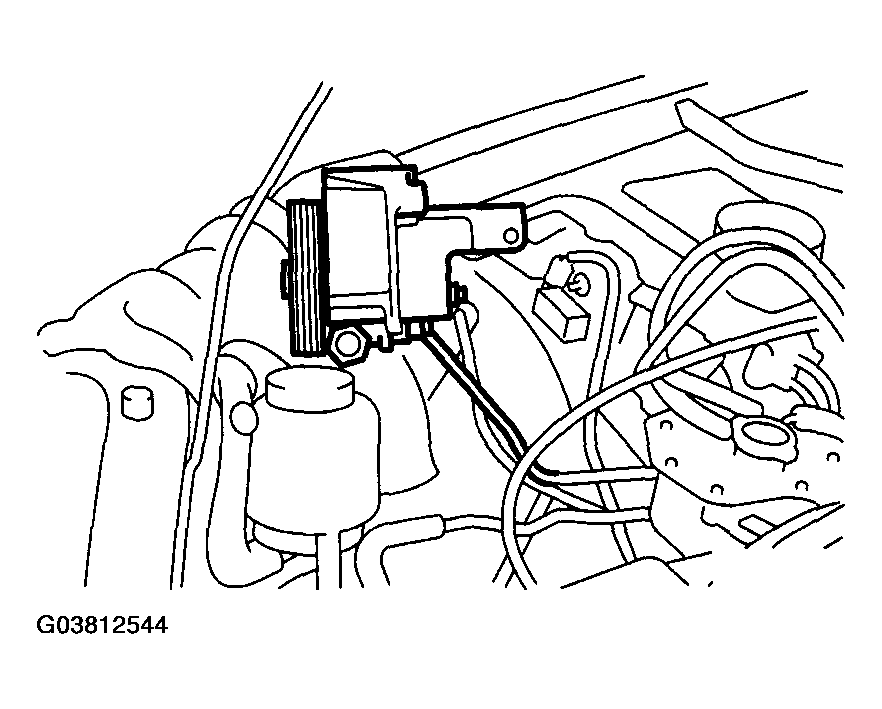

      Fig 6: Placing Power Steering Pump On Right Side Wheel Apron
      G03812544Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the spark plug cords from spark plugs by pulling the plug cap. (Do not pull the cord.)
  8. Disconnect the engine coolant hoses (A) from throttle body.

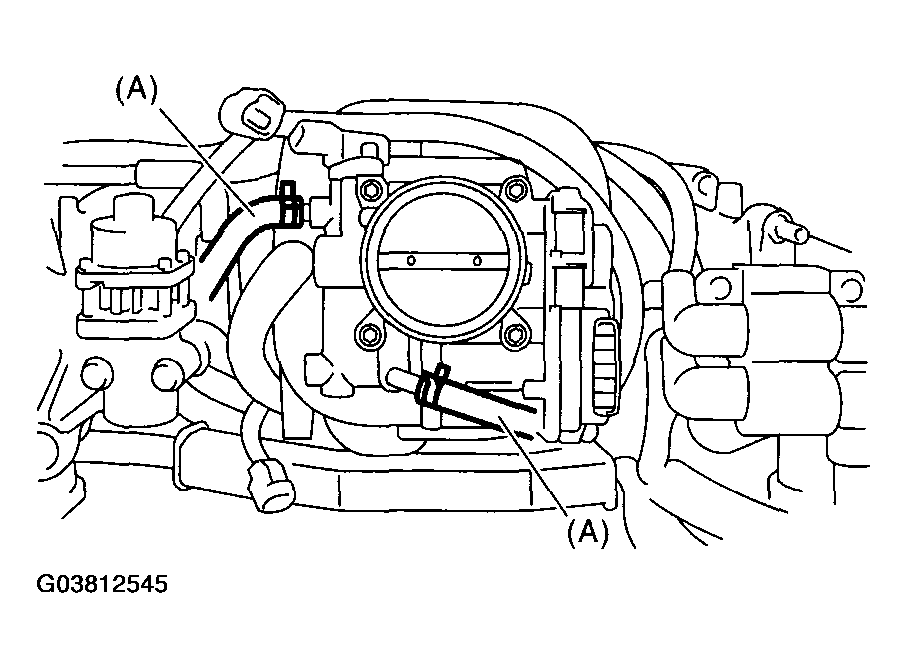

    Fig 7: Disconnecting Engine Coolant Hoses From Throttle Body
    G03812545Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the brake booster hose (A).

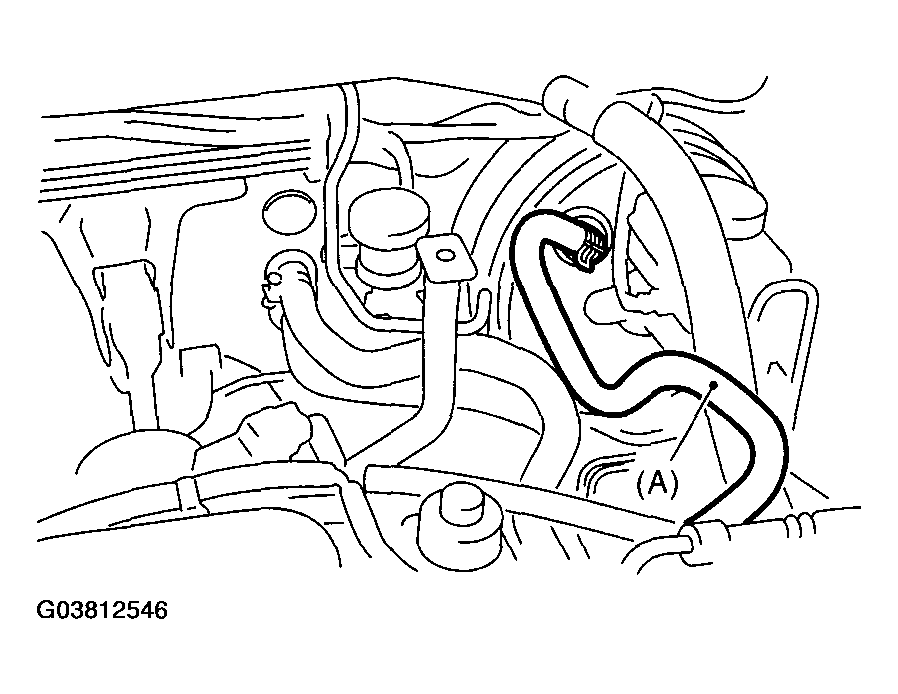

    Fig 8: Disconnecting Brake Booster Hose
    G03812546Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the PCV hose (A) from intake manifold.
  11. Disconnect the engine harness connectors (B) from bulkhead harness connectors.

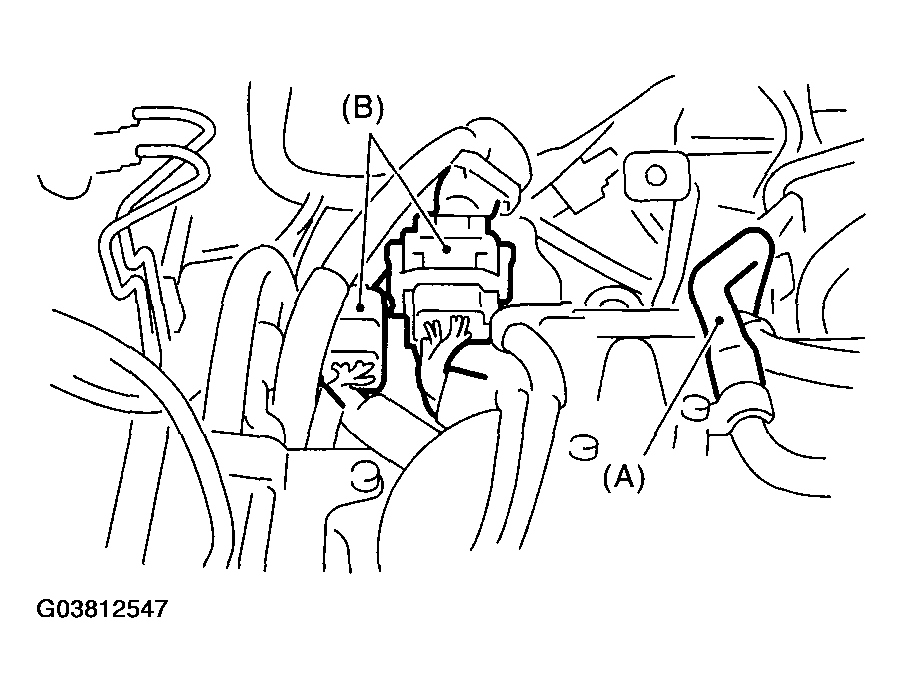

    Fig 9: Disconnecting PCV Hose And Engine Harness Connectors
    G03812547Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the connectors from engine coolant temperature sensor.

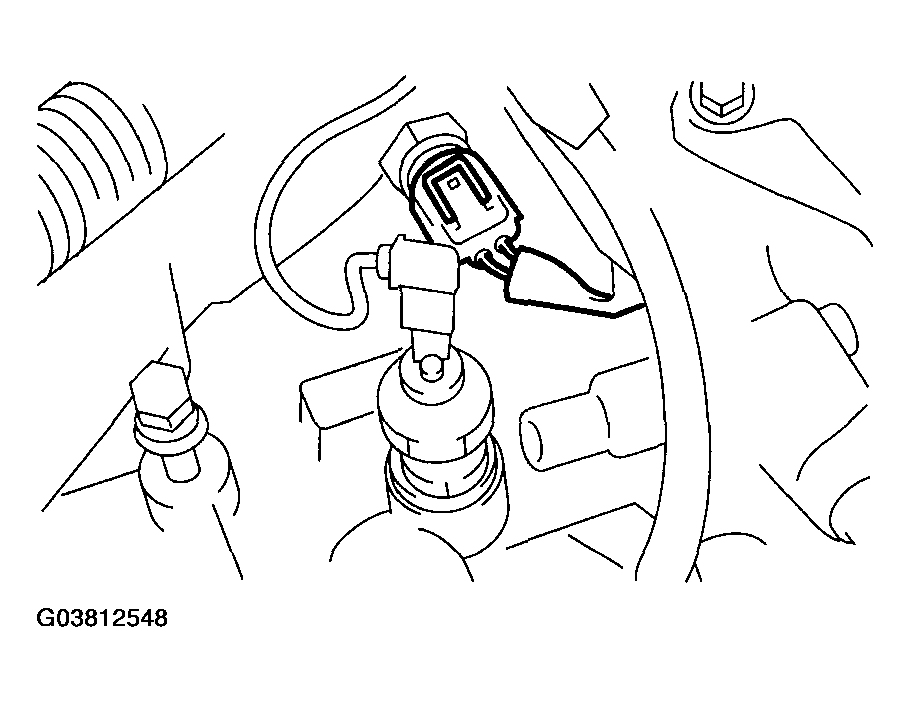

    Fig 10: Disconnecting Connectors From Engine Coolant Temperature Sensor
    G03812548Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the knock sensor connector.
    Fig 11: Disconnecting Knock Sensor Connector
    G03812549Courtesy of SUBARU OF AMERICA, INC.
  14. Disconnect the connector from crankshaft position sensor.

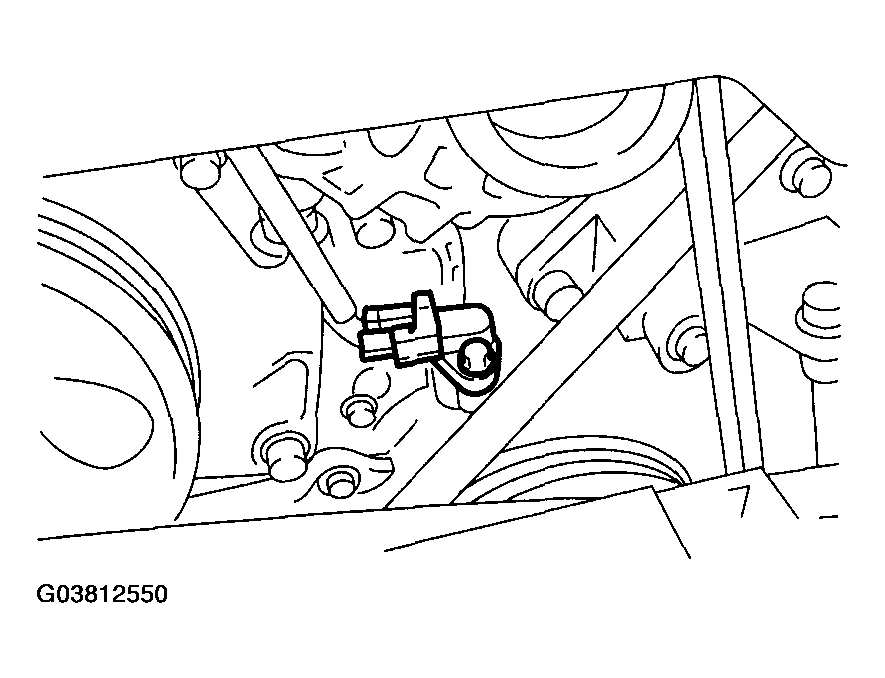

    Fig 12: Disconnecting Connector From Crankshaft Position Sensor
    G03812550Courtesy of SUBARU OF AMERICA, INC.
  15. Disconnect the connector from oil pressure switch (A).

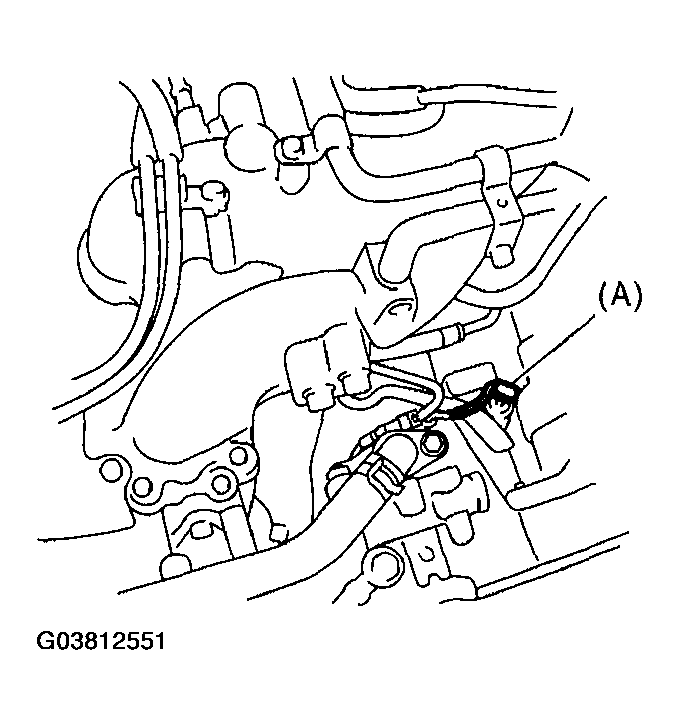

    Fig 13: Disconnecting Connector From Oil Pressure Switch
    G03812551Courtesy of SUBARU OF AMERICA, INC.
  16. Disconnect the connector from camshaft position sensor.

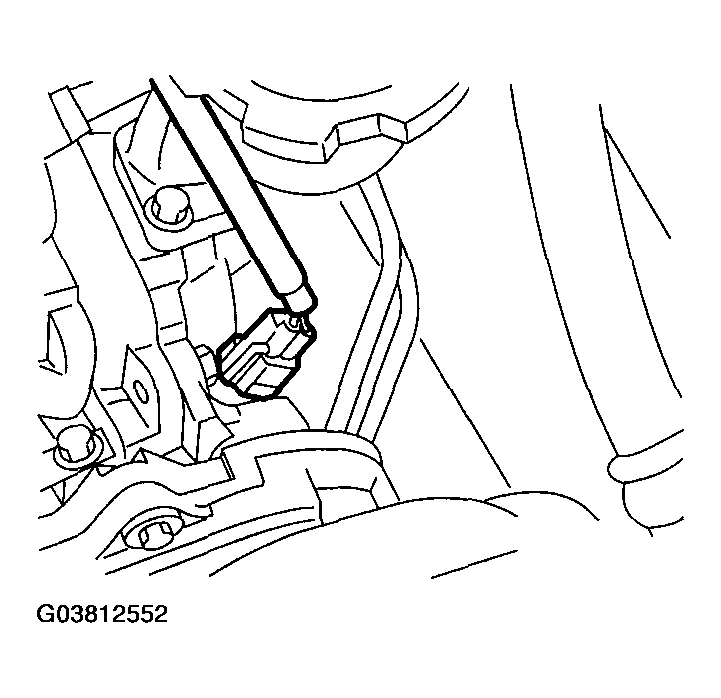

    Fig 14: Disconnecting Connector From Camshaft Position Sensor
    G03812552Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the EGR pipe from intake manifold.

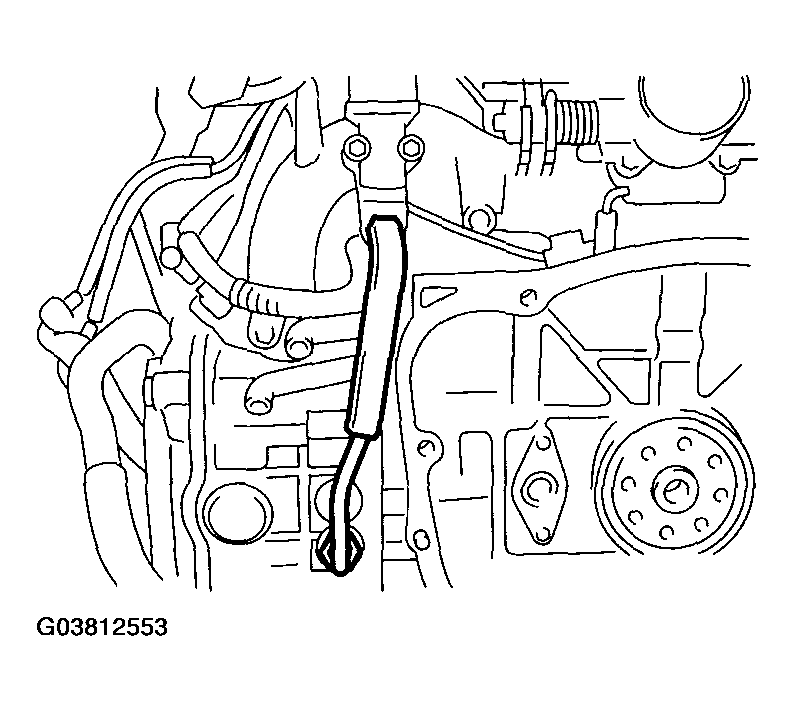

    Fig 15: Removing EGR Pipe From Intake Manifold
    G03812553Courtesy of SUBARU OF AMERICA, INC.
  18. Disconnect the fuel hoses from fuel pipes.
    1. Separate the quick connectors of fuel delivery line and return line by pushing the ST to the direction of arrow.

      ST 42099AE000 CONNECTOR REMOVER

    2. Remove the clip, and separate the evaporation hose from pipe.
    WARNING:
    • Be careful not to spill fuel.
    • Catch the fuel from hoses using a container or cloth.

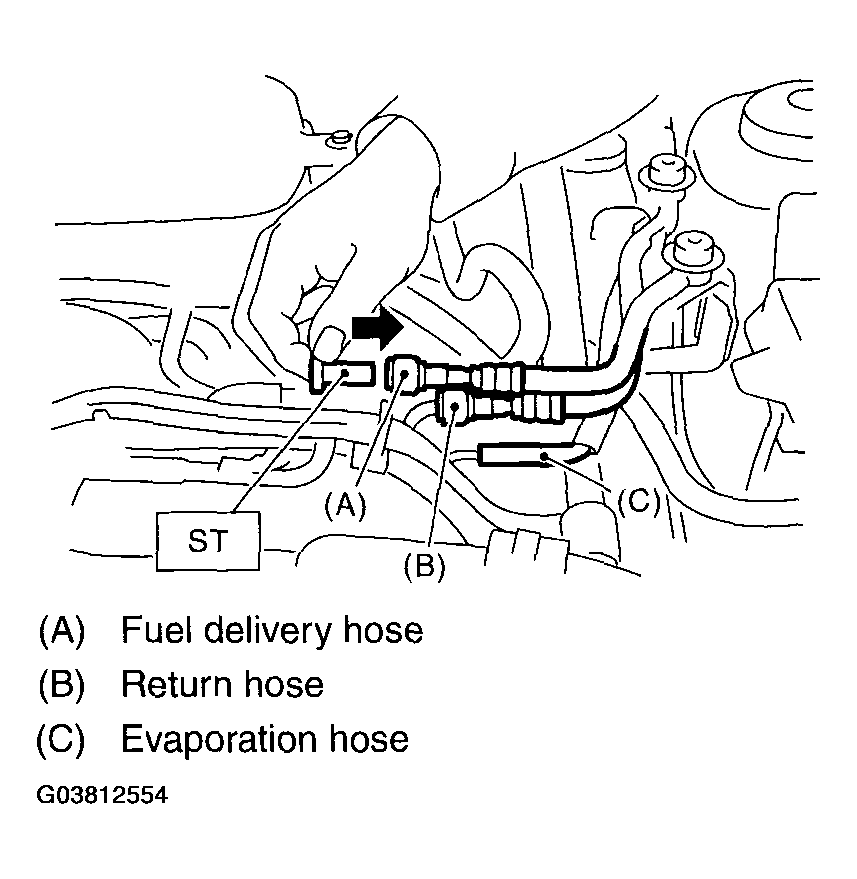

      Fig 16: Separating Quick Connectors Of Fuel Delivery Line And Return Line By Pushing Connector Remover ST 42099AE000
      G03812554Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the bolts which secure intake manifold to cylinder head.

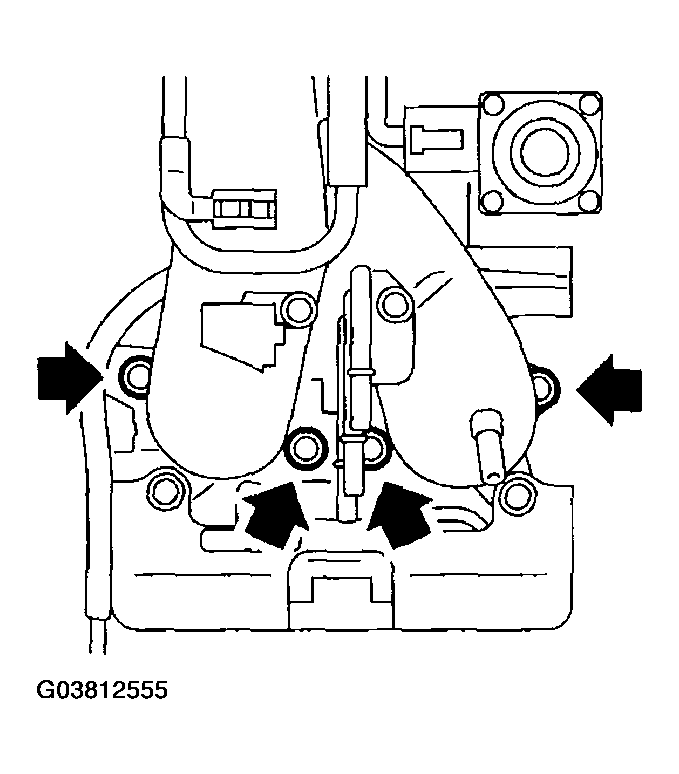

    Fig 17: Removing Bolts Securing Intake Manifold To Cylinder Head
    G03812555Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the intake manifold
