Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> Transmission Control Module (TCM) >> Schematic Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

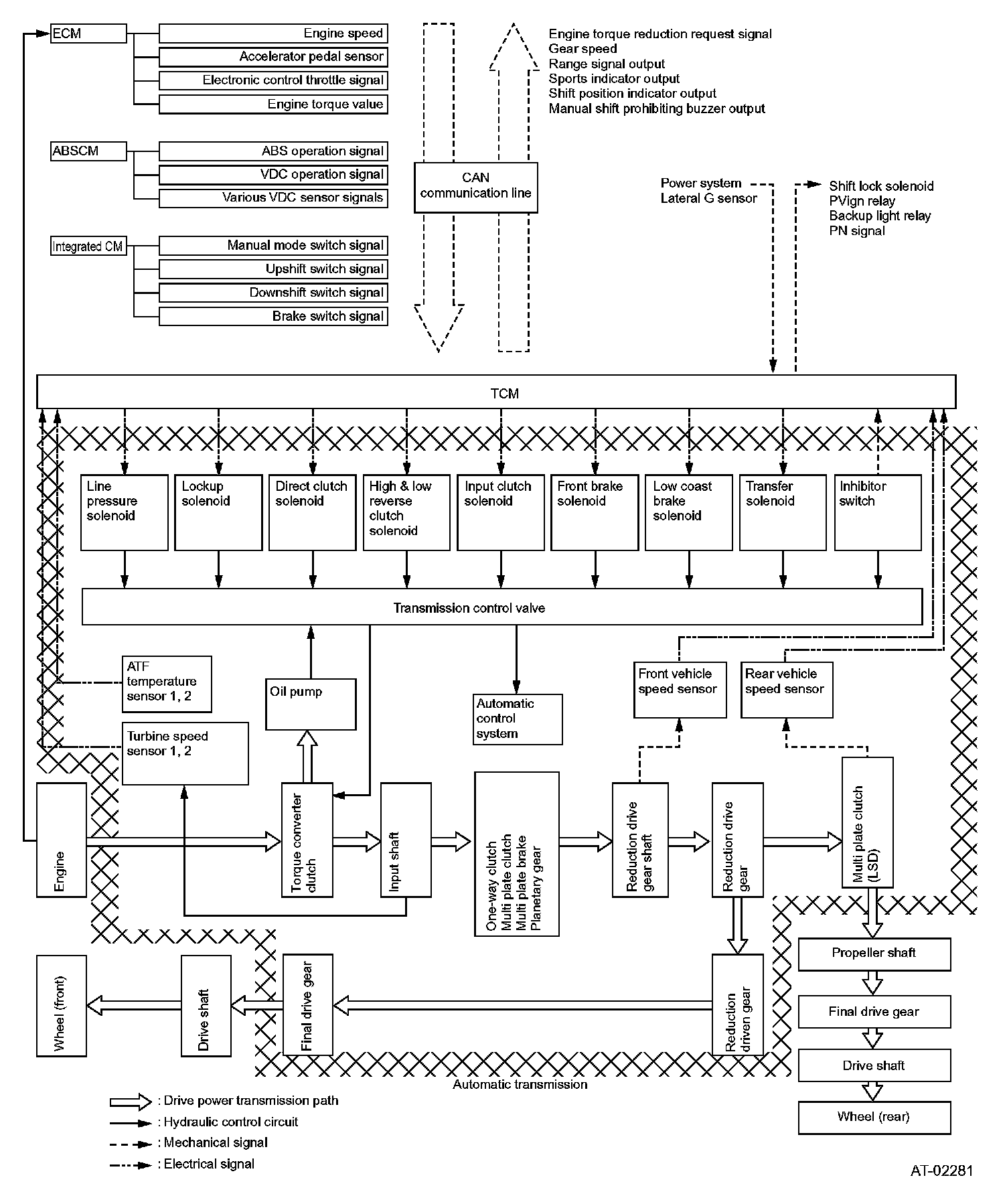

Schematic Diagram

Schematic Diagram:
