Clutch Assembly
WARNING:
This page is about a different variant/trim than selected.
Non-turbo model

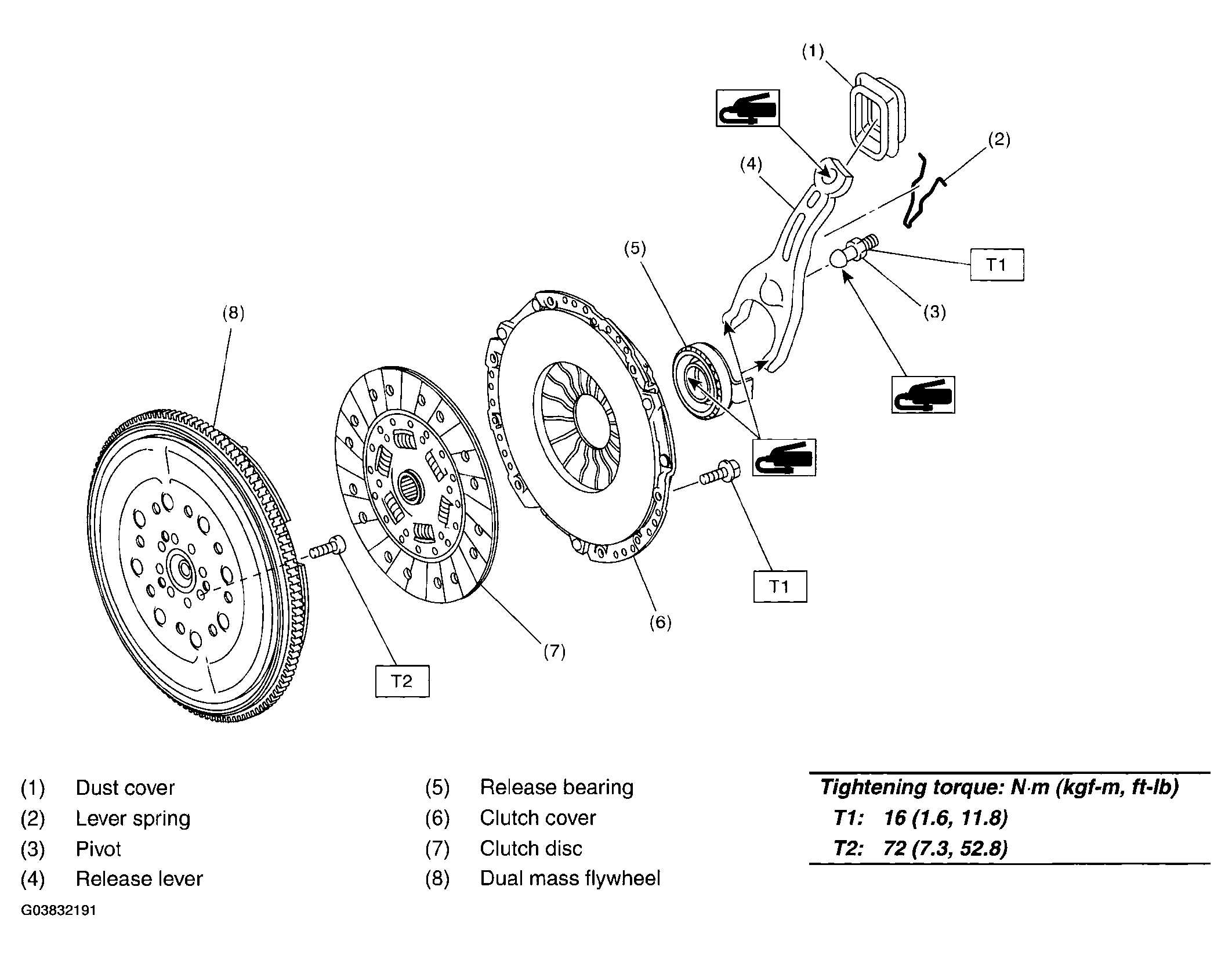

Fig 1: Exploded View Of Clutch Assembly With Torque Specifications (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Turbo model
Fig 2: Exploded View Of Clutch Assembly With Torque Specifications (Turbo model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
