ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Removal

  1. Disconnect the ground cable from battery.
  2. Use compressed air to get rid of water and dust around the ABSCM&H/U.
    NOTE: When dust and dirt are attached to the terminal, they may cause poor contact.
  3. Disconnect the ABSCM&H/U connector pulling up the lock lever.
    CAUTION: Do not pull the harness when disconnecting connector.

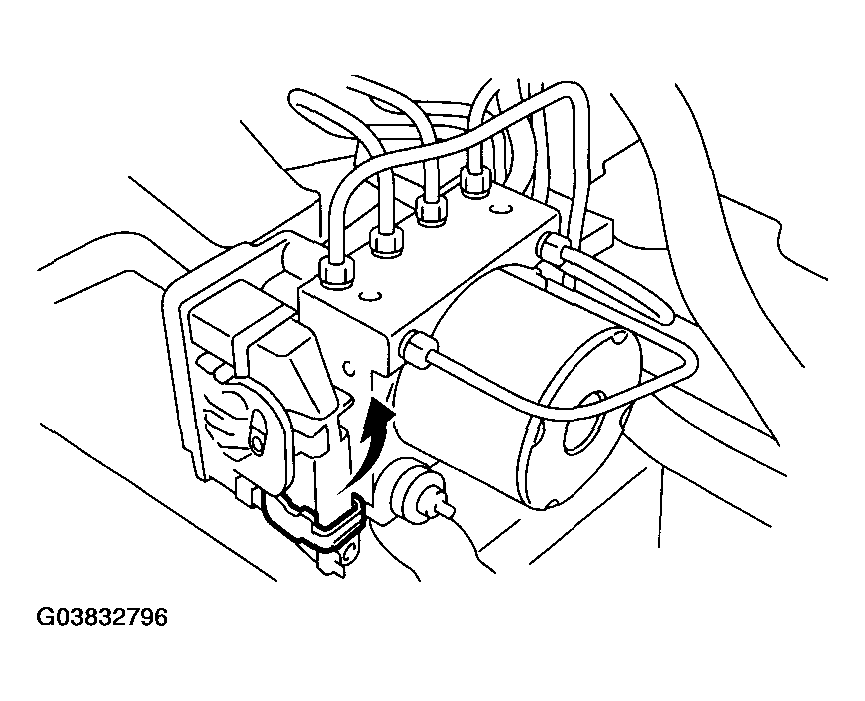

    Fig 1: Disconnecting ABSCM&H/U Connector
    G03832796Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness clip.
  5. Disconnect the brake pipes from ABSCM&H/U.
  6. Wrap the brake pipe using a vinyl bag not to spill the brake fluid on the vehicle body.
    CAUTION: When brake fluid is attached to the vehicle body, wash it off with water and wipe the water.
  7. Remove the nuts and remove the ABSCM&H/U.
    CAUTION:
    • Do not drop or bump the ABSCM&H/U.
    • Do not turn ABSCM&H/U upside down or place it sideways for storage.
    • Be careful that no foreign objects are mixed in ABSCM&H/U.
    • Be careful that no water enters inside the connectors.

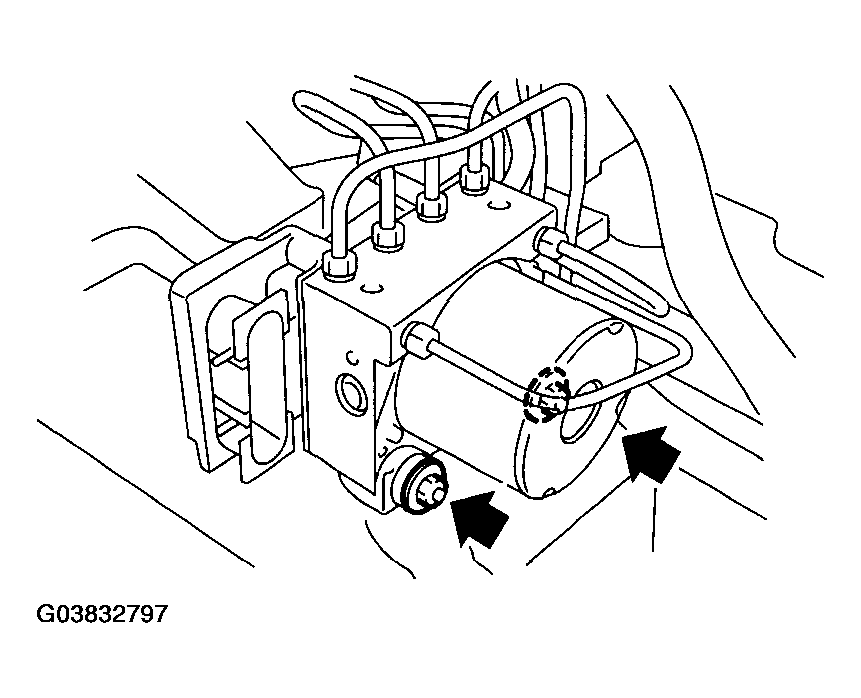

    Fig 2: Removing Nuts And ABSCM&H/U
    G03832797Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the ABSCM&H/U bracket.
