Components With Torque Specifications

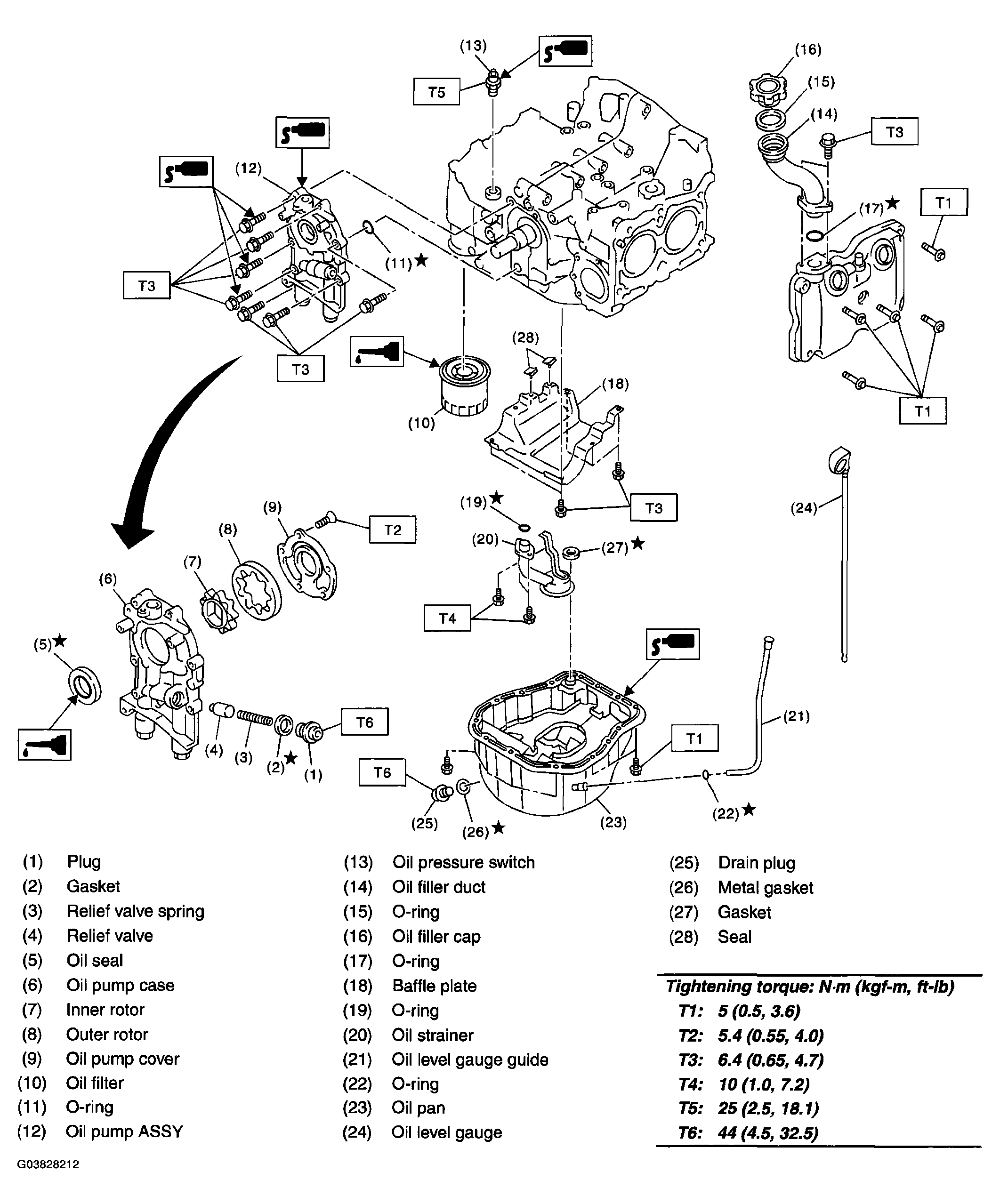

Fig 1: Lubrication (H4SO) Replacement Components With Torque Specifications
G03828212Courtesy of SUBARU OF AMERICA, INC.
