Compulsory Valve Operation Check Mode: Operation

  1. Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

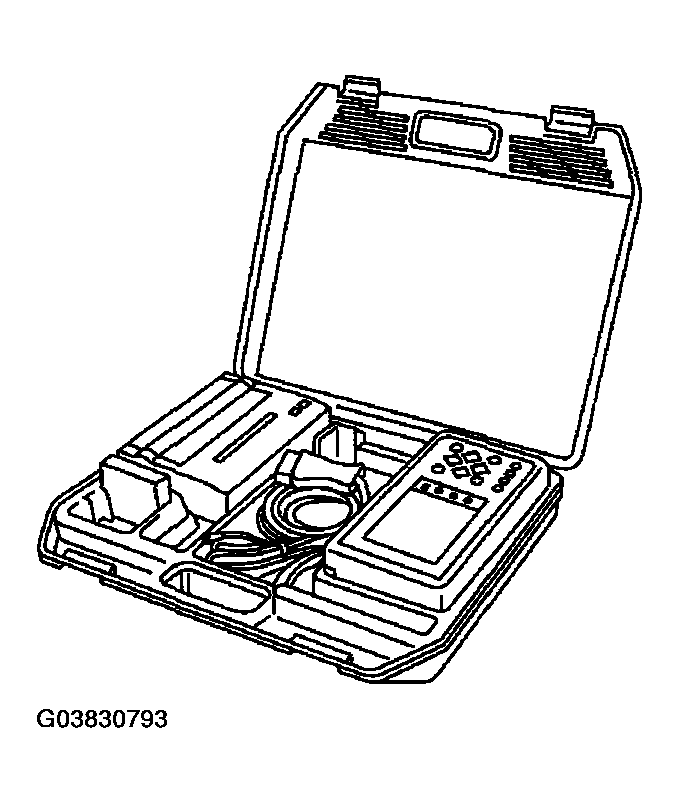

    Fig 1: Preparing Subaru Select Monitor Kit
    G03830793Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the diagnosis cable to Subaru Select Monitor.
  3. Insert the cartridge to Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

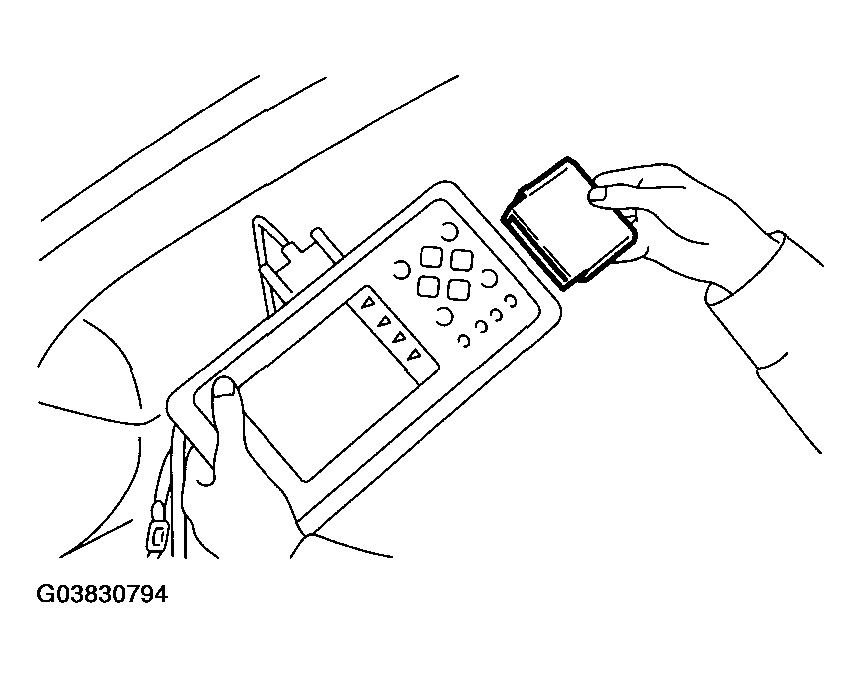

    Fig 2: Inserting Cartridge To Subaru Select Monitor
    G03830794Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the test mode connector (A) located at the lower portion of glove box.

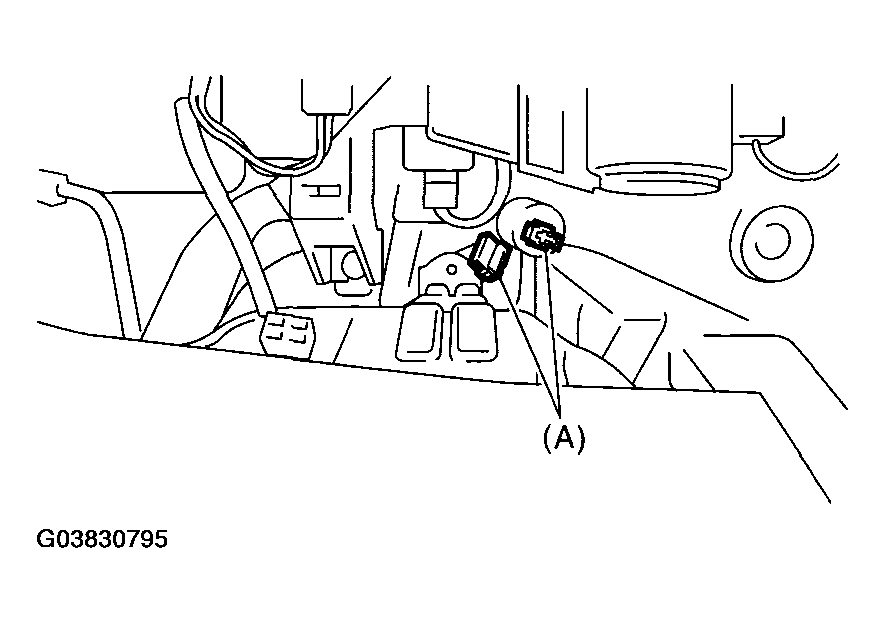

    Fig 3: Locating Test Mode Connector In Lower Portion Of Glove Box
    G03830795Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).

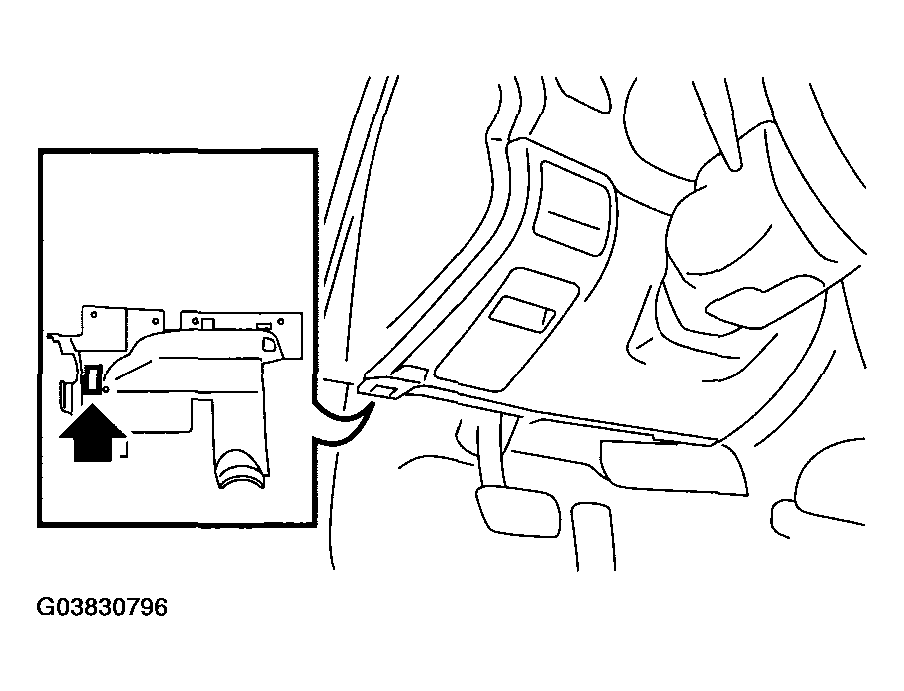

    Fig 4: Connecting Subaru Select Monitor To Data Link Connector
    G03830796Courtesy of SUBARU OF AMERICA, INC.
    CAUTION: Do not connect the scan tools except for Subaru Select Monitor or OBD-II general scan tool.
  6. Turn the ignition switch to ON (engine OFF) and turn on the Subaru Select Monitor switch.
  7. On the << Main Menu>> display screen, select the {Each System Check} and press the [YES] key.
  8. On the << System Selection Menu>> display screen, select the {Engine} and press the [YES] key.
  9. Press the [YES] key after the information of engine type was displayed.
  10. On the << Engine Diagnosis>> display screen, select the {System Operation Check Mode} and press the [YES] key.
  11. On the << System Operation Check Mode>> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
  12. Select the desired actuator on the << Actuator ON/OFF Operation>> display screen and press the [YES] key.
  13. Pressing the [NO] key completes the compulsory valve operation check mode. The display will then return to the << Actuator ON/OFF Operation>> screen.
DESCRIPTION DISPLAY CHART

DESCRIPTION Display
Compulsory fuel pump relay operation check Fuel Pump
Compulsory radiator fan relay operation check Radiator Fan Relay
Compulsory air conditioning relay operation check A/C Compressor Relay
Compulsory purge control solenoid valve operation check CPC Solenoid
Compulsory pressure control solenoid valve operation check PCV Solenoid
Compulsory air assist vent control solenoid valve operation check Vent Control Solenoid
Compulsory fuel tank sensor control valve operation check Tank Sensor Cntl Valve
NOTE:
  • The following parts will be displayed but not functional.
    FUNCTION DISPLAY CHART

    Display
    EGR Solenoid
    ASV Solenoid
    FICD Solenoid
    Pressure Switching Solenoid 1
    Pressure Switching Solenoid 2
    Supercharger Control Solenoid
    AAI Solenoid
    Exhaust Bypass Valve Control Permit Flag
  • For detailed operation procedure, refer to the generic scan tool instruction cards, refer to the SUBARU SELECT MONITOR OPERATION MANUAL .
