Engine Ground

Make sure the engine grounding terminal is properly connected to the engine.

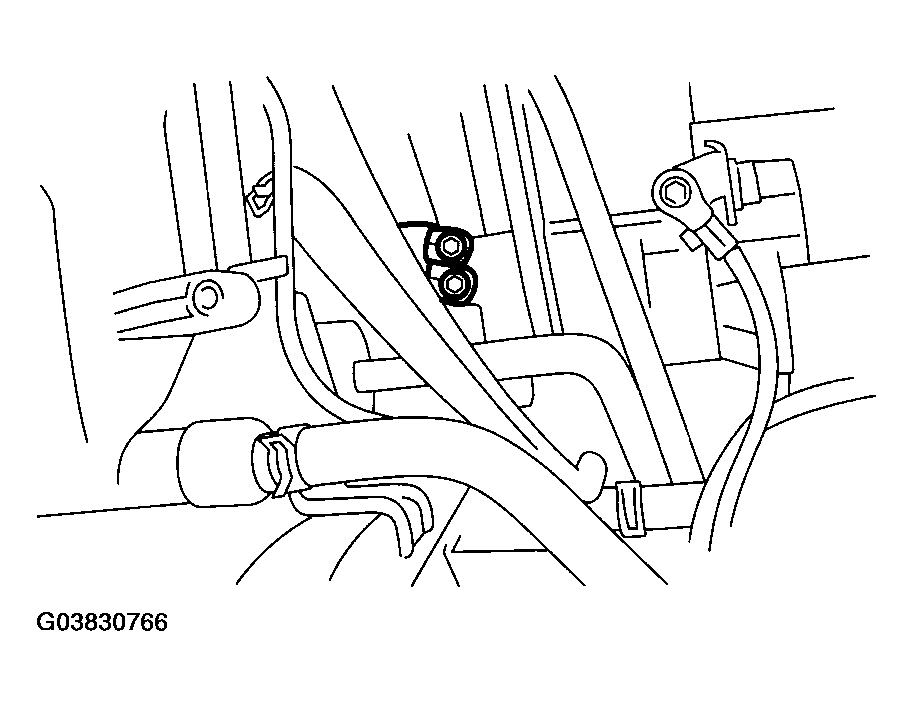

Fig 1: Checking Engine Ground
G03830766Courtesy of SUBARU OF AMERICA, INC.
