SUBARU Select Monitor

After clearing the memory, check for any remaining unresolved trouble data. < Ref. to , CLEAR MEMORY MODE . >
Idle the engine.
Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

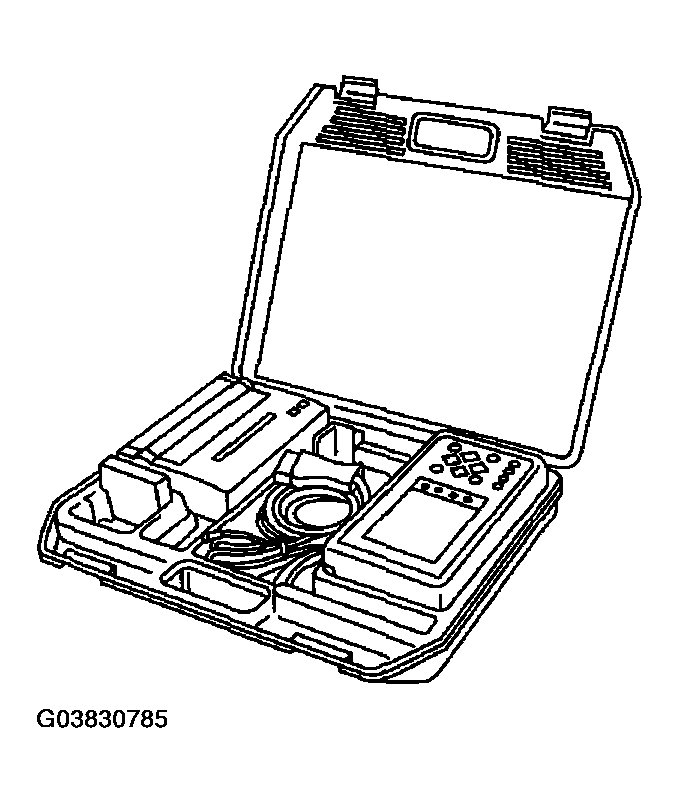

Fig 1: Identifying Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect the diagnosis cable to Subaru Select Monitor.
Insert the cartridge to Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

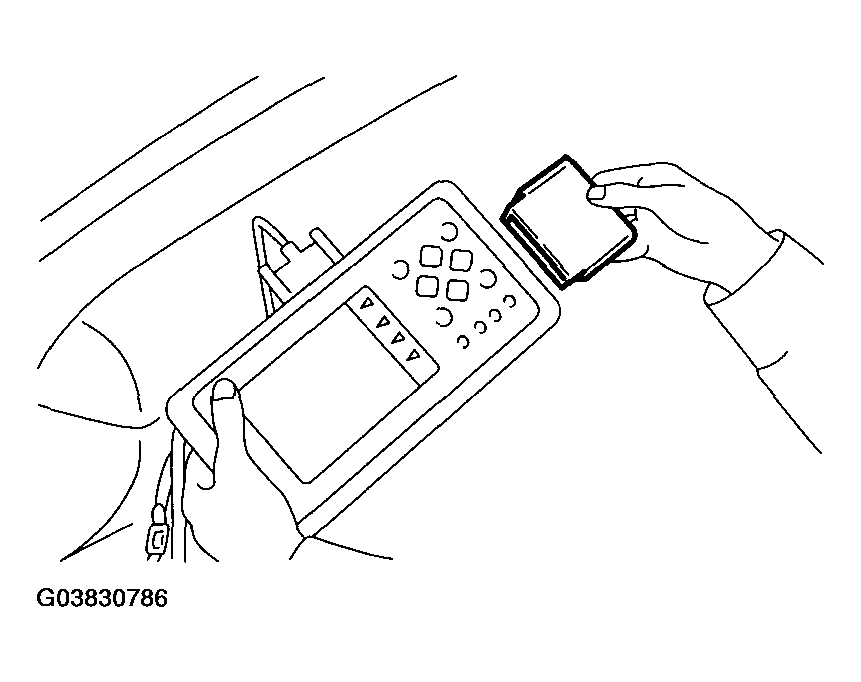

Fig 2: Inserting Cartridge To Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.
Connect the test mode connector (A) located at the lower portion of glove box.

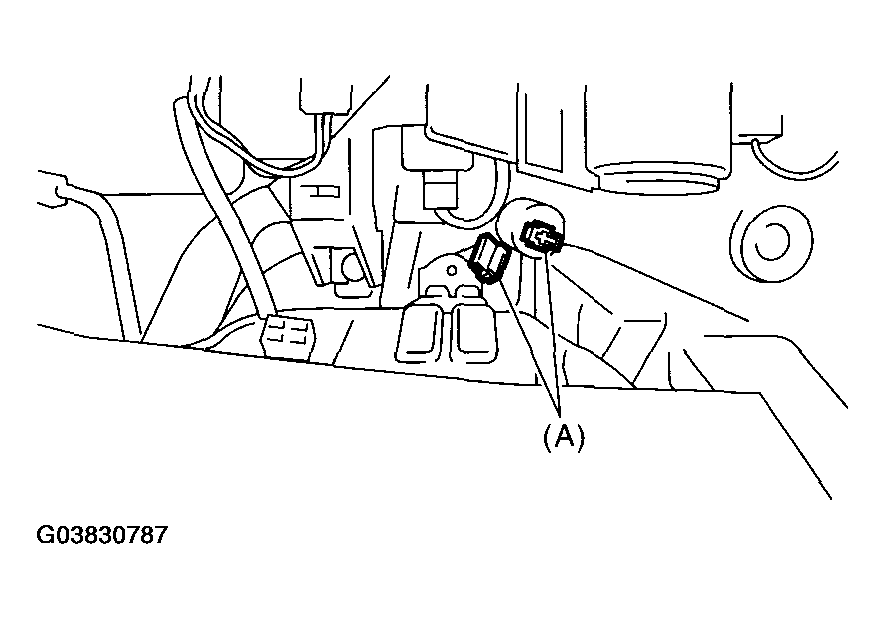

Fig 3: Connecting Test Mode Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).

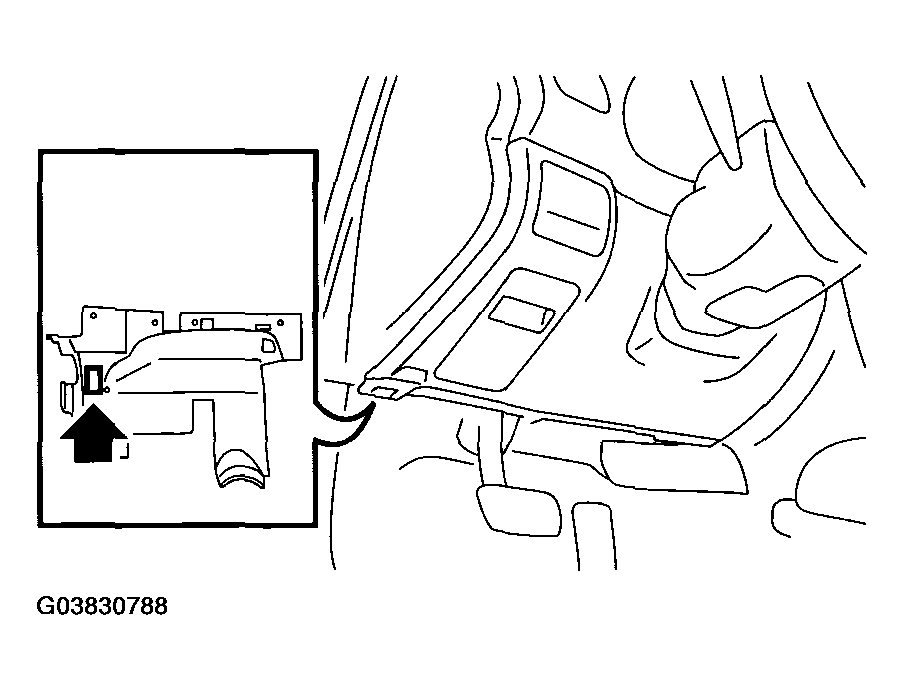

Fig 4: Connecting Subaru Select Monitor To Data Link Connector
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Do not connect the scan tools except for Subaru Select Monitor or OBD-II general scan tool.
Turn the ignition switch to ON (engine OFF) and turn Subaru Select Monitor switch to ON.

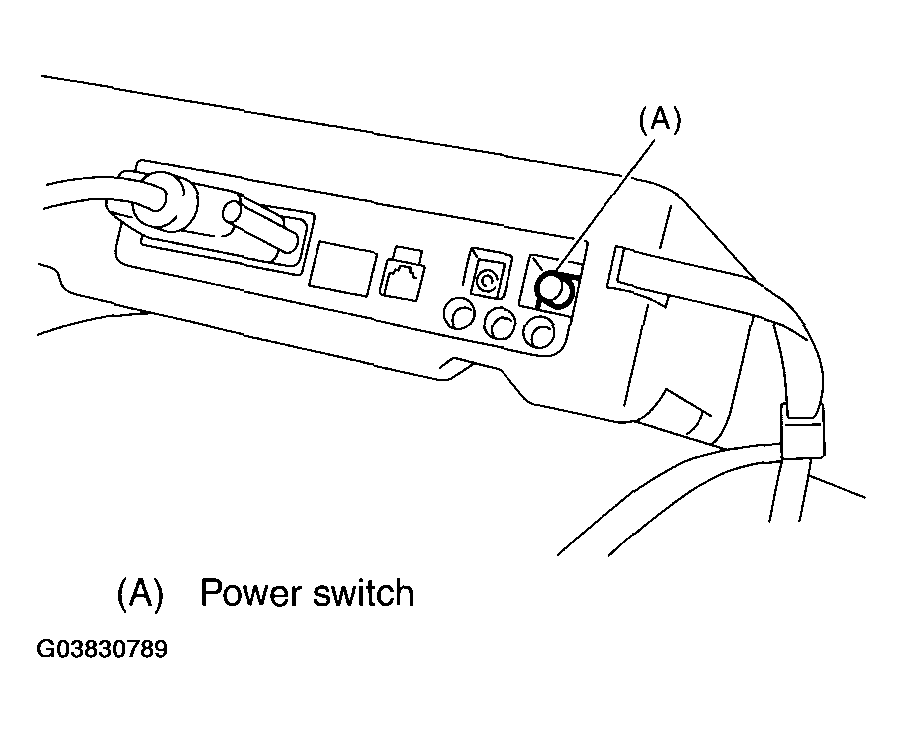

Fig 5: Identifying Select Monitor Switch
Courtesy of SUBARU OF AMERICA, INC.
On the << Main Menu>> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu>> display screen, select the {Engine} and press the [YES] key.
Press the [YES] key after the information of engine type was displayed.
On the << Engine Diagnosis>> screen, select the {D Check} and press the [YES] key.
When the "Perform D Check?" is shown on the screen, press the [YES] key.
Perform subsequent procedures as instructed on the display screen.
- If trouble still remains in the memory, the corresponding DTC appears on the display screen.
NOTE:
- For detailed operation procedure, refer to the generic scan tool instruction cards, refer to the SUBARU SELECT MONITOR OPERATION MANUAL .
- For details concerning DTCs, refer to the List of Diagnostic Trouble Code (DTC).
  < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
- Release the parking brake.
- The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis system.
