How To Use OBD-II General Scan Tool

Prepare a general scan tool (OBD-II general scan tool) required by SAE J1978.
Open the cover and connect the OBD-II general scan tool to the data link connector located in the lower portion of the instrument panel (on the driver's side).

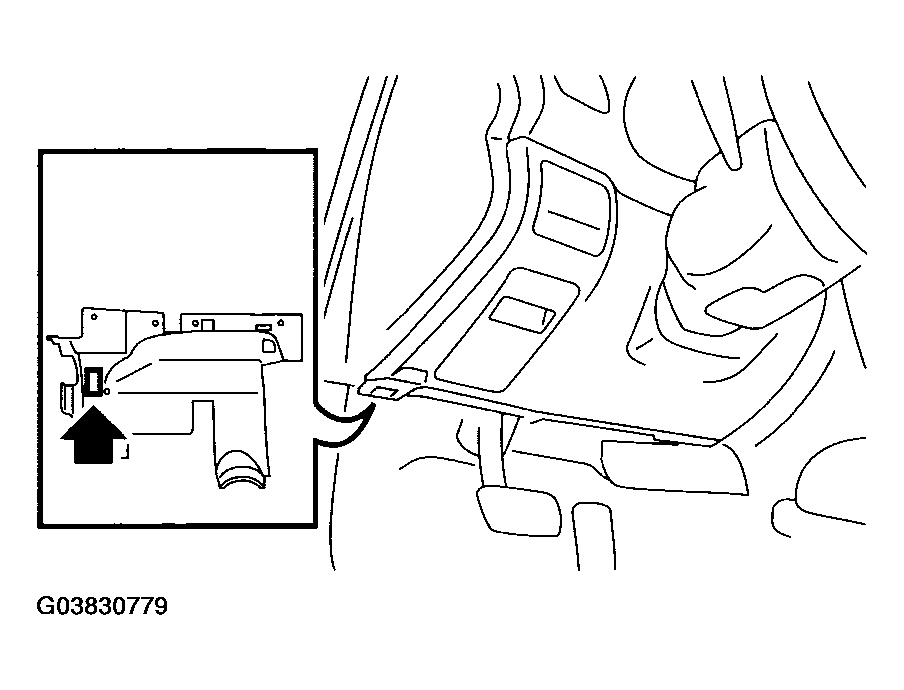

Fig 1: Locating Data Link Connector
Courtesy of SUBARU OF AMERICA, INC.
Using the OBD-II general scan tool, call up DTC and freeze frame data.
OBD-II general scan tool functions consist of:
1. MODE $01: Current powertrain diagnostic data
2. MODE $02: Powertrain freeze frame data
3. MODE $03: Emission-related powertrain DTC
4. MODE $04: Clear/Reset emission-related diagnostic information

Read out data according to repair procedures. (For detailed operation procedure, refer to the generic scan tool instruction cards, refer to the OBD-II general scan tool instruction manual .)

NOTE: For details concerning DTCs, refer to the List of Diagnostic Trouble Code (DTC). < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
