Non-Turbo Model

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Insert outer joint into hub splines.
CAUTION: Be careful not to damage inner oil seal lip and tone wheel.
Using ST1 and ST2, pull drive shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER

ST2 927390000 ADAPTER

CAUTION: Do not hammer drive shaft when installing it.

Fig 1: Installing Drive Shaft (NON-TURBO Model)
Courtesy of SUBARU OF AMERICA, INC.
Tighten axle nut temporarily.
Install inner joint on transmission spindle and drive spring pin into place.
CAUTION: When front drive shaft is removed, replace spring pin with new one.

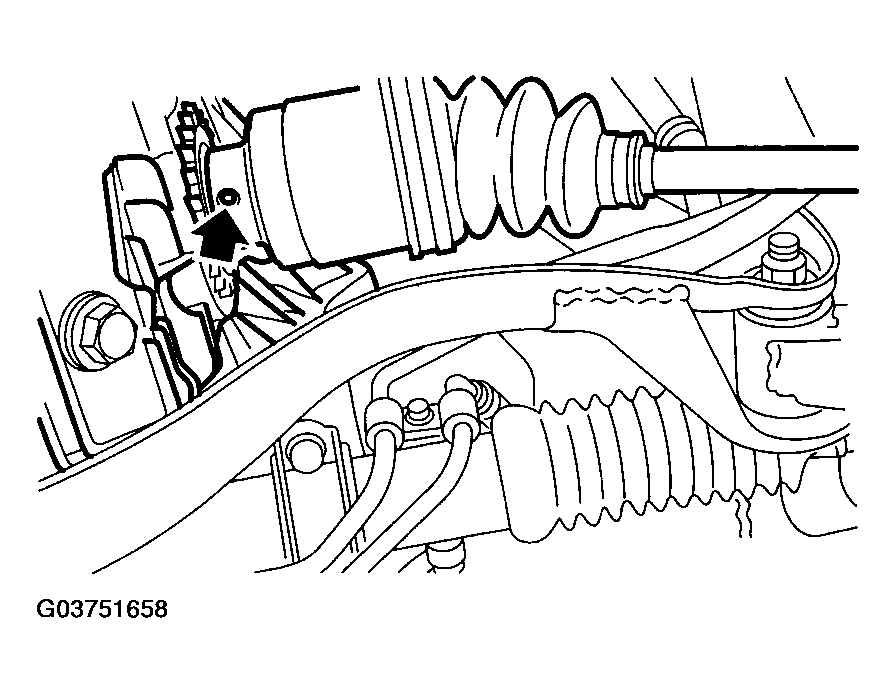

Fig 2: Installing Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Connect transverse link to housing.
Tightening torque (self-locking nut):

49 N.m (5.0 kgf-m, 36 ft-lb)

CAUTION: Replace the removed self-locking nut with new one.
Install stabilizer bracket.
While depressing brake pedal to prevent front drive shaft from turning, tighten axle nut.
Tightening torque:

220 N.m (22 kgf-m, 162 ft-lb)
CAUTION:
- Replace the removed axle nut with new one.
- Always tighten axle nut before installing wheel on vehicle.
- Be sure to tighten axle nut to specified torque. Do not overtighten it as this may damage wheel bearing.
After tightening axle nut, lock it securely.
