Non-TURBO model

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

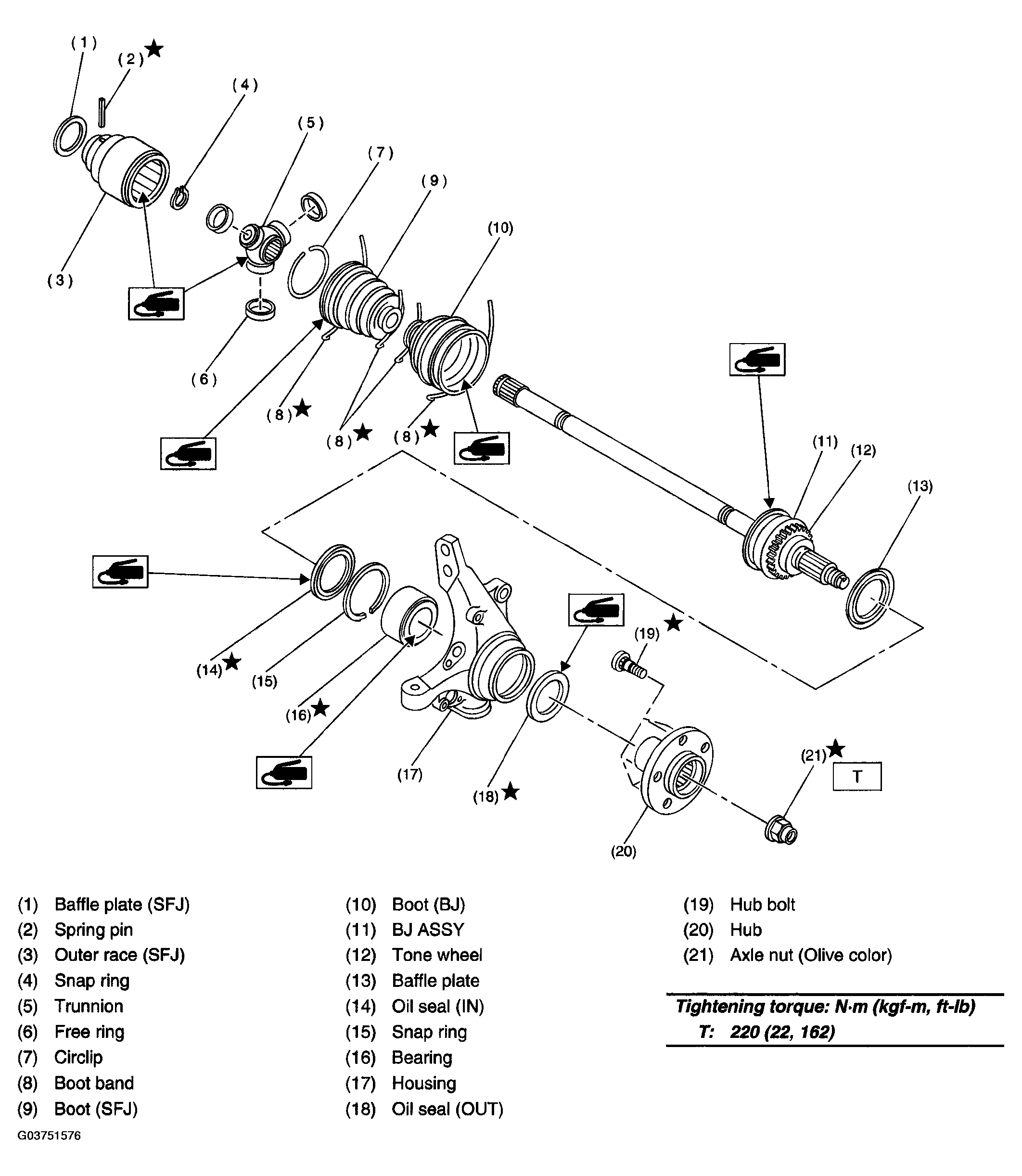

Fig 1: Front Axle Shaft Components (Non-TURBO Model) With Torque Specifications
G03751576Courtesy of SUBARU OF AMERICA, INC.
