Propeller Shaft: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Insert sleeve yoke into transmission and attach center bearing to vehicle body.
Tightening torque:

52 N.m (5.3 kgf-m, 38.3 ft-lb)

Fig 1: Attaching Center Bearing To Vehicle Body
Courtesy of SUBARU OF AMERICA, INC.
Align matching marks and connect flange yoke and rear differential.
Tightening torque:

31 N.m (3.2 kgf-m, 23.1 ft-lb)

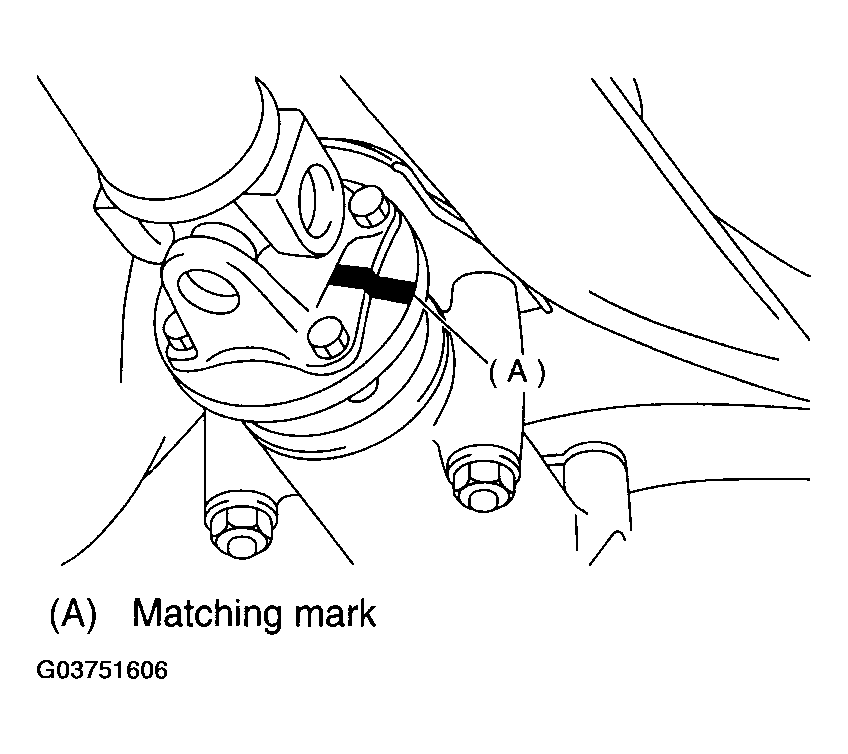

Fig 2: Aligning Matching Marks And Connecting Flange Yoke And Rear Differential
Courtesy of SUBARU OF AMERICA, INC.
Install heat shield cover.
Install center exhaust pipes.
Install rear exhaust pipe and muffler.
