Front Sub Sensor: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
Remove front bumper. < Ref. to REMOVAL , Front Bumper . >
Disconnect connector from front sub sensor.

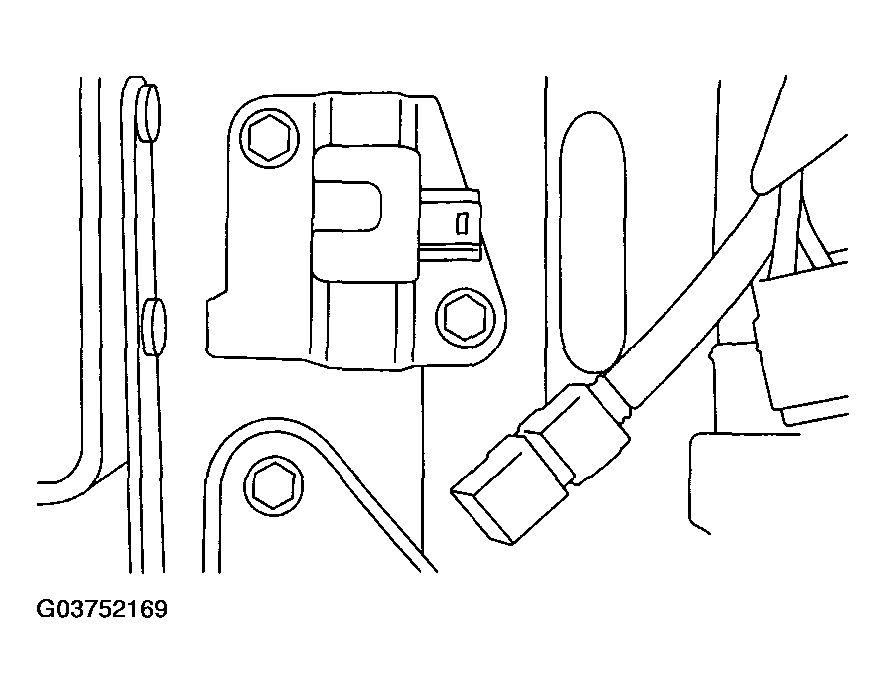

Fig 1: Disconnecting Connector From Front Sub Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove front sub sensor (A).

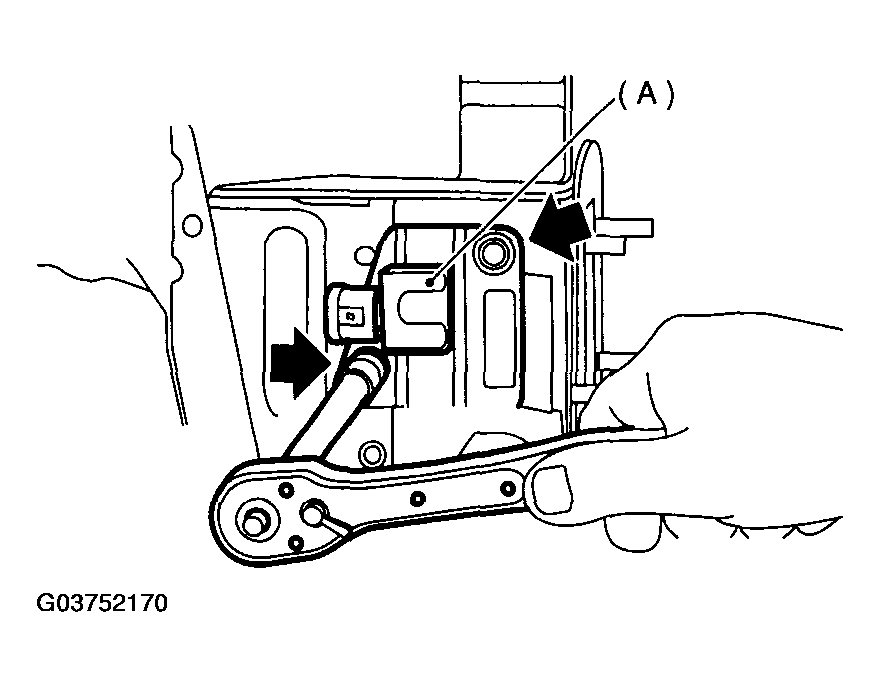

Fig 2: Removing Front Sub Sensor
Courtesy of SUBARU OF AMERICA, INC.
