Front Bushing

Assemble in the reverse order of disassembly.

CAUTION: Install the front bushing in proper direction as shown in Fig 1 .

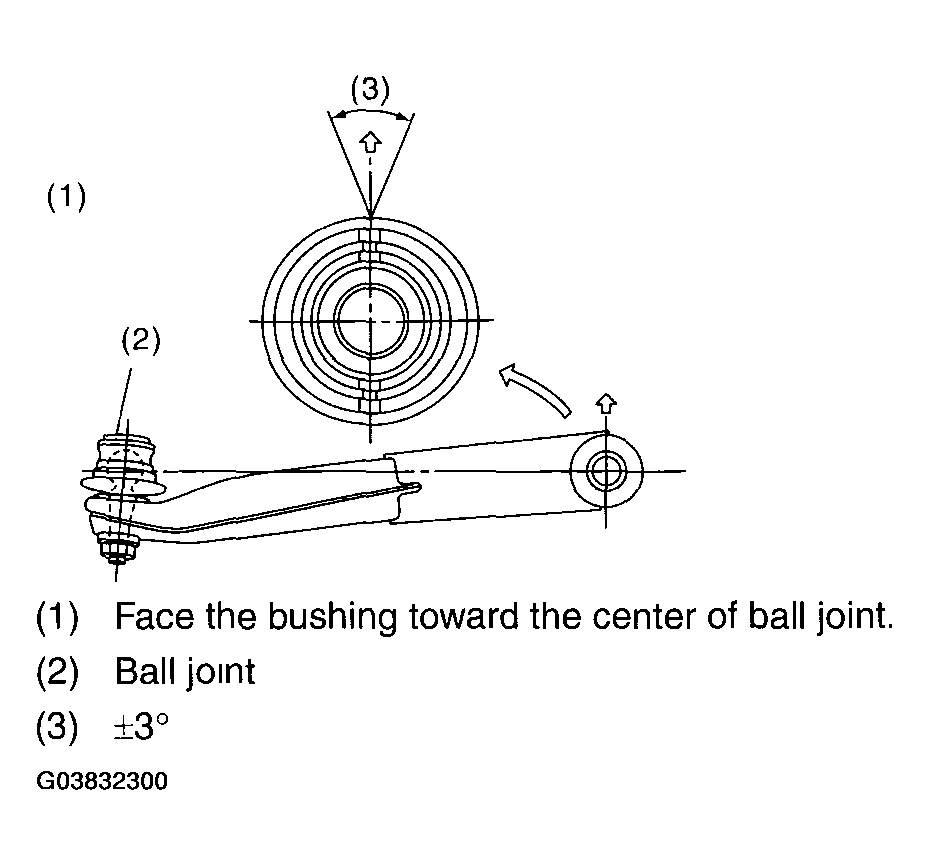

Fig 1: Installing Front Bushing
G03832300Courtesy of SUBARU OF AMERICA, INC.
