ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Inspection: Notes

1. Check the connected and fixed condition of connector.
2. Check the mark used for ABSCM&H/U identification.

For mark, refer to SPECIFICATION , General Description.

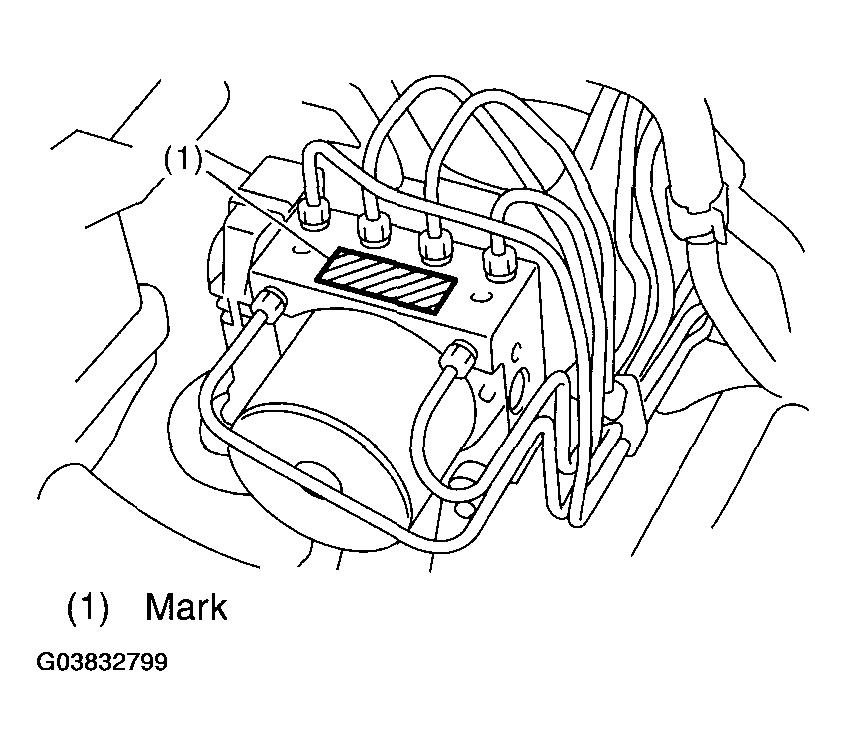

Fig 1: Identifying ABSCM&H/U Specification Marks

Courtesy of SUBARU OF AMERICA, INC.
