How To Use SUBARU Select Monitor

Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

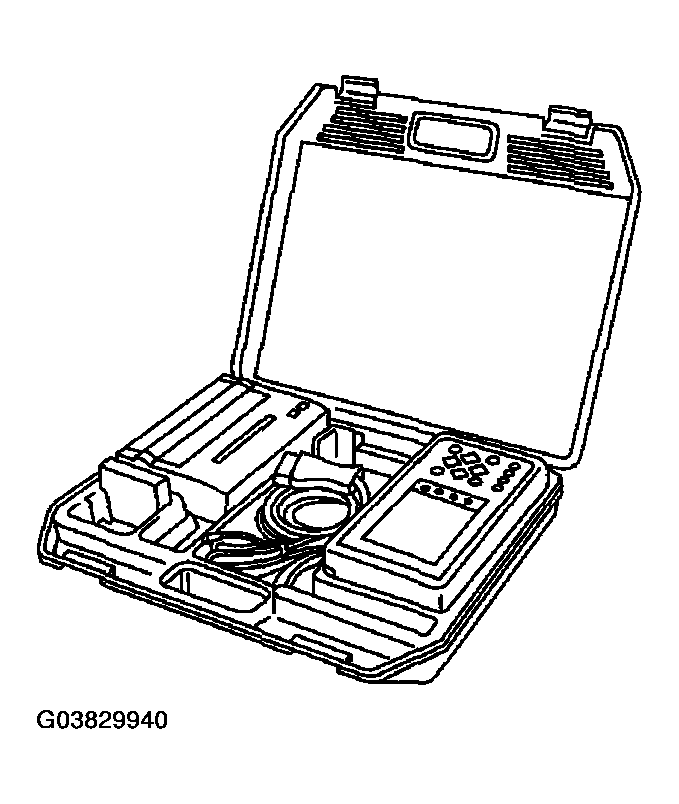

Fig 1: Identifying Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect the diagnosis cable to Subaru Select Monitor.
Insert the cartridge to Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

Fig 2: Inserting Cartridge To Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to data link connector.
1. Data link connector is located in the lower portion of the instrument panel (on the driver's side).

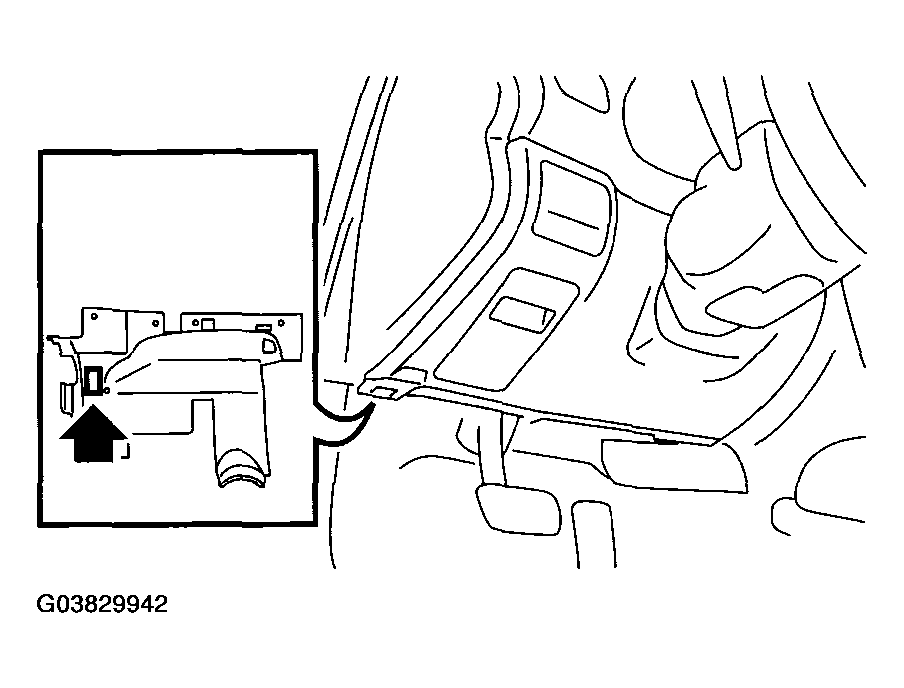

  Fig 3: Identifying Data Link Connector Location
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the diagnosis cable to data link connector.
CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.
Turn the ignition switch to ON (engine OFF) and turn Subaru Select Monitor switch to ON.

Fig 4: Identifying Power Switch
Courtesy of SUBARU OF AMERICA, INC.
Using the Subaru Select Monitor, call up DTC and data, then record them.
