Ignition Key Lock: Replacement

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove the steering column. < Ref. to REMOVAL , Tilt Steering Column . >
Secure the steering column in a vise. Remove the bolt with a drill.

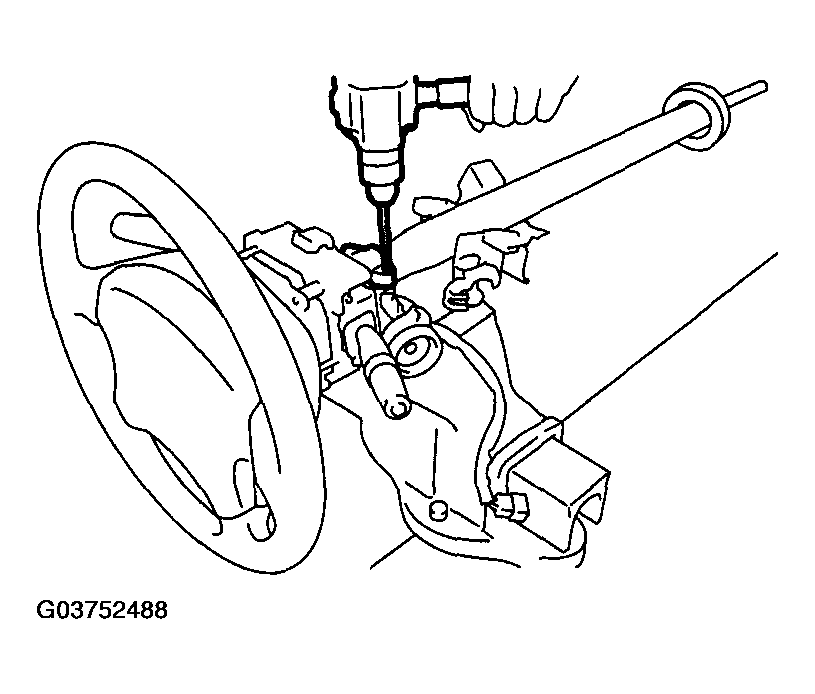

Fig 1: Removing Bolt With Drill
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition key lock.
Use a new torn bolt. Tighten the torn bolt to the end of the thread.

Fig 2: Removing Ignition Key Lock
Courtesy of SUBARU OF AMERICA, INC.
