Integrated Module: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL . >
  3. Remove the nut, then remove the integrated module while disconnecting the connector.

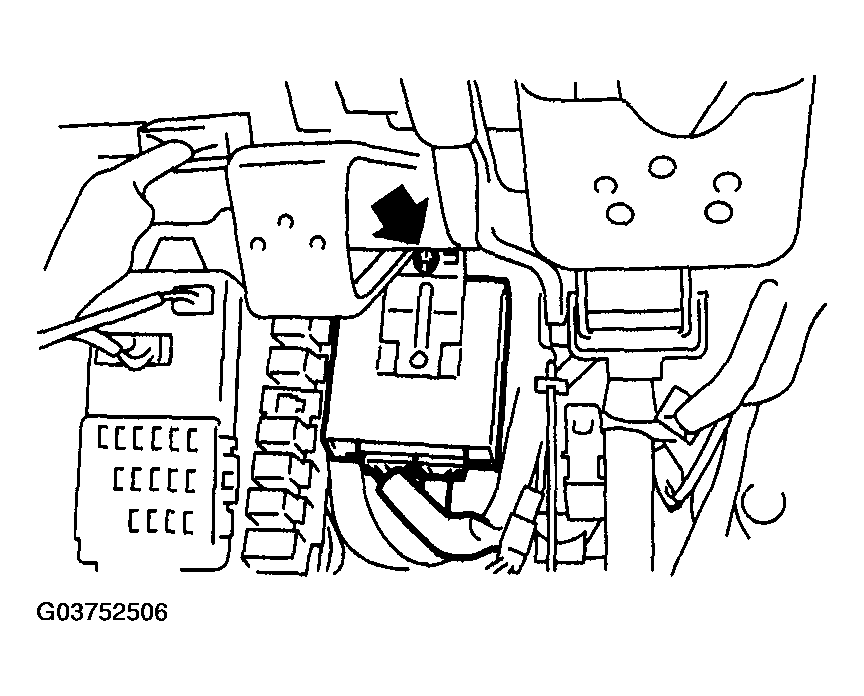

    Fig 1: Removing Integrated Module
    G03752506Courtesy of SUBARU OF AMERICA, INC.
