Control Module I/O Signal: Wiring Diagram

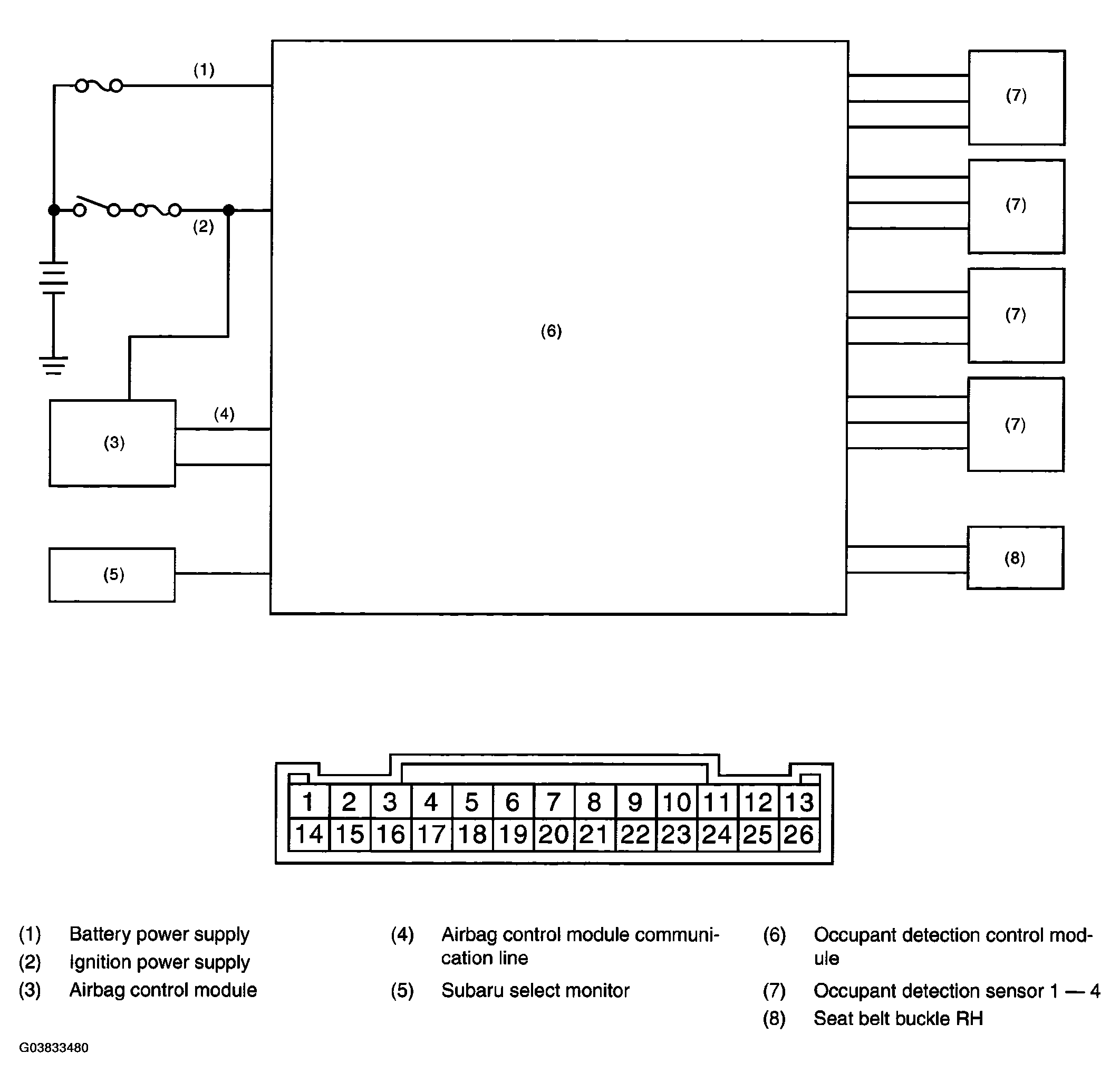

Fig 1: Wiring Diagram - Occupant Detection System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
