Sensor Data Output

  1. On the << Occupant Sensing System >> main menu display screen, select the {Sensor Data Output} and press the [YES] key.
    NOTE: Do not touch the vehicle within 20 seconds after pressing the [YES] key. Output value may be changed when sensing the pitching and vibration of the vehicle while reading sensor data output.
  2. Sensor output will be displayed in the (*****). Press the [YES] key to move to the main menu.

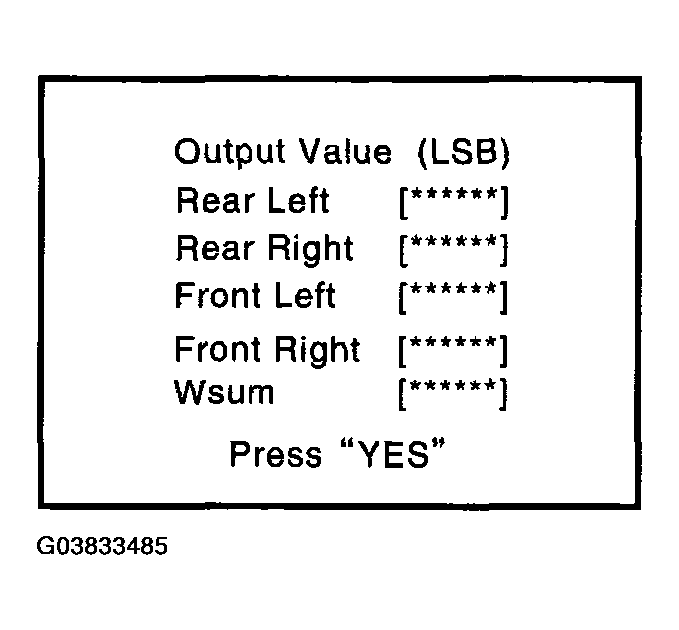

Fig 1: Displaying Sensor Output
G03833485Courtesy of SUBARU OF AMERICA, INC.
