VDC Control Module and Hydraulic Control Unit (VDCCM/U): Inspection: Notes

1. Check the connected and fixed condition of connector.
2. Check the mark used for VDCCM&H/U identification.

Refer to "SPECIFICATION" for mark. < Ref. to , SPECIFICATION , General Description. >

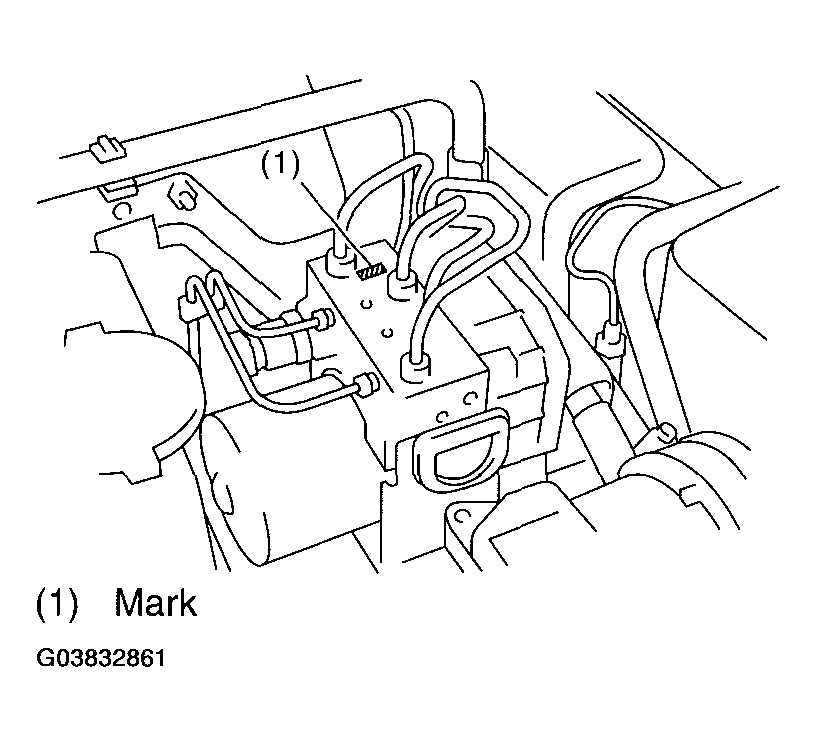

Fig 1: Locating VDCCM&H/U Identification Marks

Courtesy of SUBARU OF AMERICA, INC.
