Conditions For VDC Sequence Control

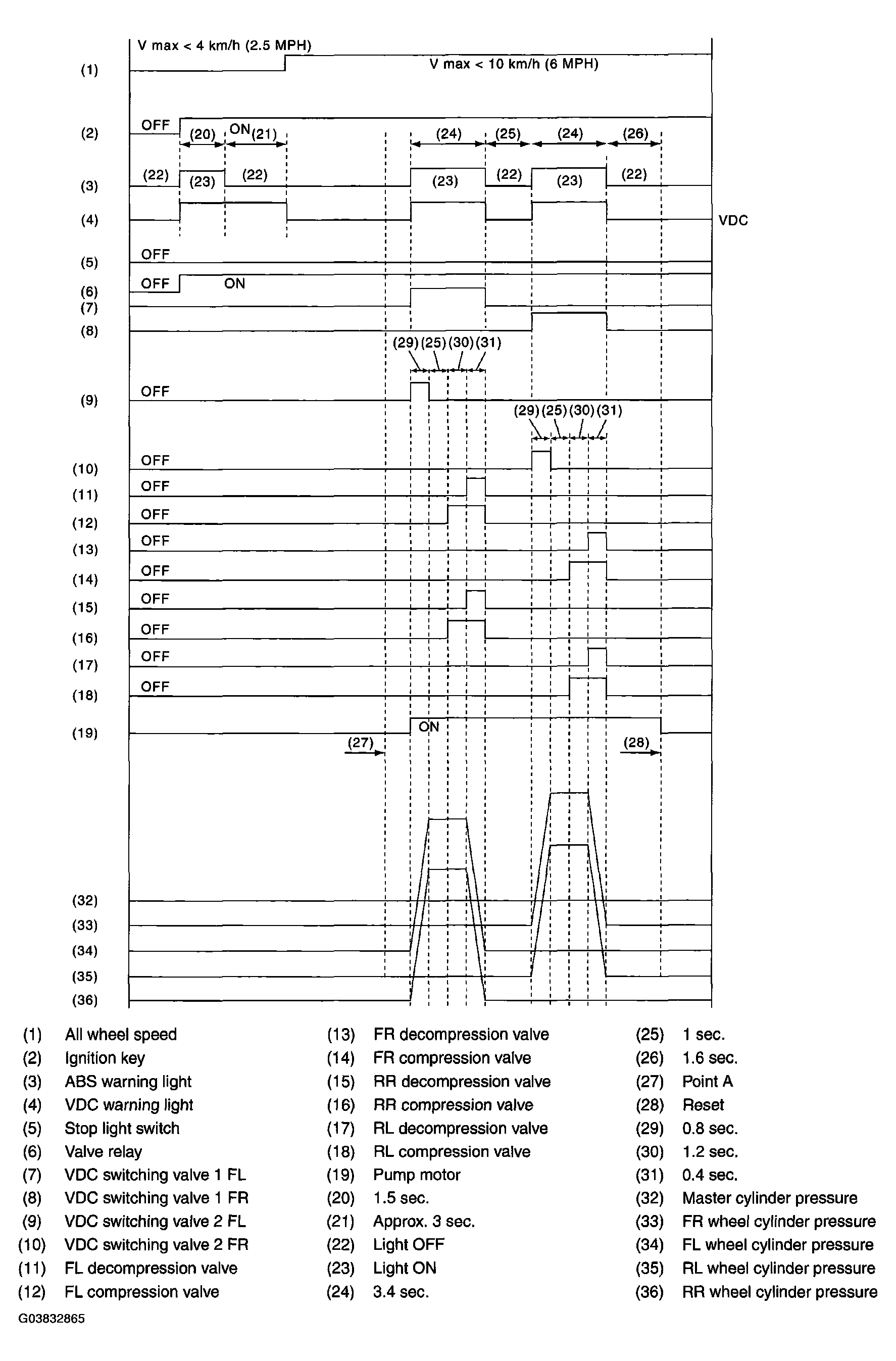

Fig 1: Identifying Conditions For VDC Sequence Control
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts from point A.
Courtesy of SUBARU OF AMERICA, INC.
