ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Installation

Install the ABSCM&H/U bracket.
Tightening torque:

33 N.m (3.3 kgf-m, 24 ft-lb)
Install the ABSCM&H/U aligning the groove of damper on ABSCM&H/U side with the pawl of bracket.
NOTE: Check the identification mark of ABSCM&H/U.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

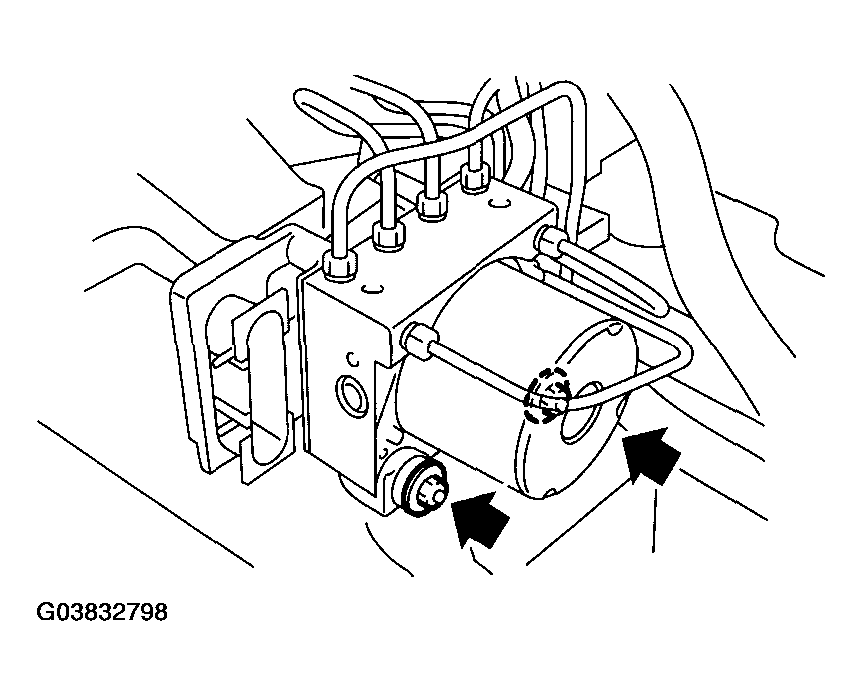

Fig 1: Installing ABSCM&H/U
Courtesy of SUBARU OF AMERICA, INC.
Connect the brake pipes to their correct ABSCM&H/U positions.
Tightening torque:

15 N.m (1.5 kgf-m, 10.8 ft-lb)
Using a harness clip, secure the ABSCM&H/U harness to bracket.
Connect the connector to ABSCM&H/U.
NOTE:
- Be sure to remove all foreign matters from inside the connector before connecting.
- Ensure the ABSCM&H/U connector is securely locked.
Bleed air from the brake system.
