Switch Assembly Operation

NOTE: Test period of each test must be within short time (3 - 5 seconds).

Vacuum test
Disconnect the harness from terminal M and connect it as shown in Fig 1 . Make sure the pinion gear sticks out.

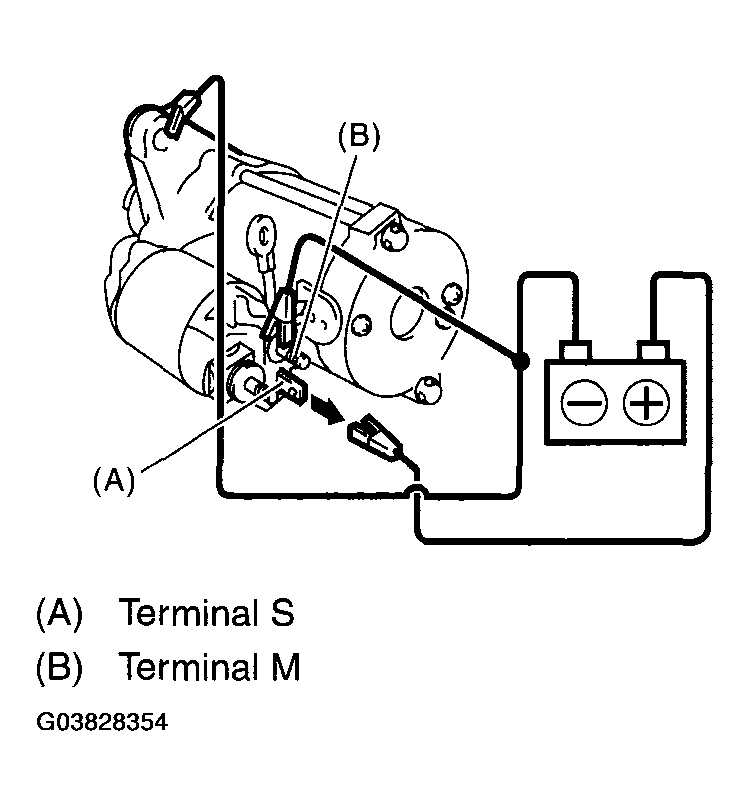

Fig 1: Performing Vacuum Test
Courtesy of SUBARU OF AMERICA, INC.
Hold test
Make sure the pinion gear remains stick out even after disconnecting terminal M in the above condition.

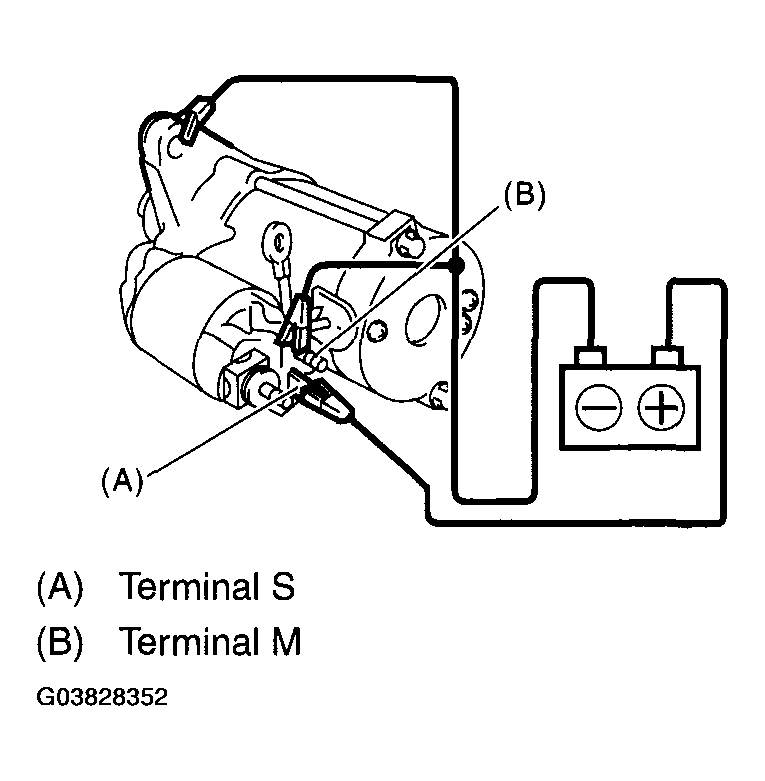

Fig 2: Performing Hold Test
Courtesy of SUBARU OF AMERICA, INC.
Return test

Connect the positive terminal to terminal S and the negative terminal to terminal M and starter body to pull the pinion gear at the main contact point. Make sure the pinion gear returns to its original position when the terminal S is disconnected.

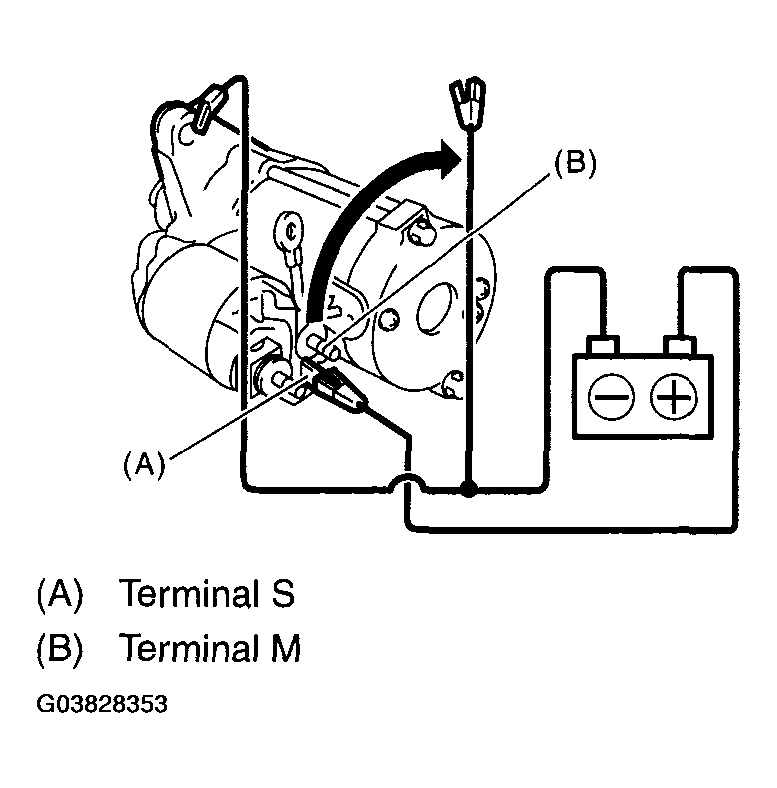

Fig 3: Performing Return Test

Courtesy of SUBARU OF AMERICA, INC.
