Front Hood Lock And Remote Openers

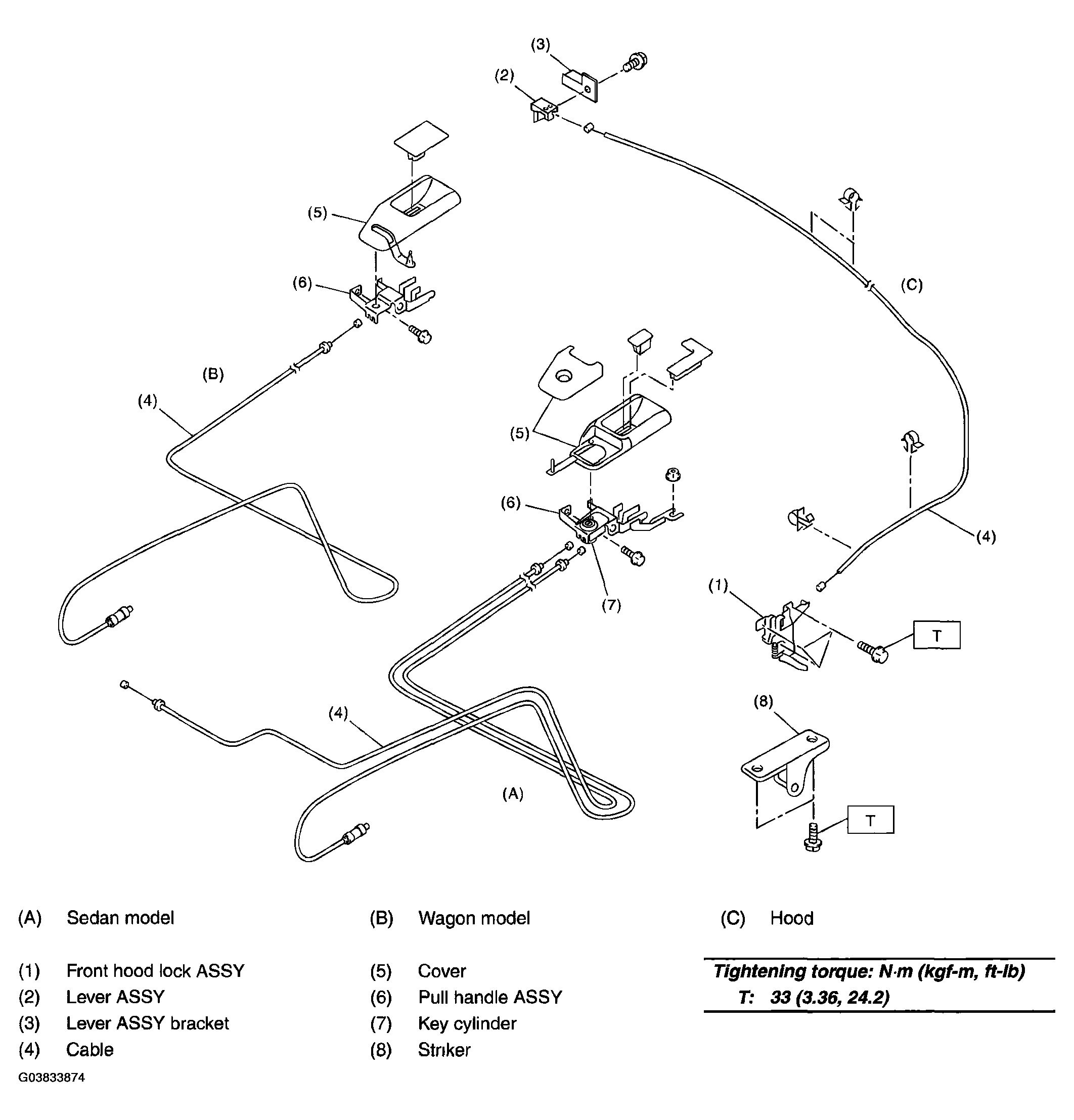

Fig 1: Exploded View Of Front Hood Lock And Remote Openers
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
