Conditions For Abs Sequence Control

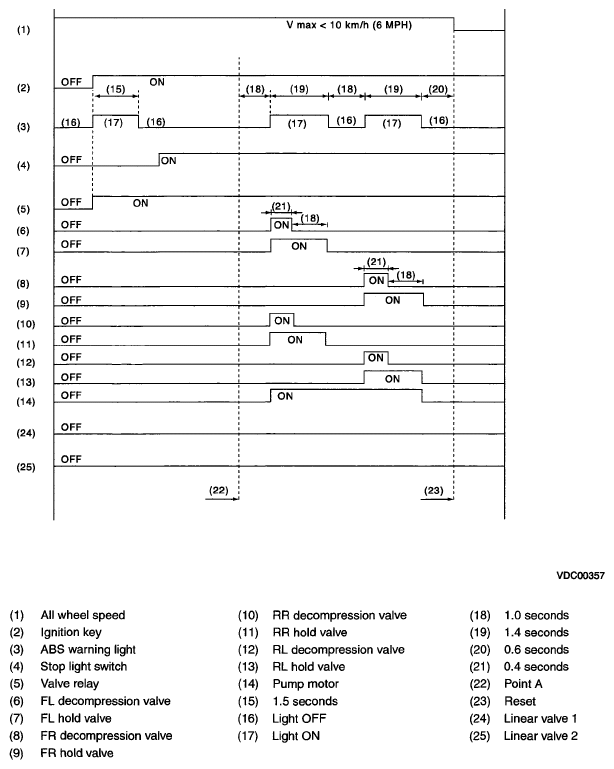

Fig 1: Conditions For ABS Sequence Control
G05032684Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts from point A.
