Reduction Gear With MPT

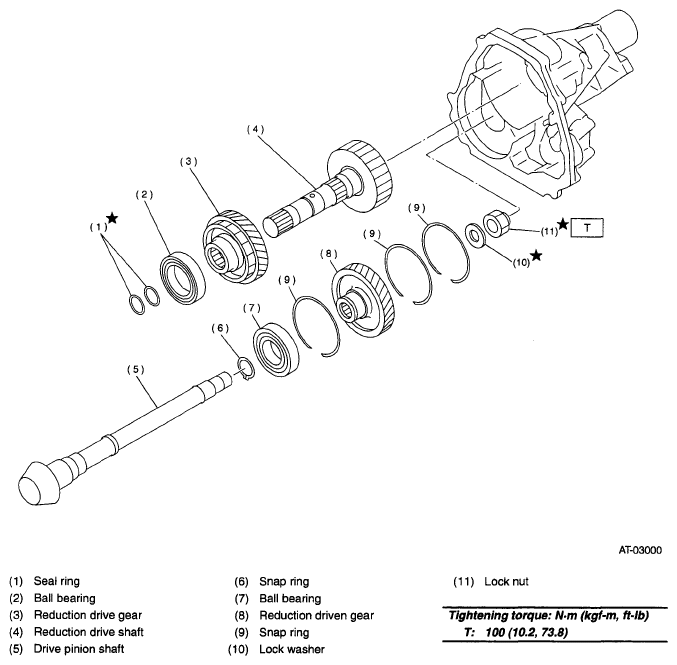

Fig 1: Reduction Gear Replacement Components With MPT And Torque Specifications
G04990214Courtesy of SUBARU OF AMERICA, INC.
