Transmission Case And Control Device

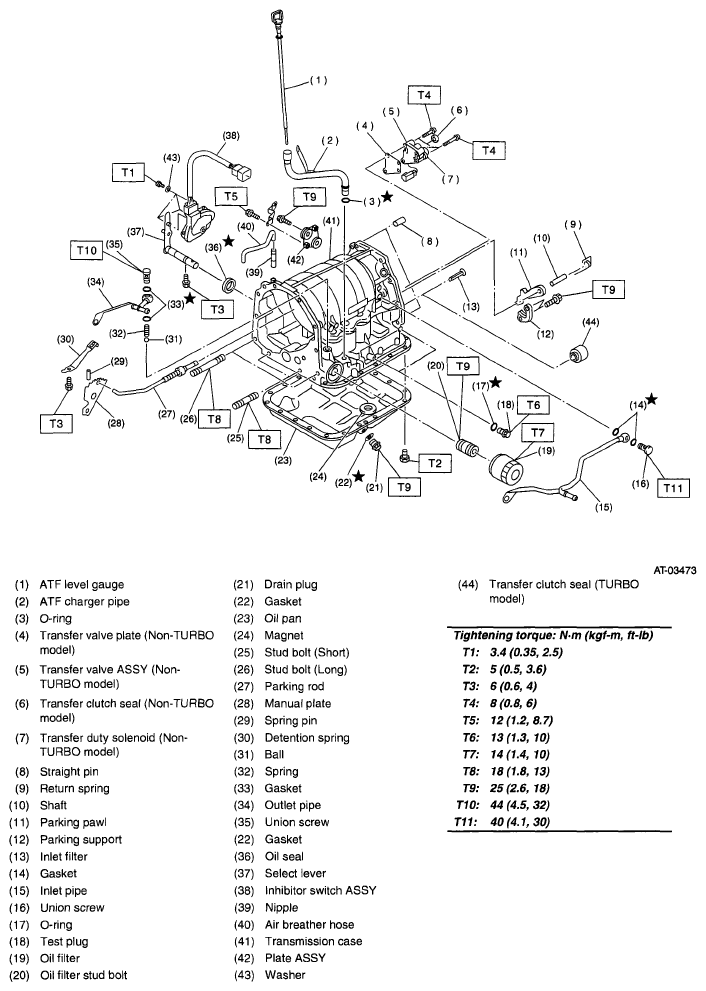

Fig 1: Exploded View Of Transmission Case And Control Device Components With Torque Specifications
G04990209Courtesy of SUBARU OF AMERICA, INC.
