Transmission Mounting

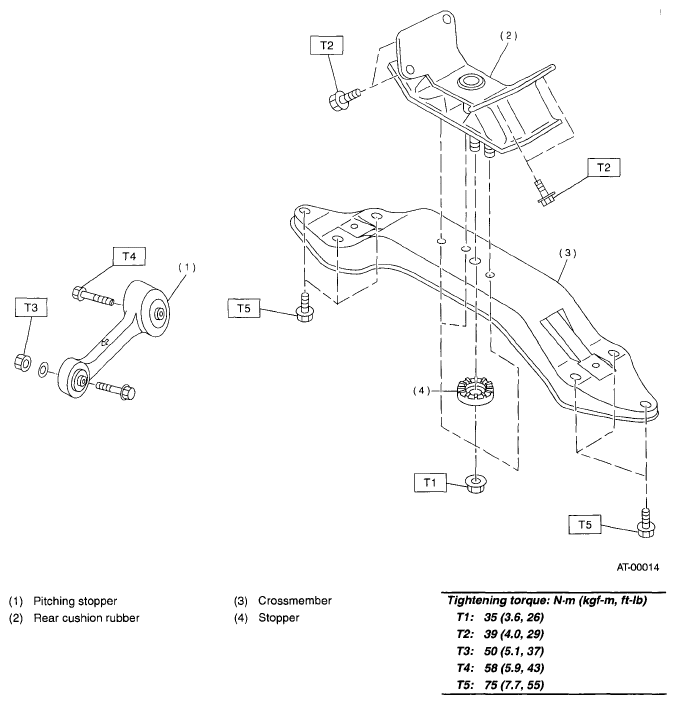

Fig 1: Transmission Mounting Replacement Components With Torque Specifications
G04990219Courtesy of SUBARU OF AMERICA, INC.
