Select Lever Cannot Be Shift Locked

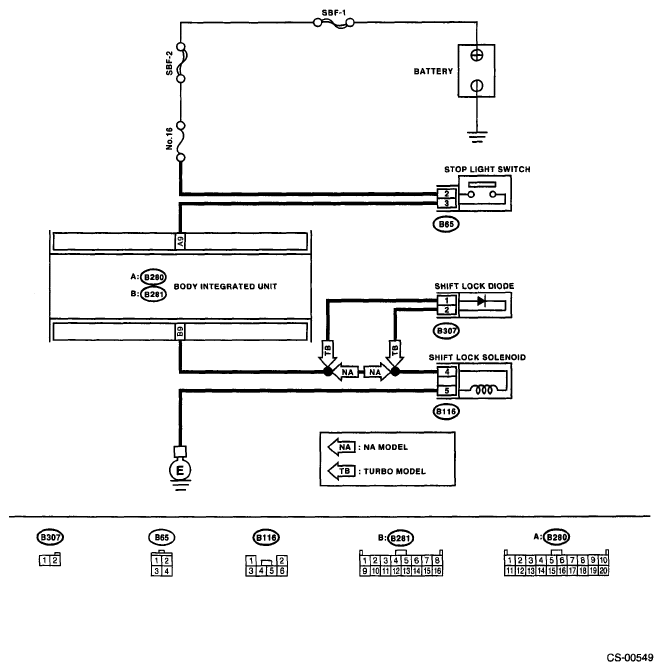

WIRING DIAGRAM:

Fig 1: Select Lever Shift Locked - Wiring Diagram
G04990137Courtesy of SUBARU OF AMERICA, INC.
AT SHIFT LOCK SYSTEM REFERENCE

Step Check Yes No
1 CHECK STOP LIGHT SWITCH.
Depress the brake pedal.
Does the stop light turn on? Go to step 2.  Inspect the stop light system.
2 CHECK HARNESS BETWEEN STOP LIGHT SWITCH AND INTEGRATED MODULE.
  1. Turn the ignition switch to OFF.
  2. Disconnect the integrated module and stop-light switch connector.
  3. Measure the resistance of harness between stop light switch and integrated module.

    Connector & terminal

    (B65) No. 3 - (B280) No. 9:

Is the measured value more than 1 MΩ? Repair the open circuit in harness between integrated module and stop light switch. Go to step 3.
3 CHECK HARNESS BETWEEN STOP LIGHT SWITCH AND INTEGRATED MODULE.
Measure the resistance of harness between stop light switch and chassis ground.
Connector & terminal
(B65) No. 3 - Chassis ground:
Is the measured value less than 1 Ω? Repair the short circuit in harness between integrated module and stop light switch. Go to step 4.
4 CHECK HARNESS BETWEEN INTEGRATED MODULE AND SHIFT LOCK SOLENOID.
  1. Disconnect the shift lock solenoid connector.
  2. Measure the resistance of harness between integrated module and shift lock solenoid.

    Connector & terminal

    (B116) No. 4 - (B281) No. 9:

Is the measured value more than 1 MΩ? Repair the open circuit in harness between integrated module and shift lock solenoid. Go to step 5.
5 CHECK HARNESS BETWEEN INTEGRATED MODULE AND SHIFT LOCK SOLENOID.
Measure the resistance of harness between shift lock solenoid and chassis ground.
Connector & terminal
(B116) No. 4 - Chassis ground:
Is the measured value less than 1 Ω? Repair the short circuit in harness between integrated module and shift lock solenoid. Go to step 6.
6 CHECK HARNESS BETWEEN SHIFT LOCK SOLENOID AND CHASSIS GROUND.
Measure the resistance of harness between shift lock solenoid and chassis ground.
Connector & terminal
(B116) No. 5 - Chassis ground:
Is the measured value more than 1 MΩ? Repair the open circuit in harness between shift lock solenoid and body ground. Go to step 7.
7 CHECK SHIFT LOCK SOLENOID.
Measure the resistance of shift lock solenoid connector terminals.
Terminal
No. 4 - No. 5:
Is the measured value within 20 - 40 Ω? Go to step 8.  Replace the shift lock solenoid.
8 CHECK SHIFT LOCK SOLENOID.
Connect the battery with shift lock solenoid connector terminal and operate solenoid.
Terminal
No. 4 (+) - No. 5 (-):
Does the shift lock solenoid operate properly? Go to step 9.  Replace the shift lock solenoid.
9 CHECK POOR CONTACT.  Is there poor contact in AT shift lock circuit? Repair the poor contact. Replace the integrated module.
