AT Shift Lock System: Schematic

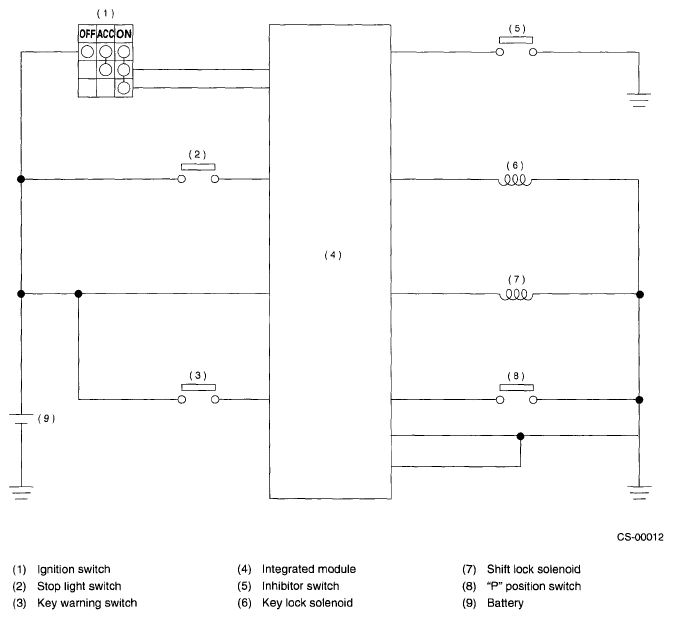

Fig 1: AT Shift Lock Schematic Diagram

G04990135

Courtesy of SUBARU OF AMERICA, INC.
