Electrical Components Location: Location: Engine

MODULE

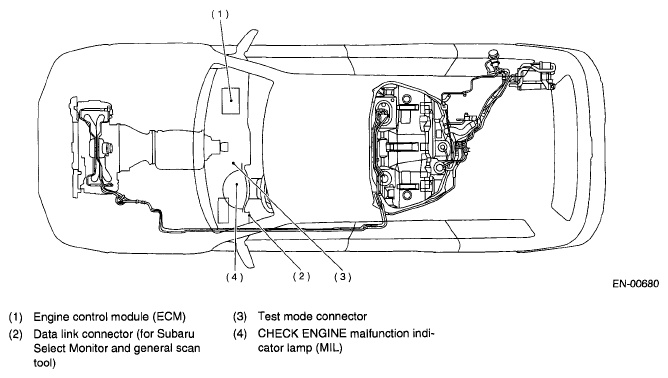

Fig 1: Identifying Electrical Module Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

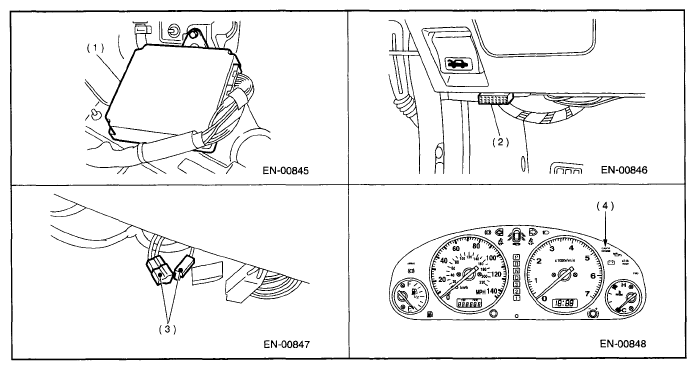

Fig 2: Identifying Electrical Module Components Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
SENSOR

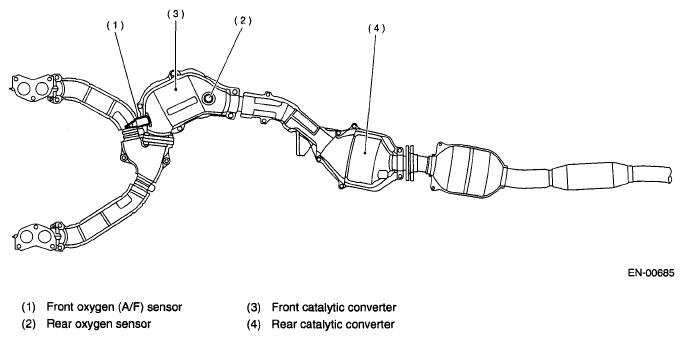

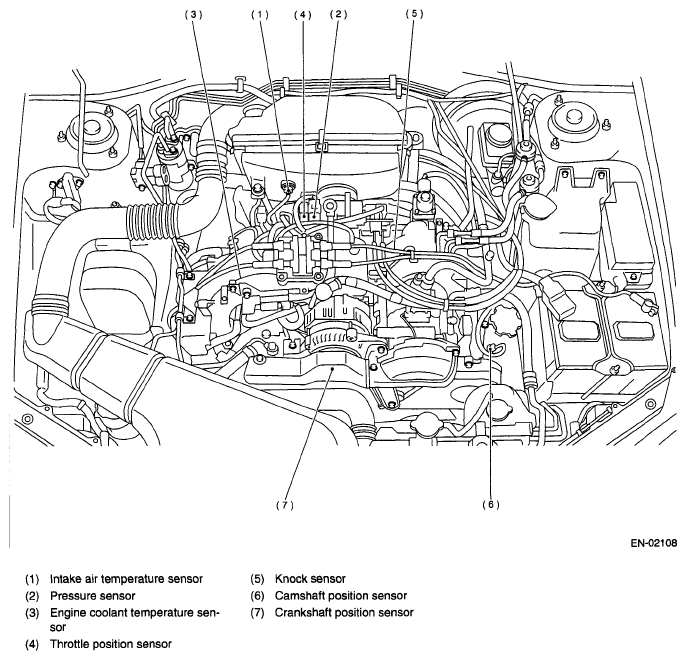

Fig 3: Identifying Sensors Location (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

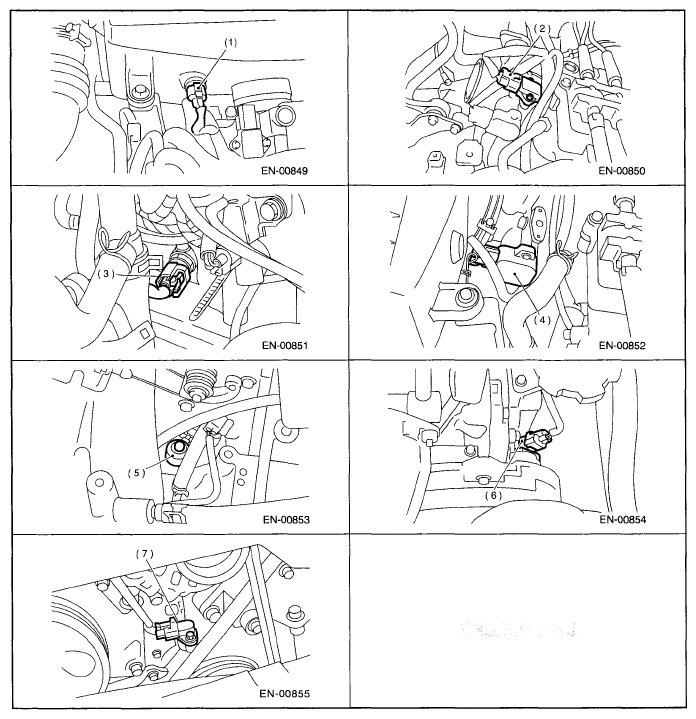

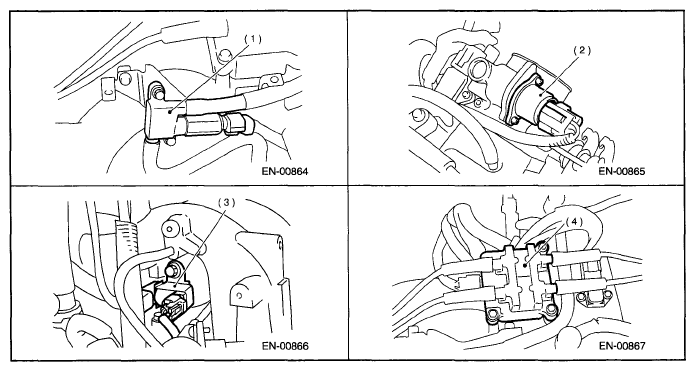

Fig 4: Identifying Sensors Location (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

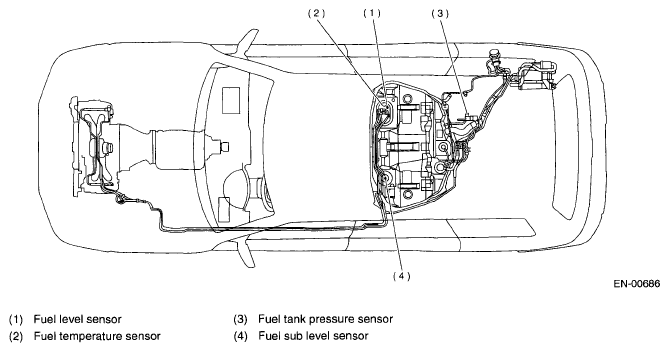

Fig 5: Identifying Sensors Location (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

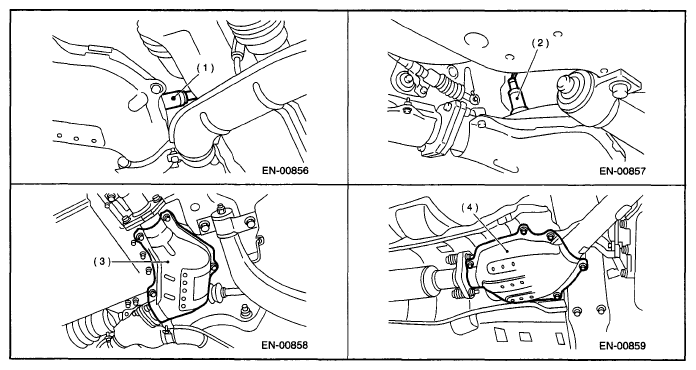

Fig 6: Identifying Sensors Location (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

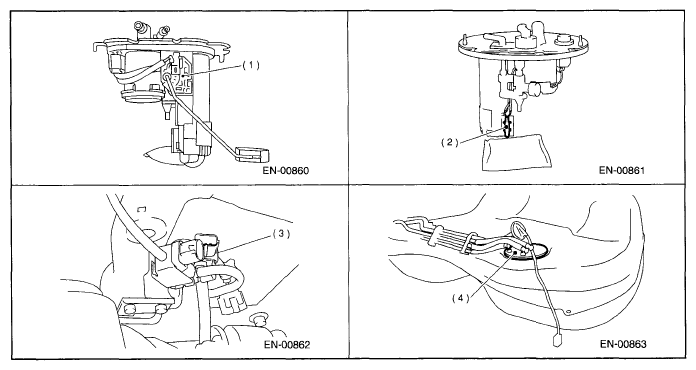

Fig 7: Identifying Sensors Location (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Sensors Location (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

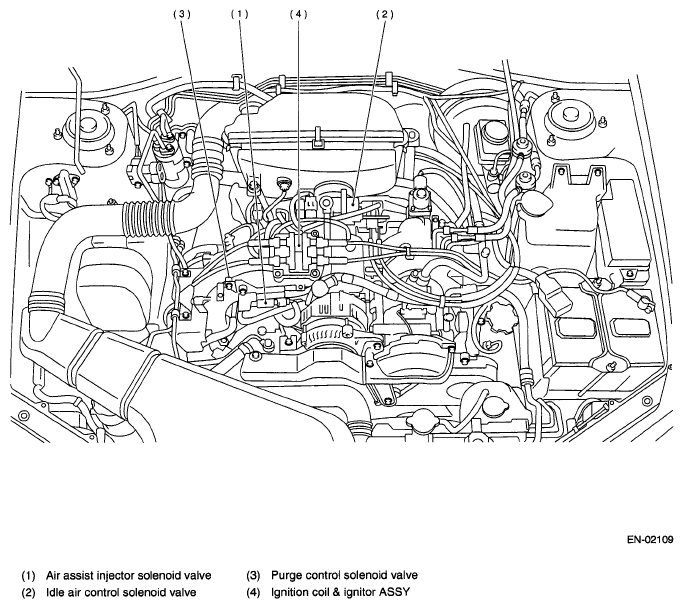

Fig 9: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Parts (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

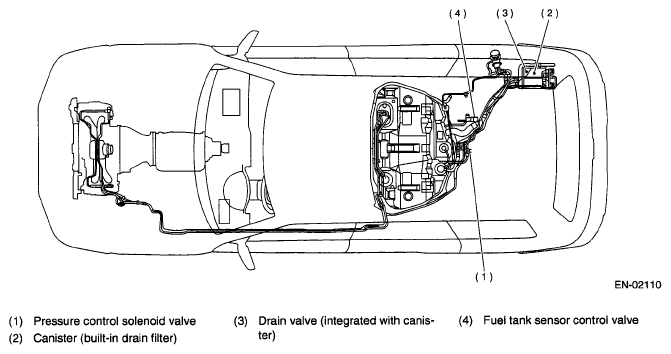

Fig 10: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Parts (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Parts (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

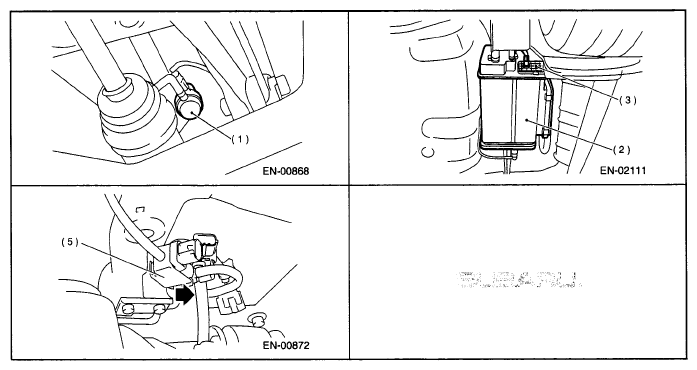

Fig 12: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Parts (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Electrical Components Location (1 Of 2)

G04988732

Courtesy of SUBARU OF AMERICA, INC.

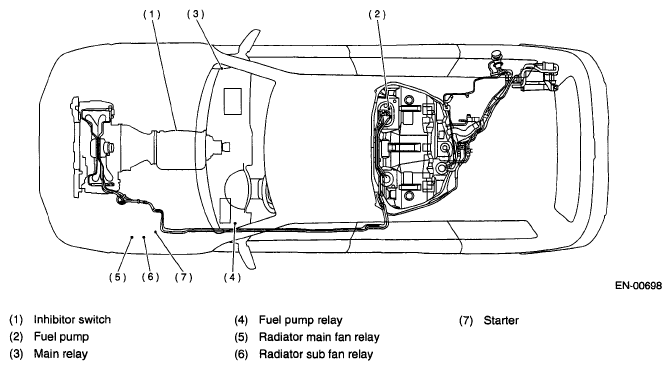

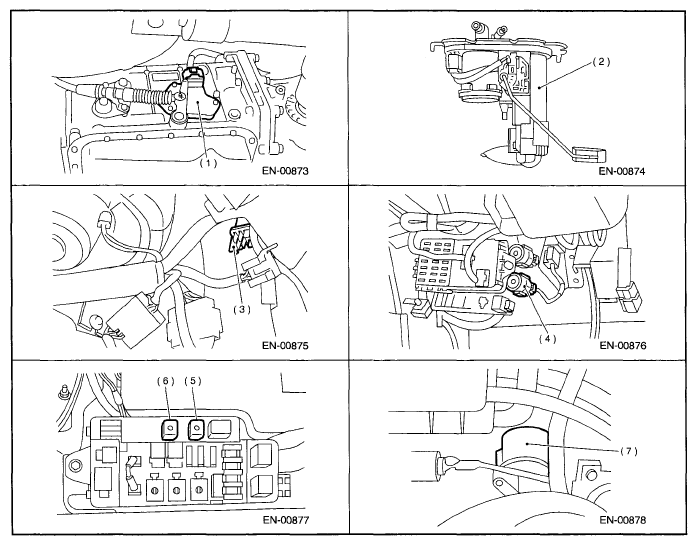

Fig 14: Identifying Electrical Components Location (2 Of 2)

G04988733

Courtesy of SUBARU OF AMERICA, INC.
