At Select Lever (Sport Shift Model)

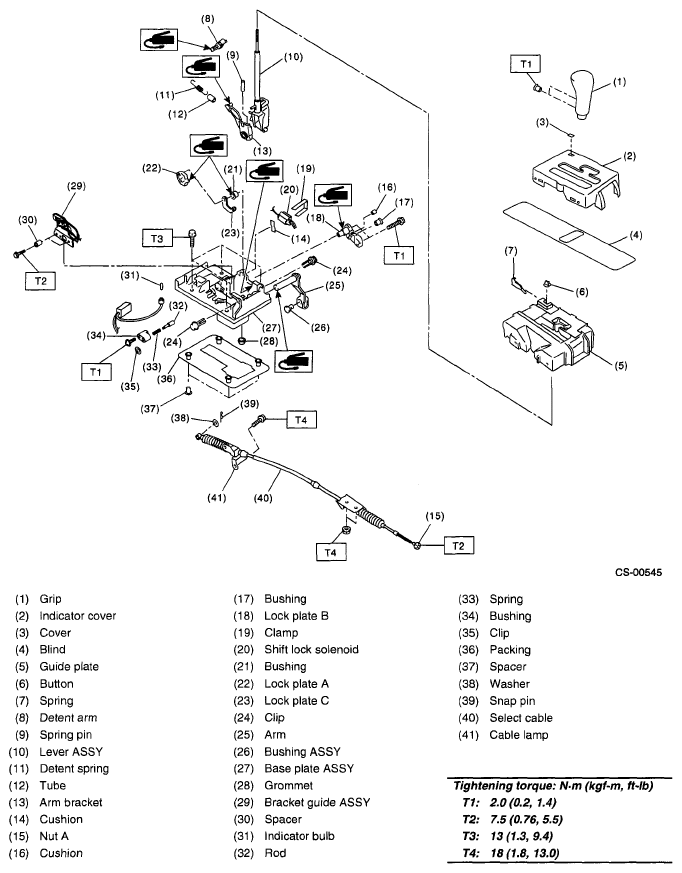

Fig 1: Exploded View Of AT Select Lever Components With Torque Specifications (AT Select Lever (Sport Shift Model))
G04990130Courtesy of SUBARU OF AMERICA, INC.
