Conditions For Abs Sequence Control

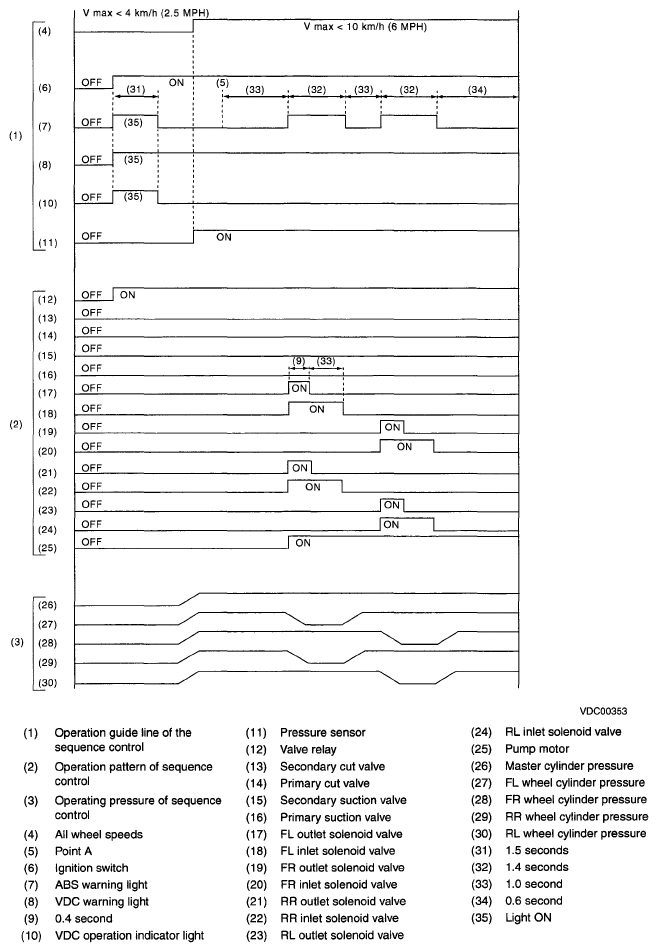

Fig 1: Blinking Pattern Of ABS Sequence Control

G04994874

NOTE: Operation starts from point A.
