VDC Control Module (VDCCM)

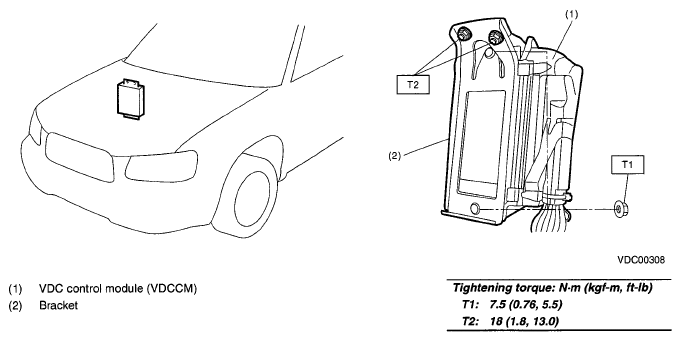

Fig 1: VDC Control Module And Bracket With Torque Specification (VDCCM)

G04994849
