VDC Hydraulic Control Module (VDCH/M)

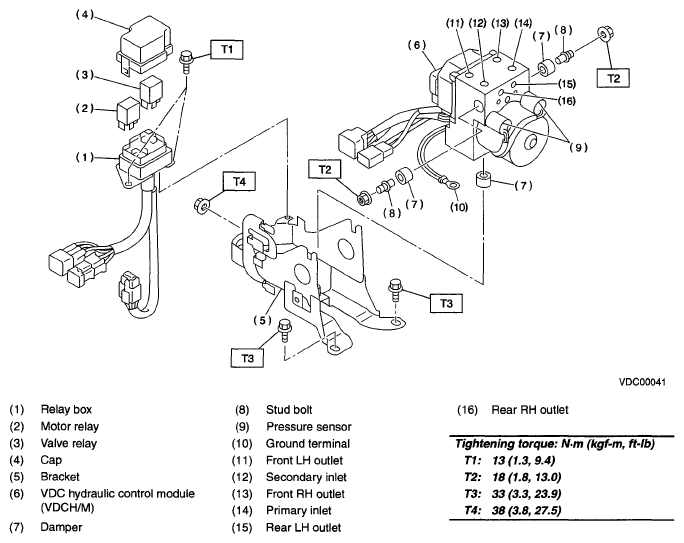

Fig 1: VDC Hydraulic Control Module Replacement Components With Torque Specifications (VDCH/M)
G04994850
CAUTION: Parts other than the valve relay and motor relay cannot be disassembled.
