At Select Lever

WARNING: This page is about a different variant/trim than selected.

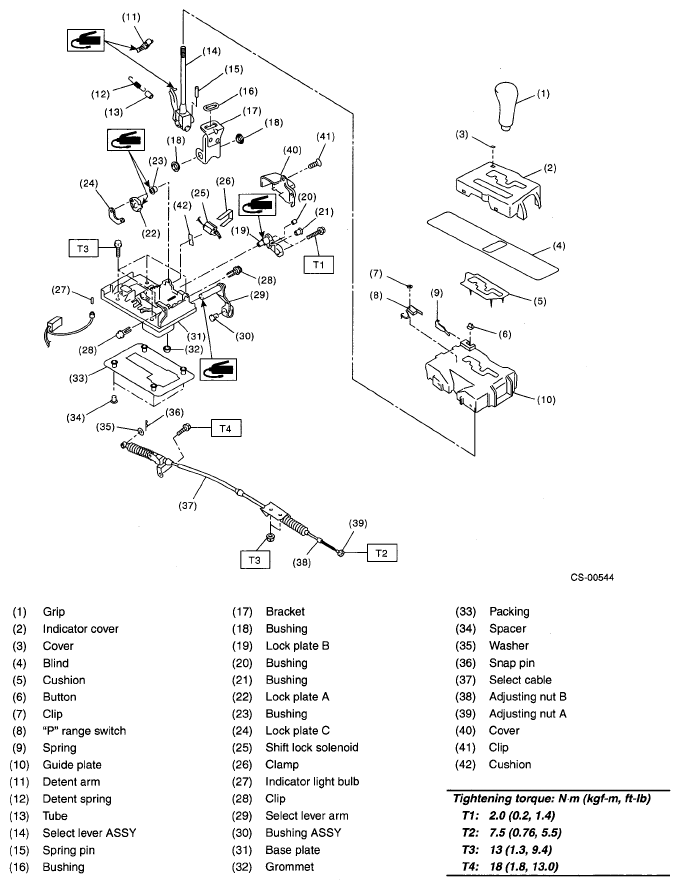

Fig 1: Exploded View Of AT Select Lever Components With Torque Specifications
G05002275Courtesy of SUBARU OF AMERICA, INC.
