OE Harness Connector Repair Kits

Harness Repair Kit

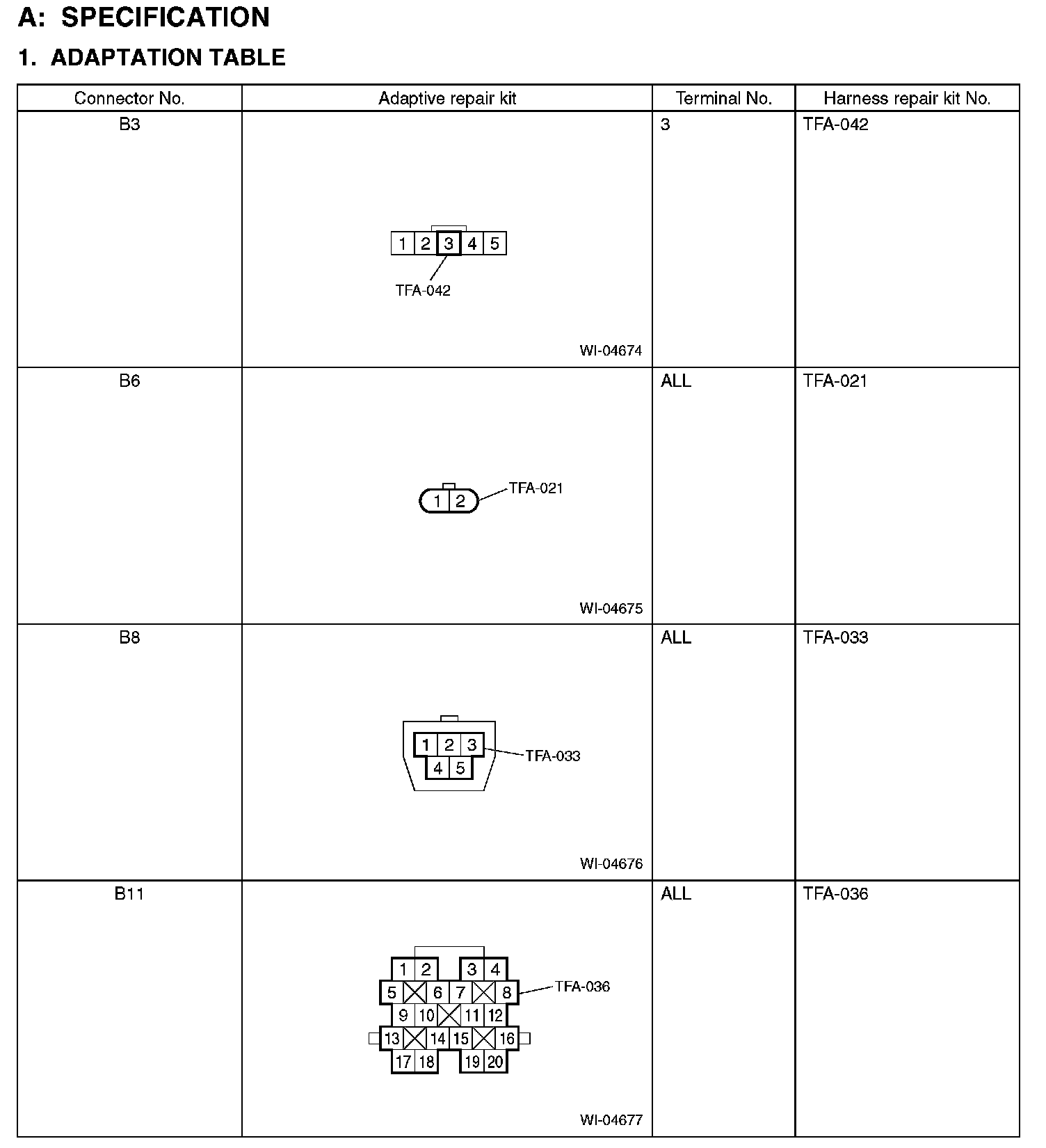

SPECIFICATION

B3-B11:

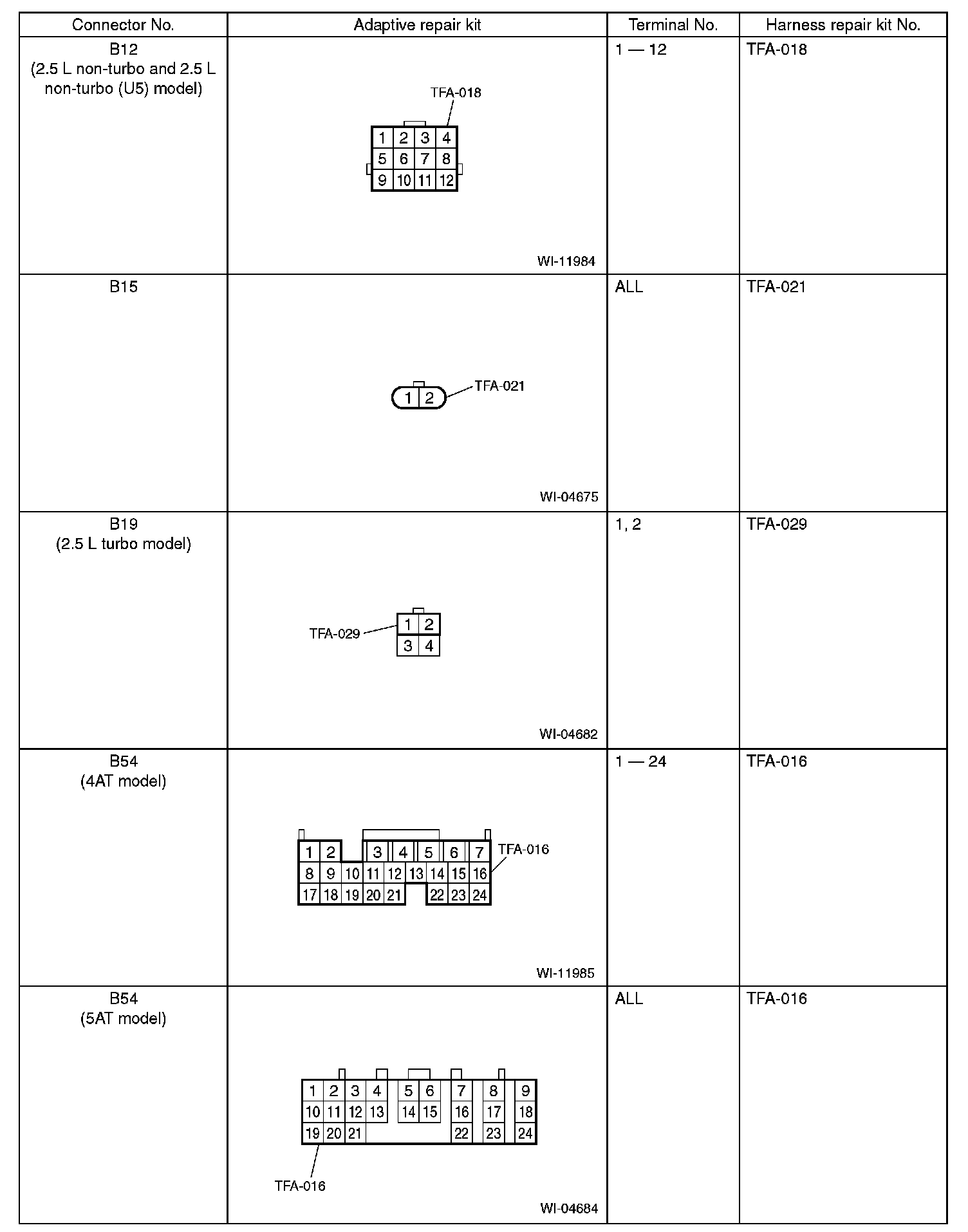

B12-B54:

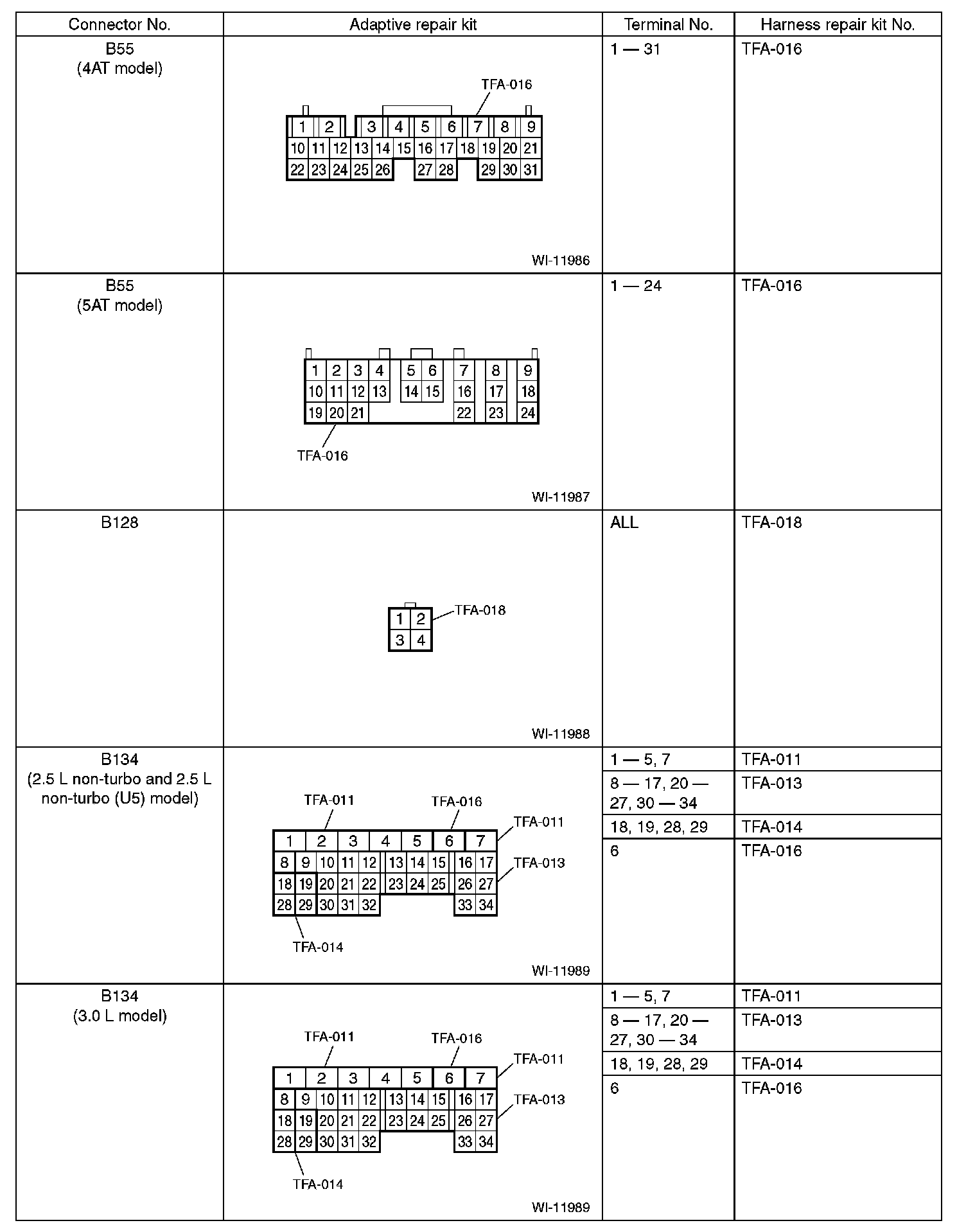

B55-B134:

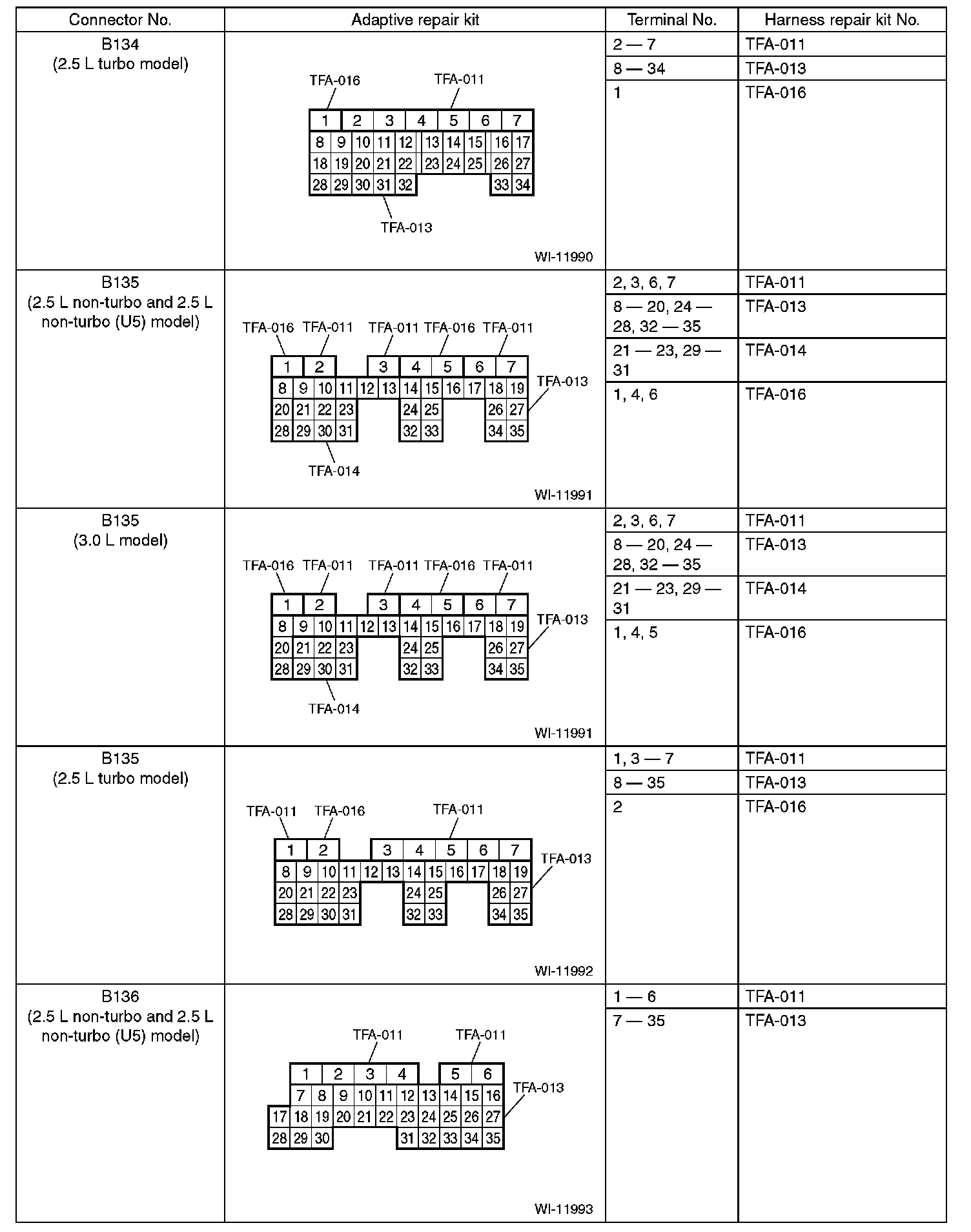

B134-B136:

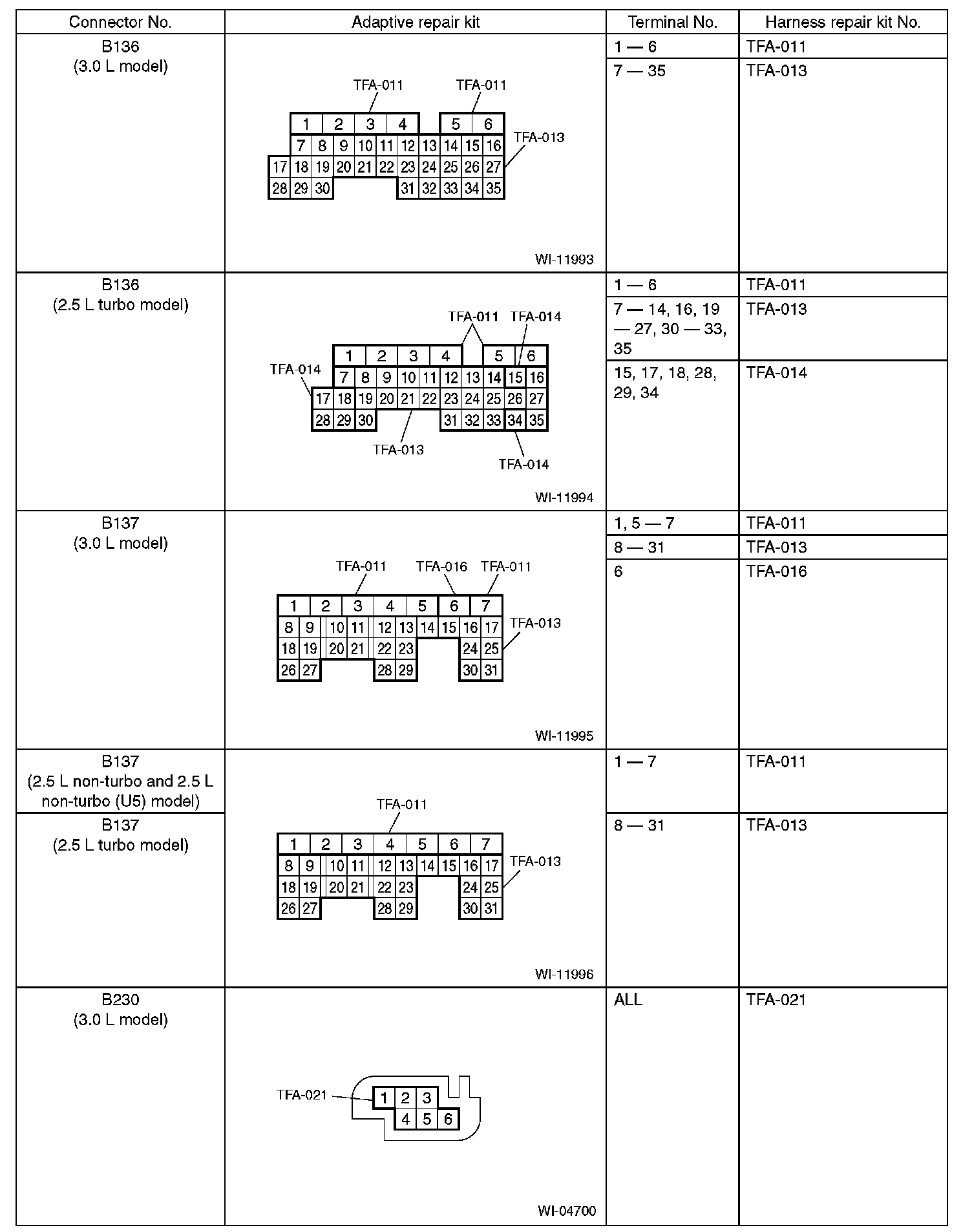

B136-B230:

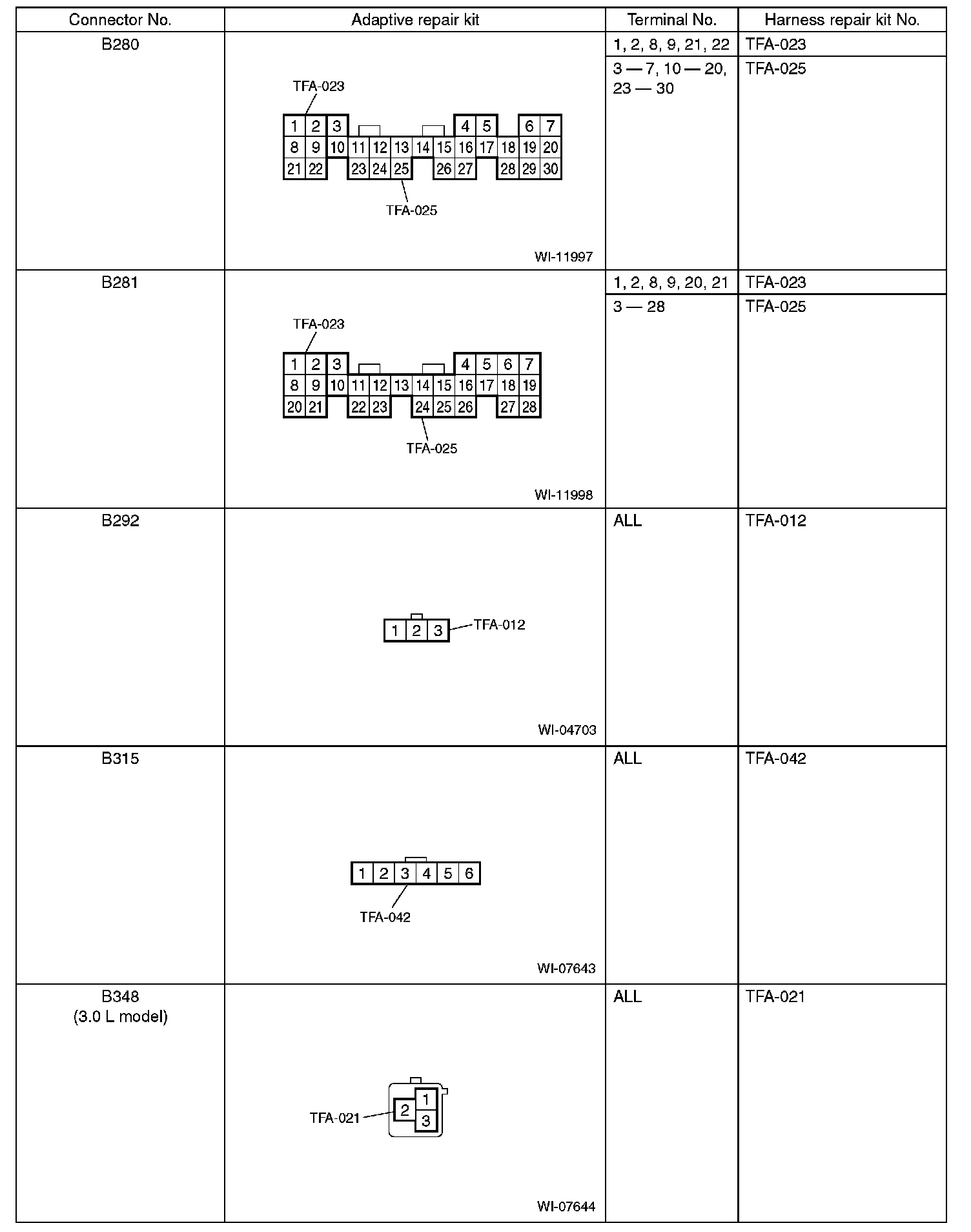

B280-B348:

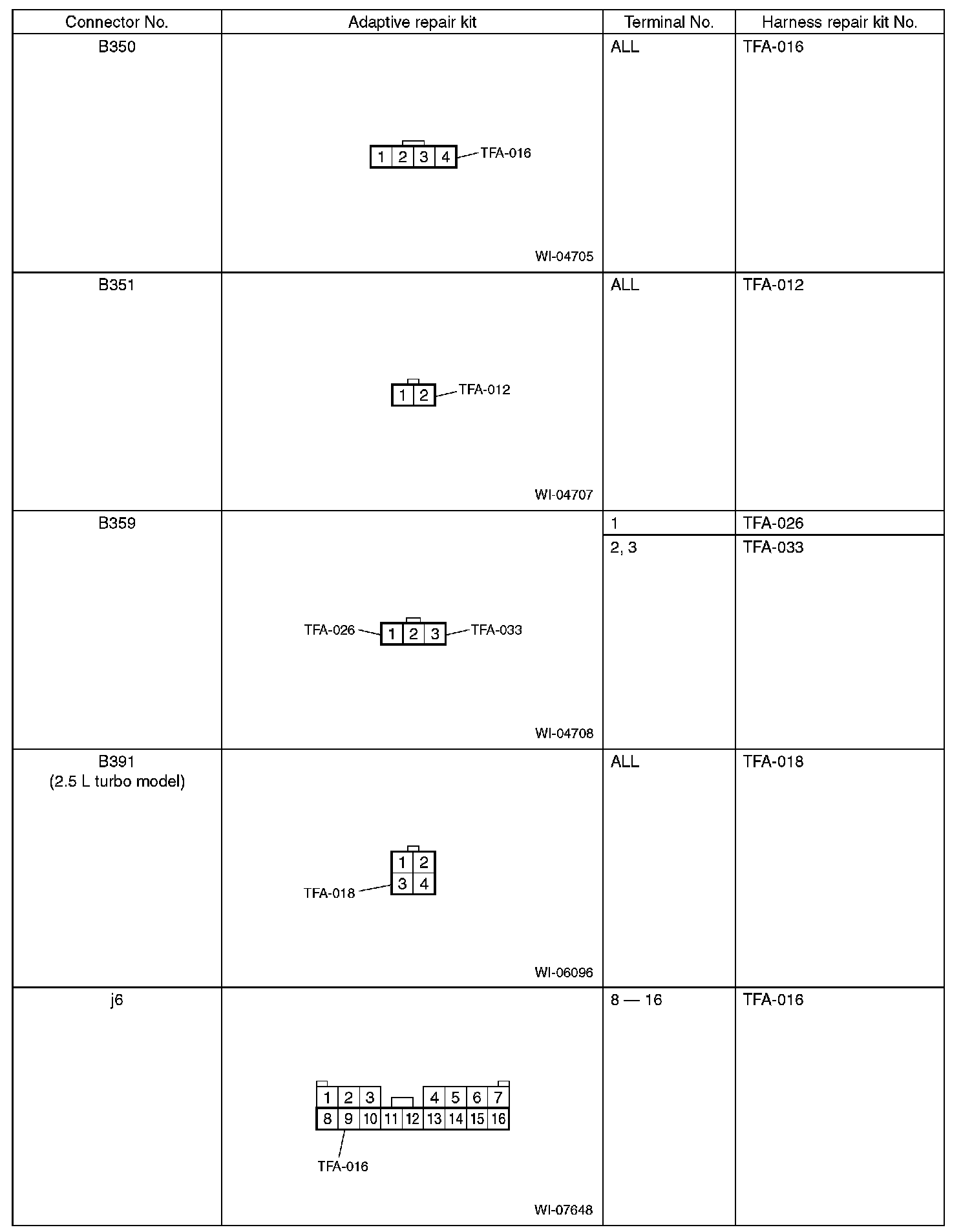

B350-J6:

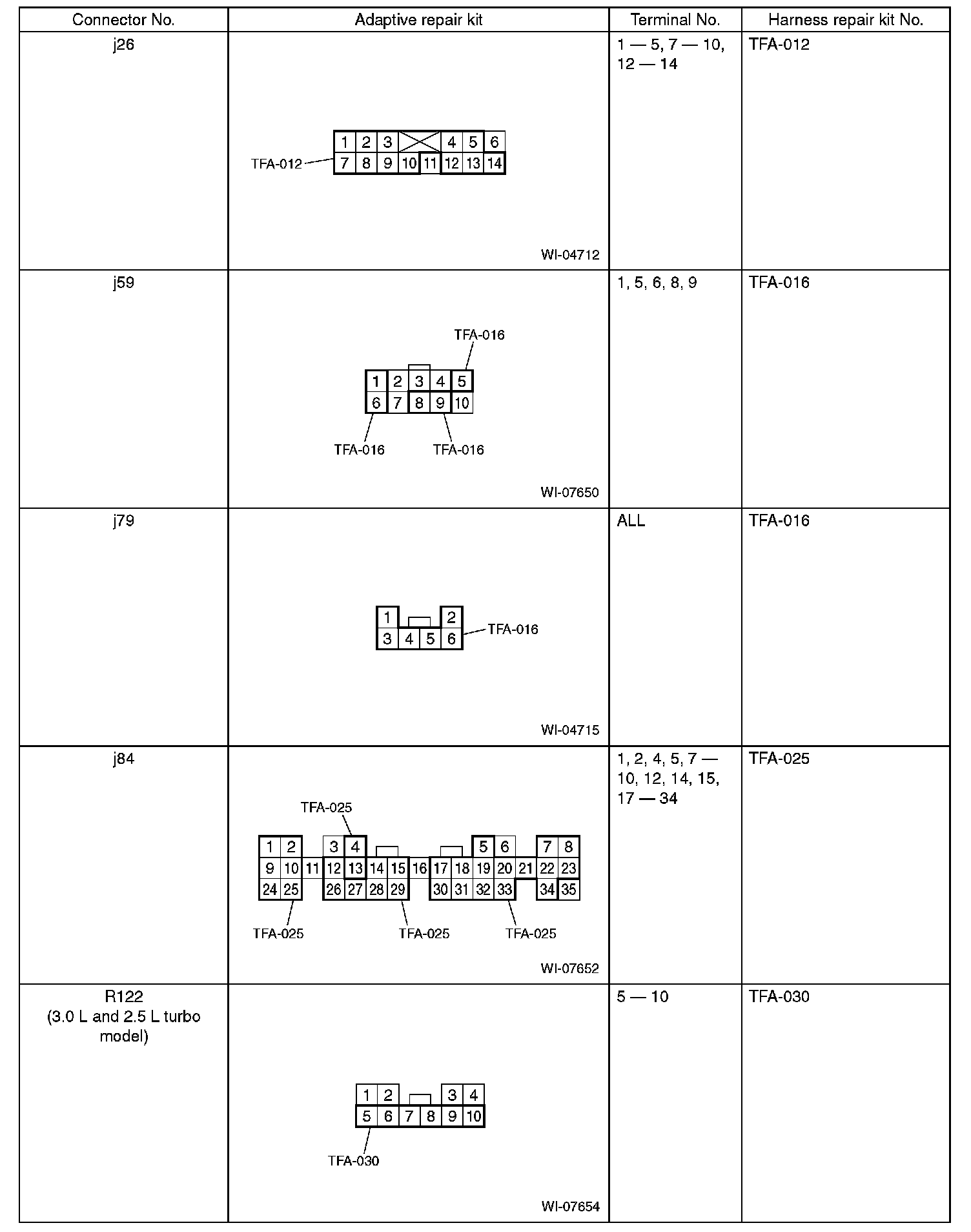

J26-R122:
