System Specifications

Part 1:




Part 2:

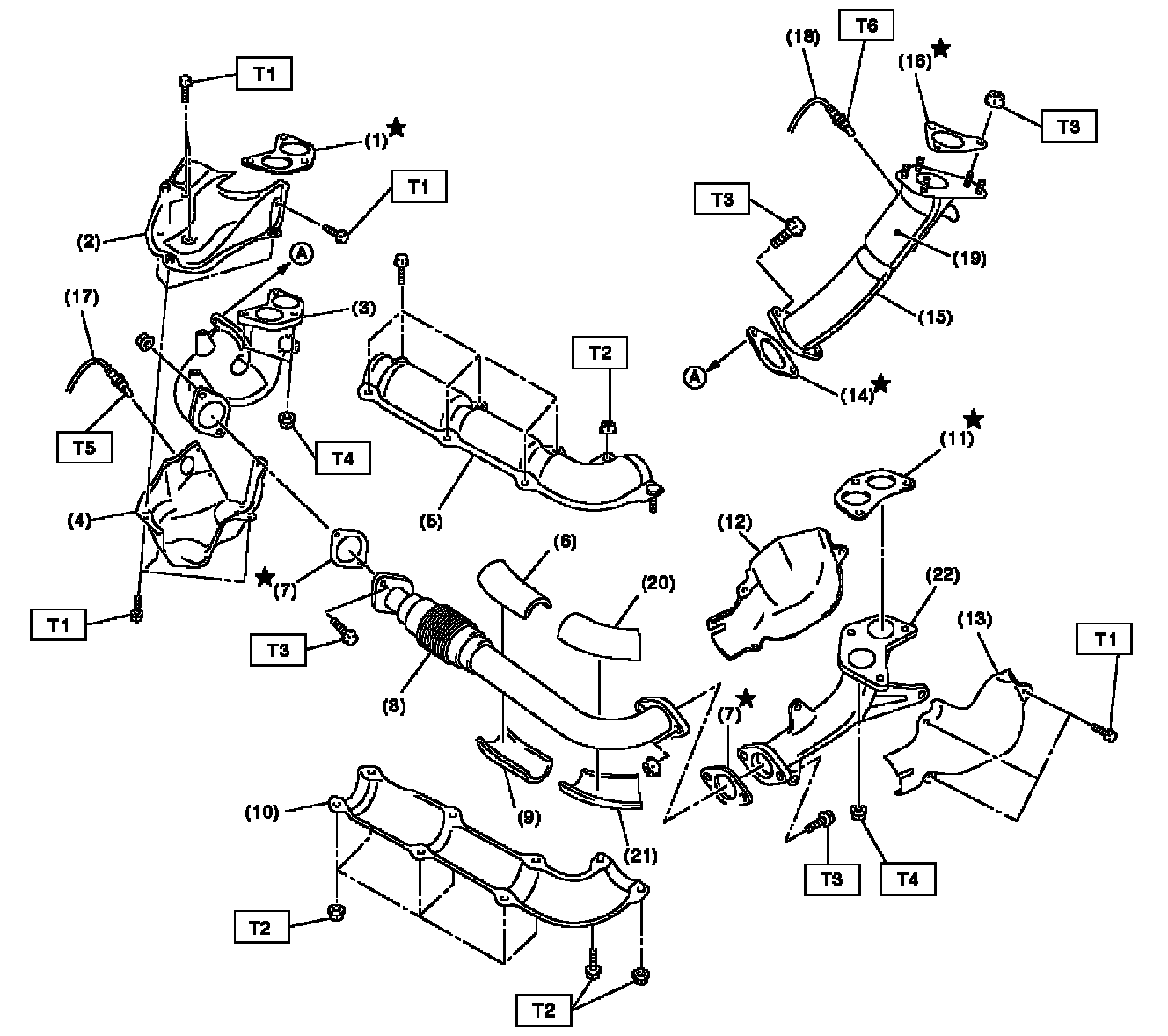

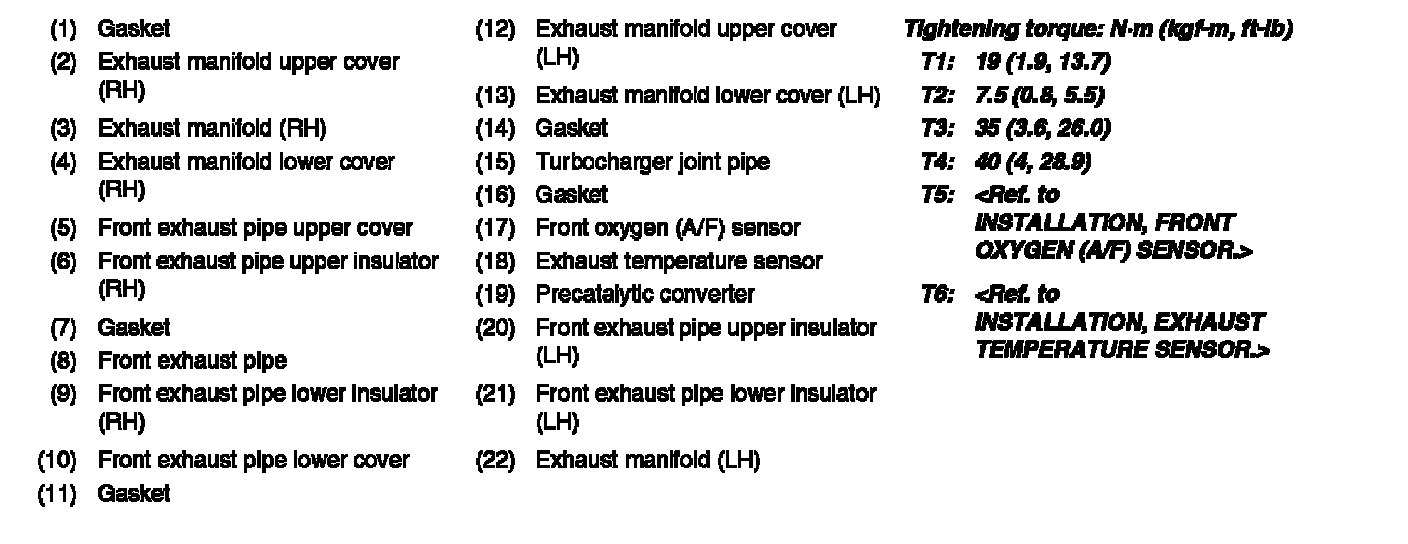

Front Exhaust Pipe

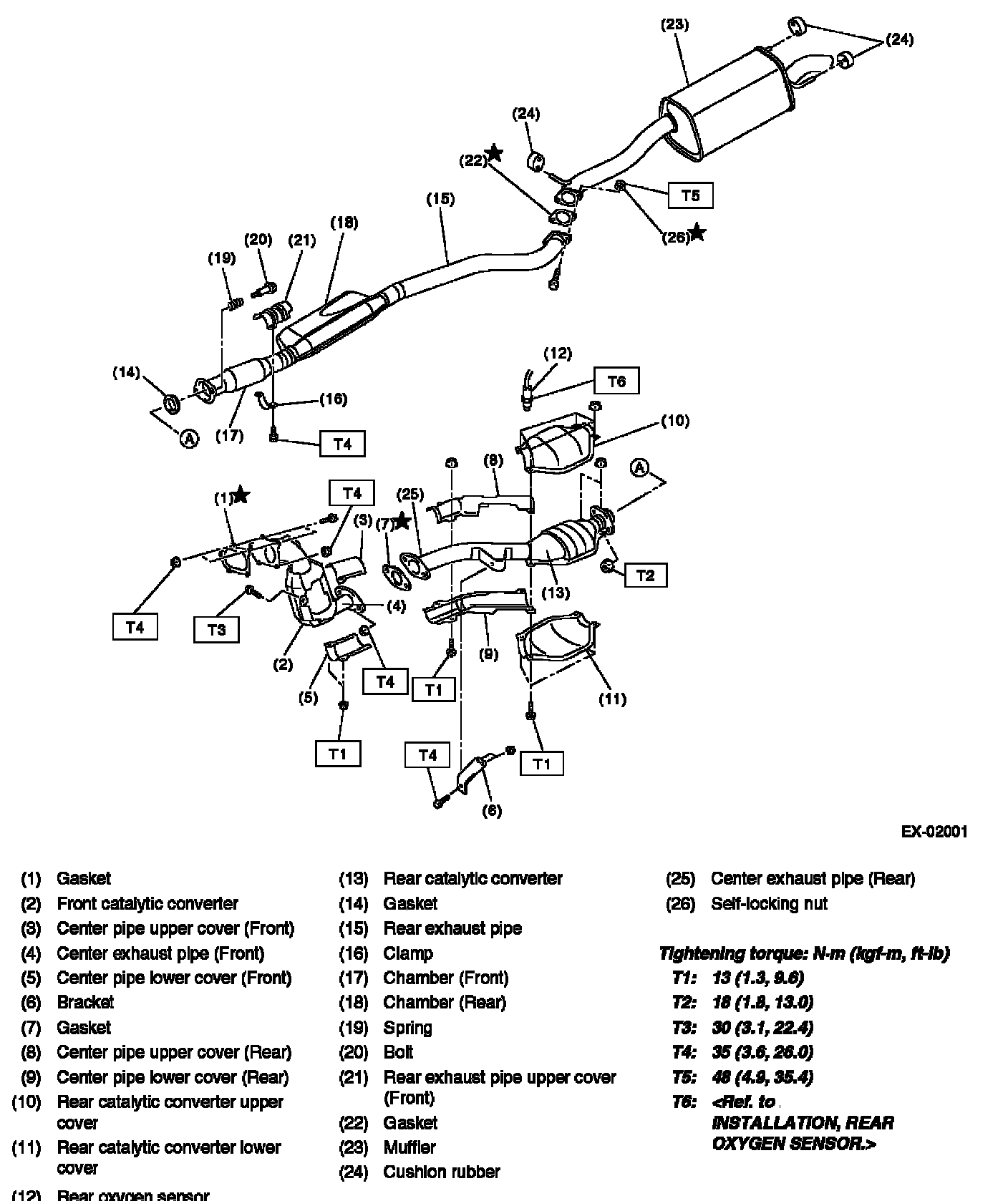

Center and Rear Exhaust Pipe, and Muffler
