Window Glass

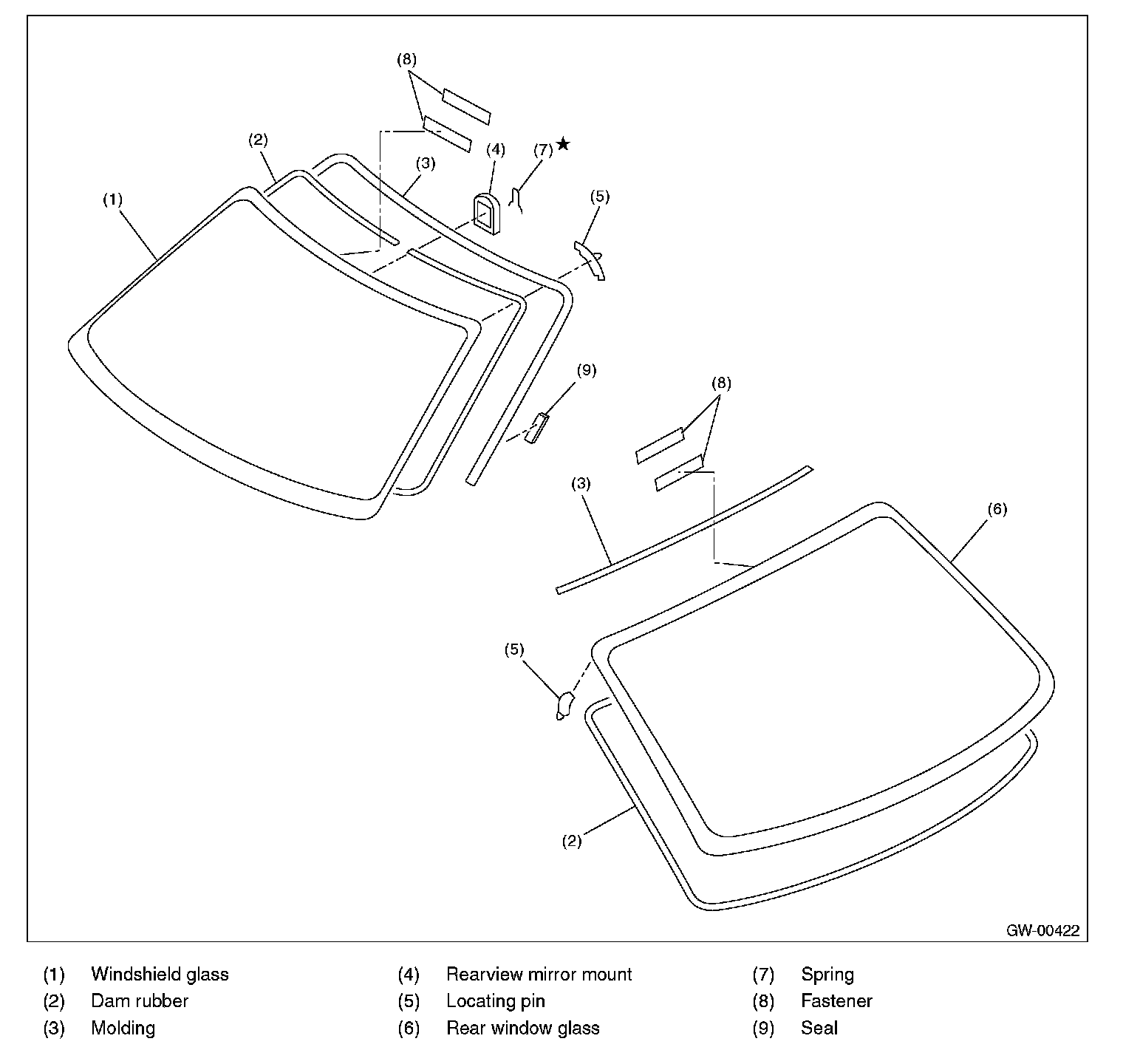

Fixed Glass (Sedan Model):

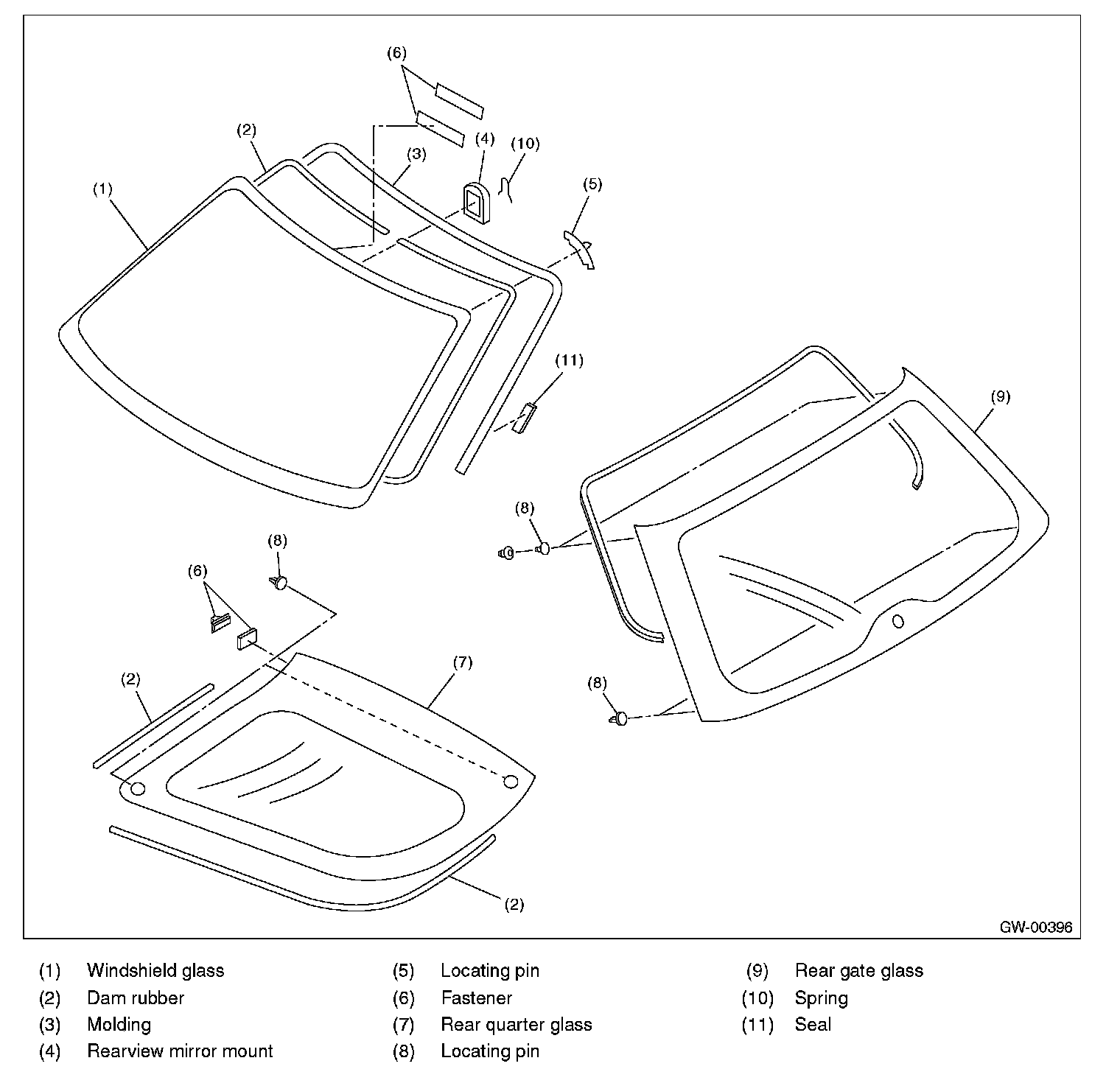

Fixed Glass (Wagon Model):

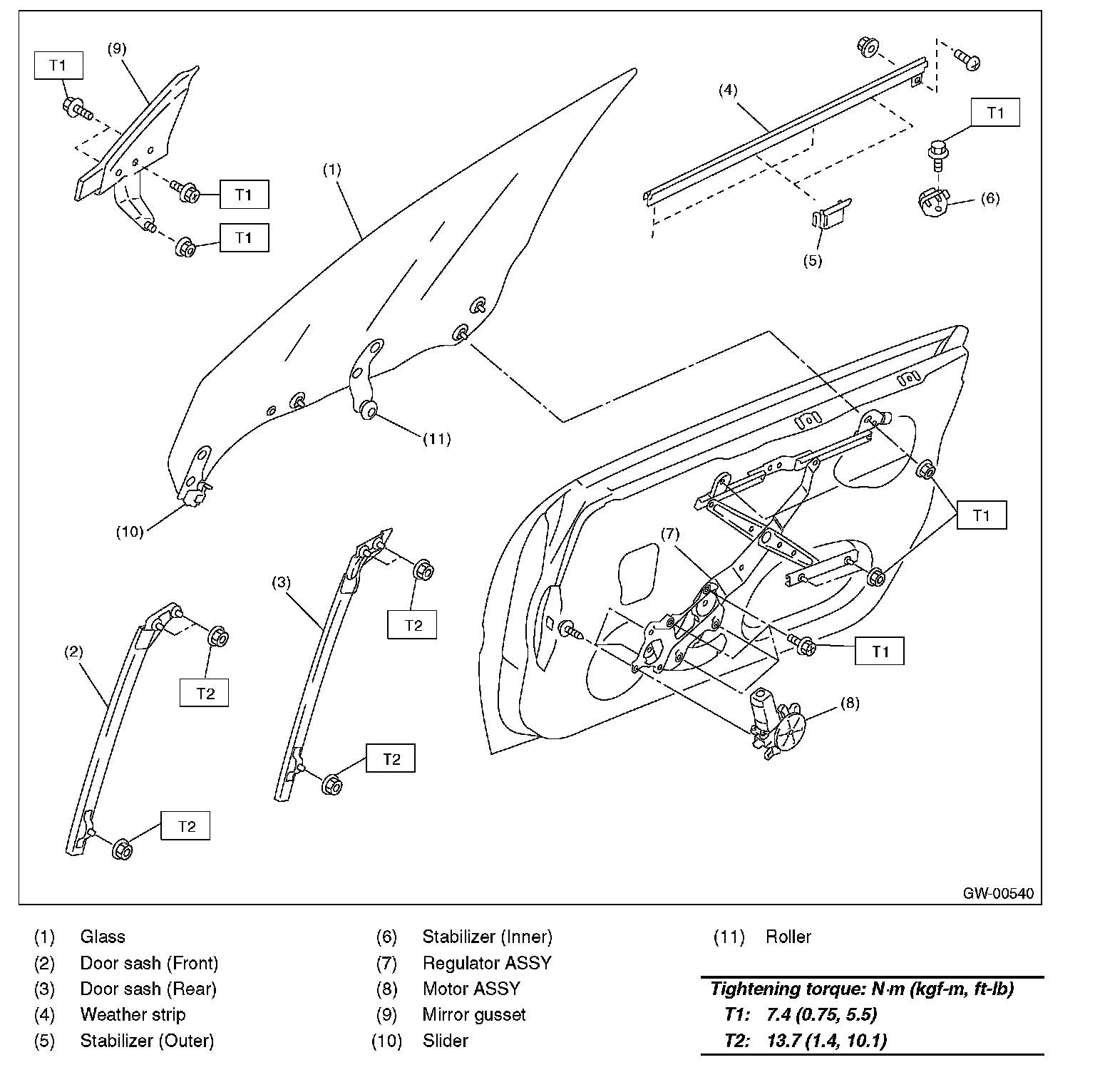

Front Door Glass:

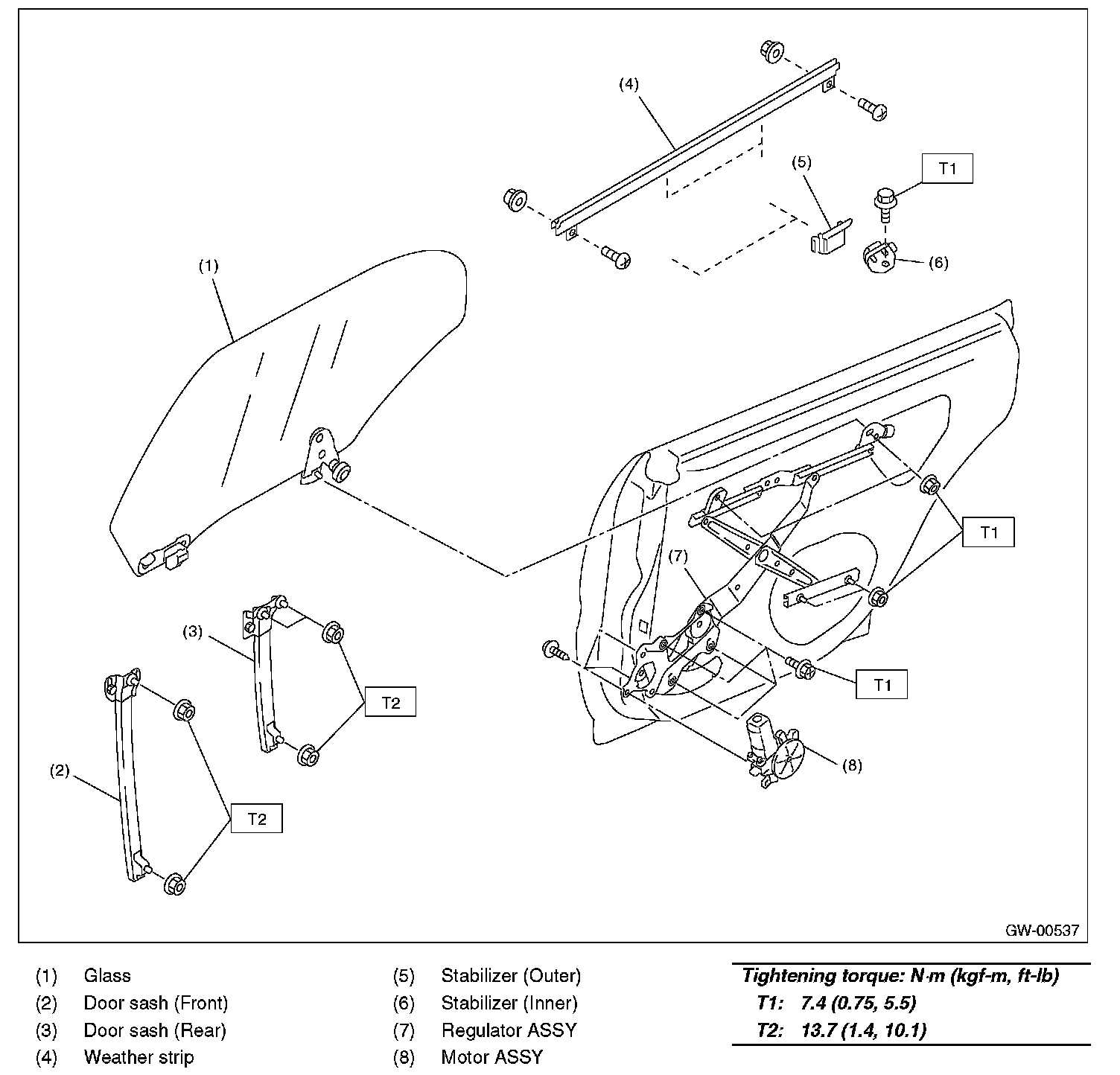

Rear Door Glass:
