Subaru
>>
2006
>>
Outback Sport F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R16-R170
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

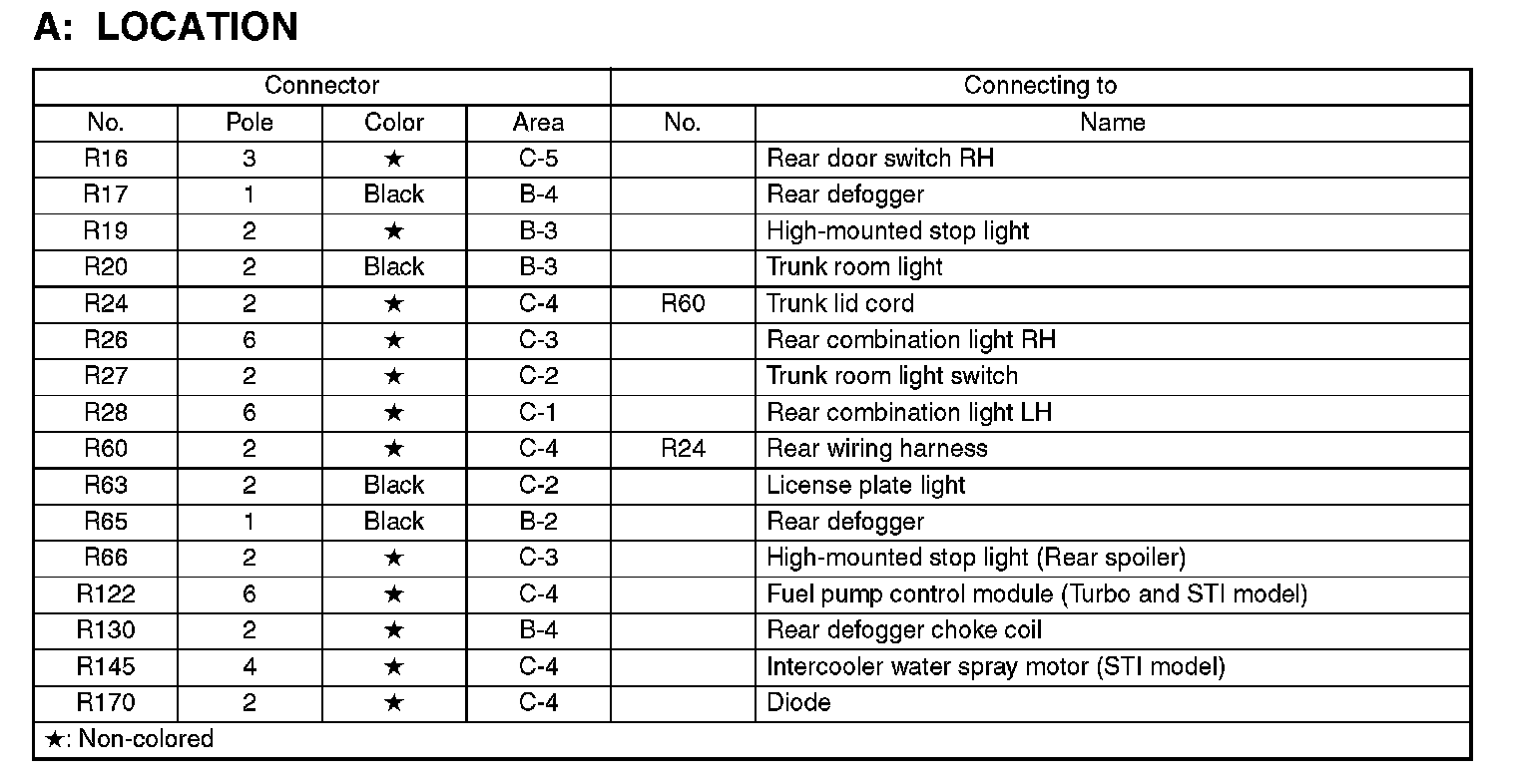

R16-R170
Rear Wiring Harness and Trunk Lid Cord
R16-R170:

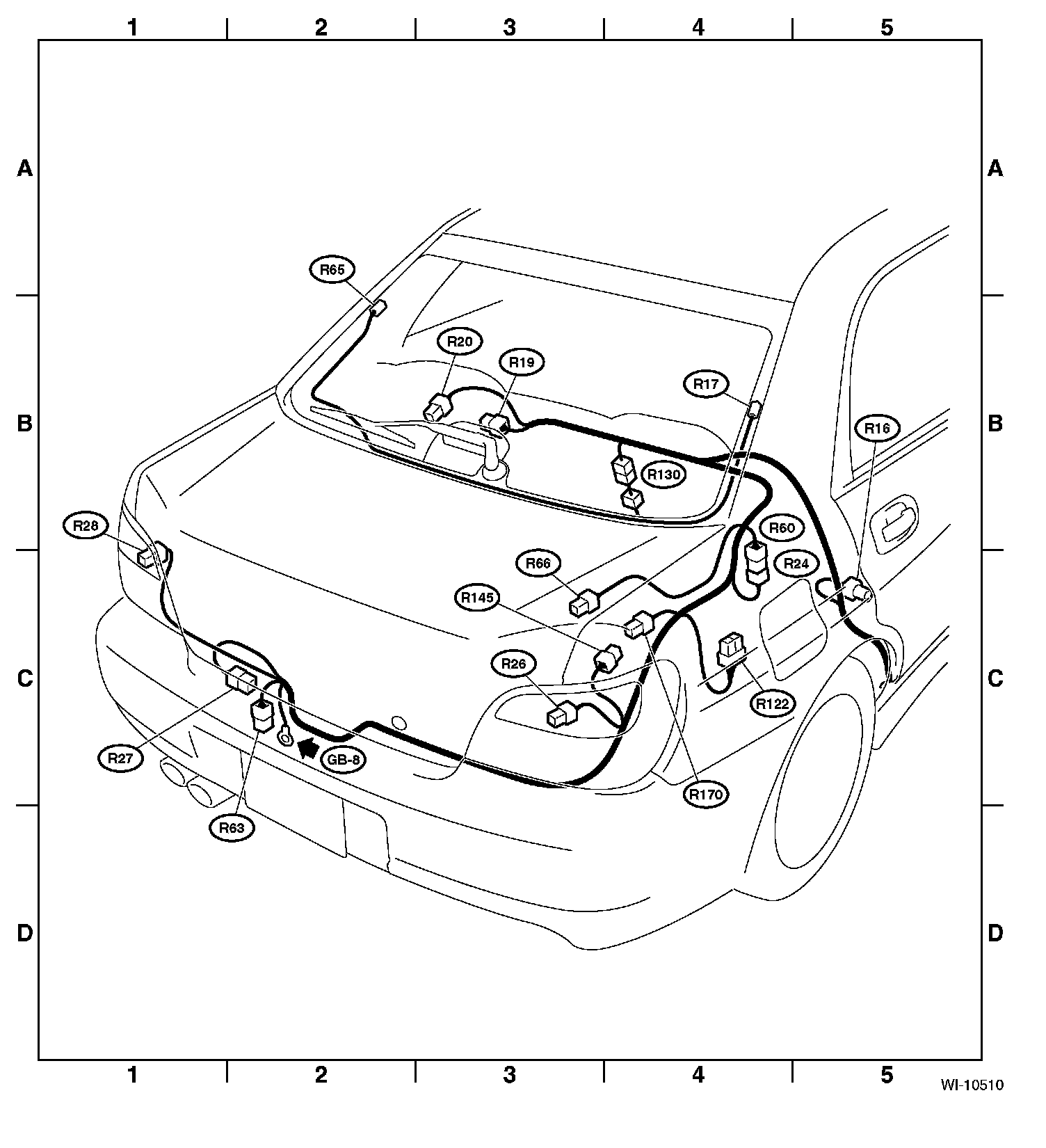

Area View:
