Transmission Control Systems: Locations
Electrical Component Location
LOCATION

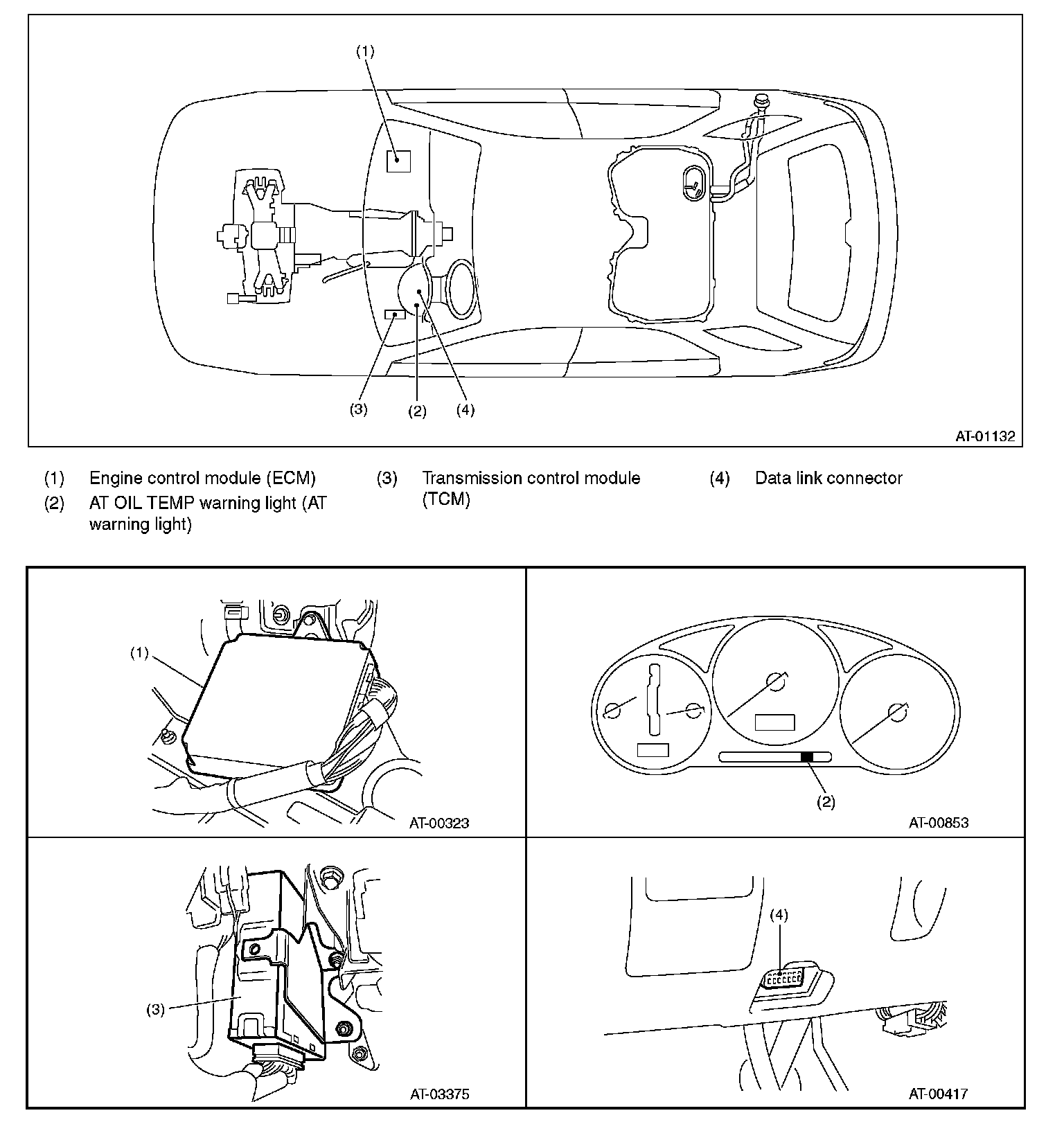

CONTROL MODULE
CONTROL MODULE:

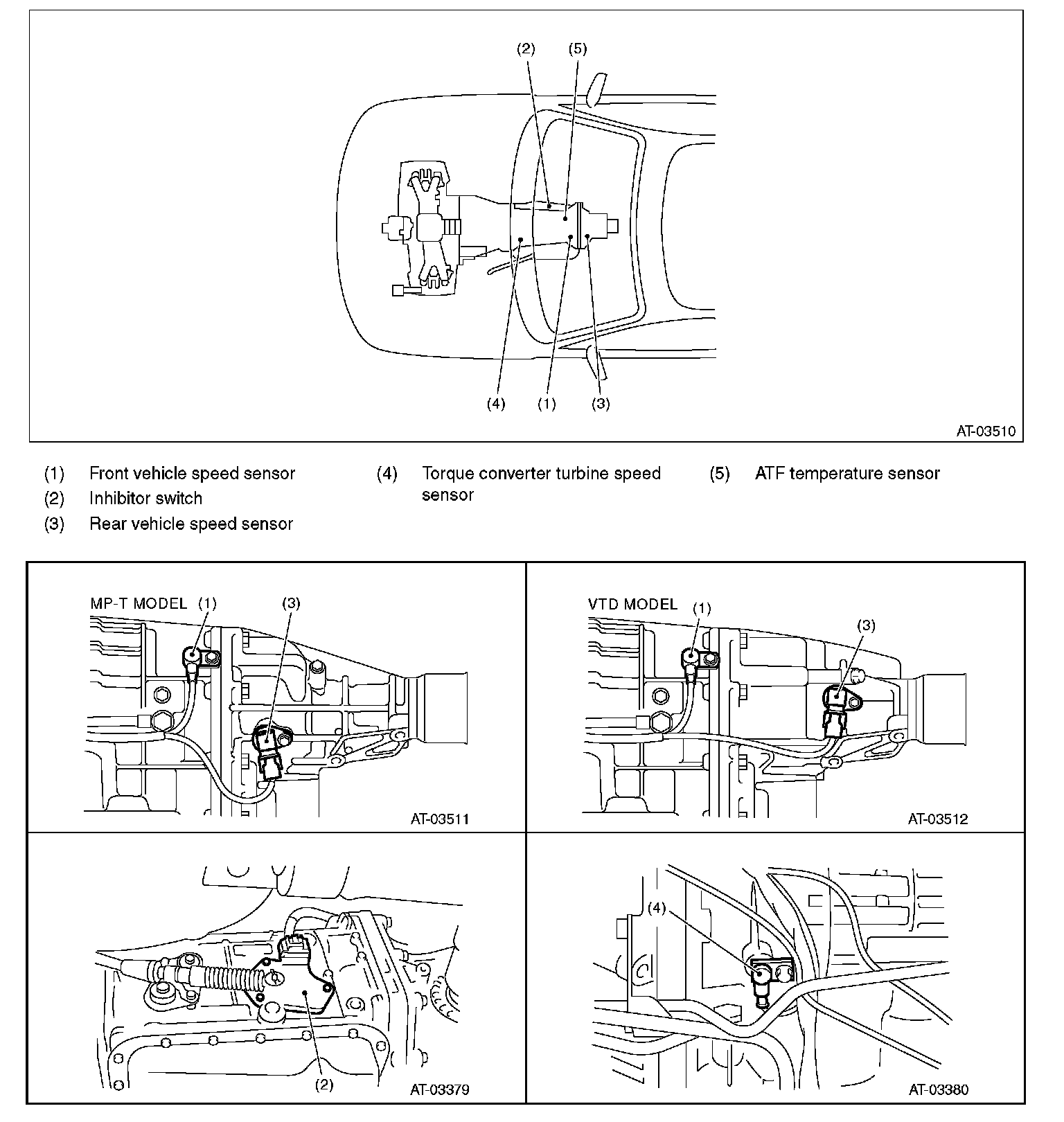

SENSOR
SENSOR:
SENSOR:

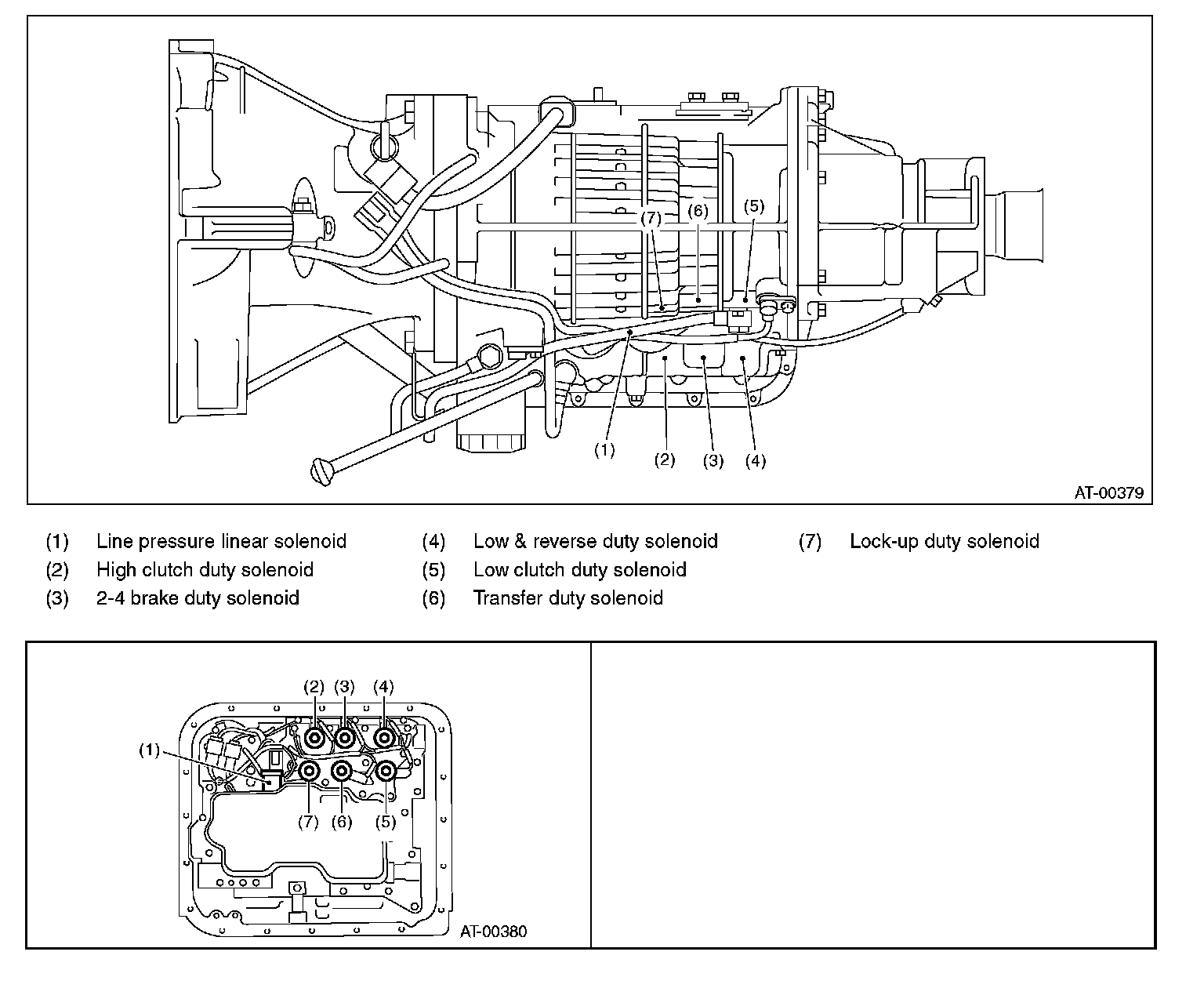

SOLENOID
SOLENOID:
