VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

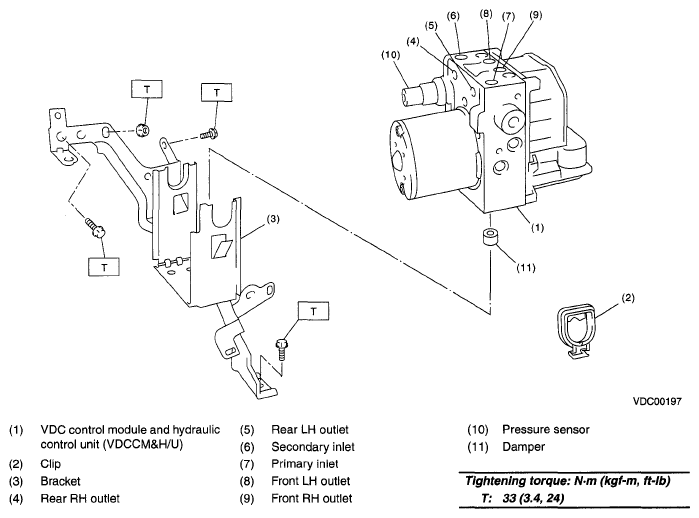

Fig 1: VDC Control Module And Hydraulic Control Unit (VDCCM&H/U) Replacement Components With Torque Specifications
G05020258
