Transfer And Extension Case
WARNING:
This page is about a different variant/trim than selected.

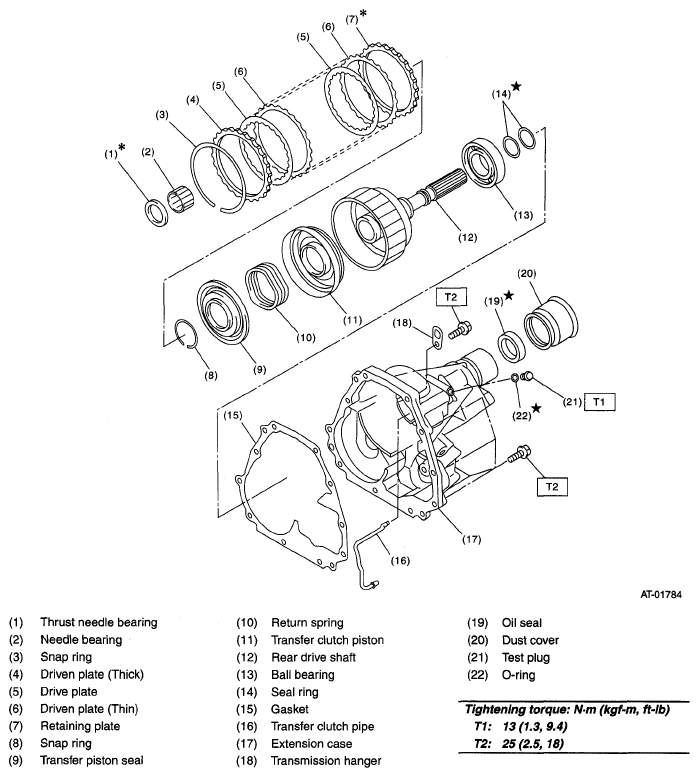

Fig 1: Exploded View Of Transfer And Extension Case Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
