Steering Wheel And Column

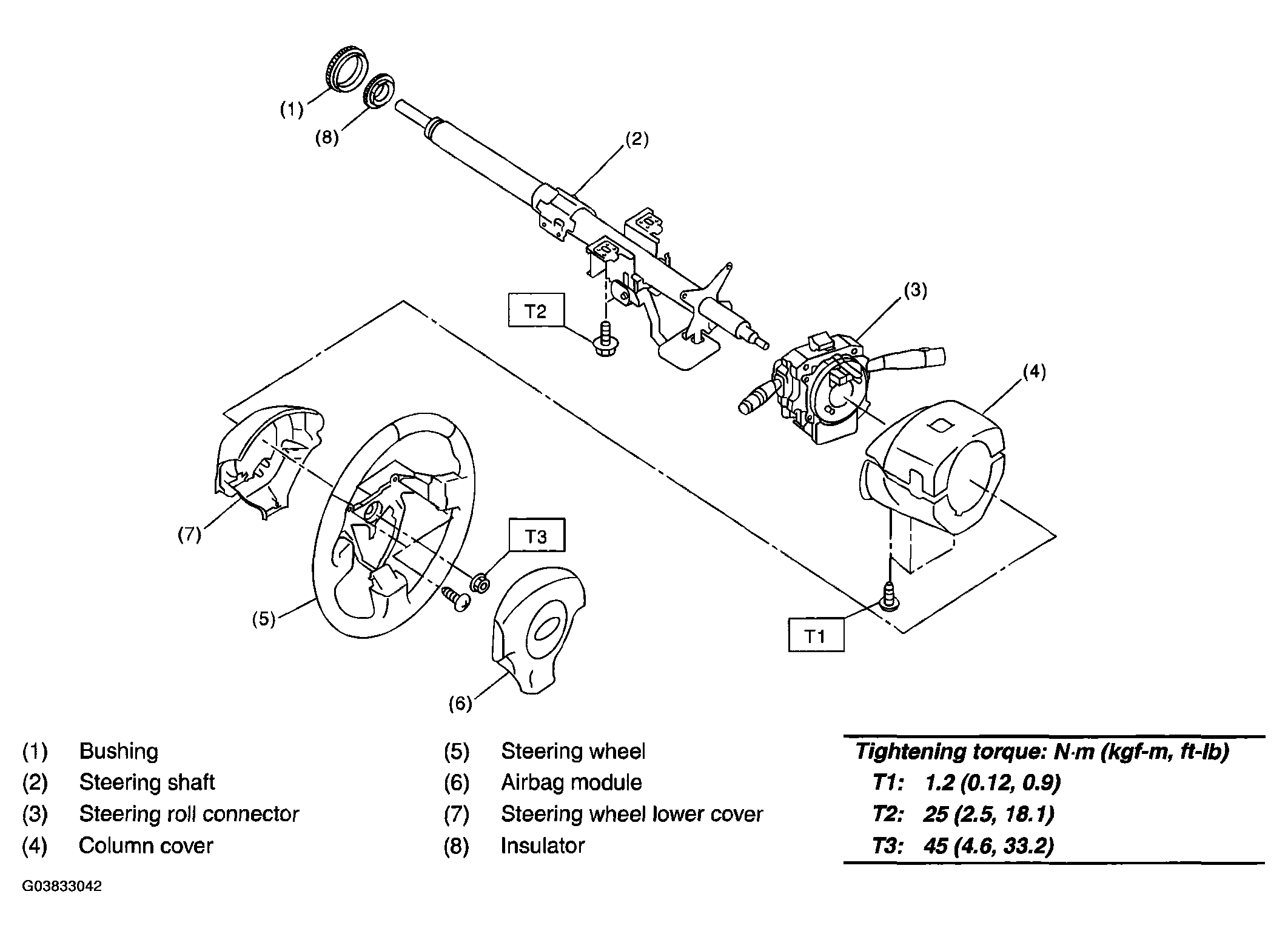

Fig 1: Steering Wheel And Column Component With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
