Tail Gate Lock
WARNING:
This page is about a different car, the 2006 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

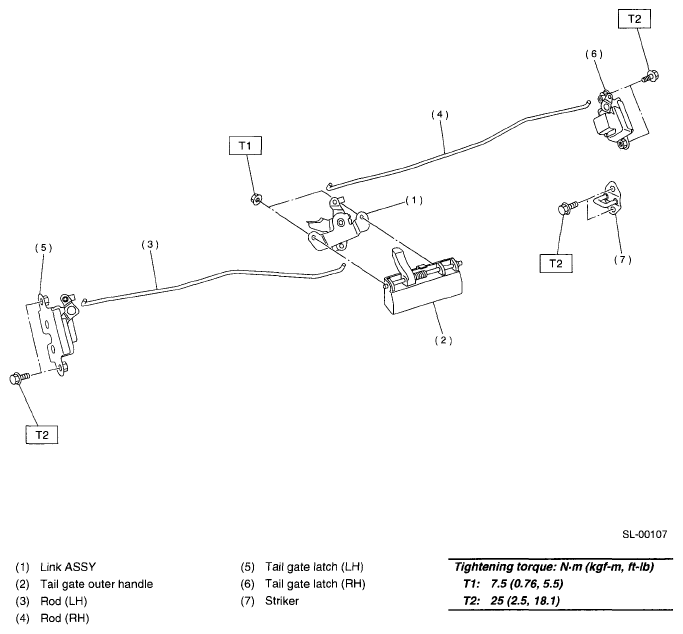

Fig 1: Exploded View Of Tail Gate Lock Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
