Transmission Case And Control Device
WARNING:
This page is about a different variant/trim than selected.

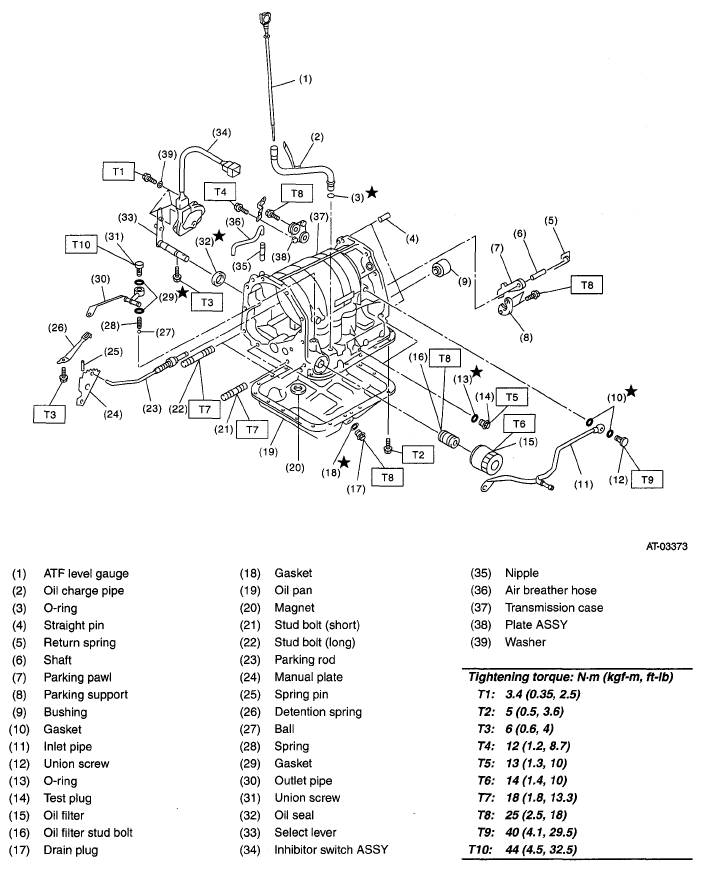

Fig 1: Exploded View Of Transmission Case And Control Device Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
