Torque Converter And Case

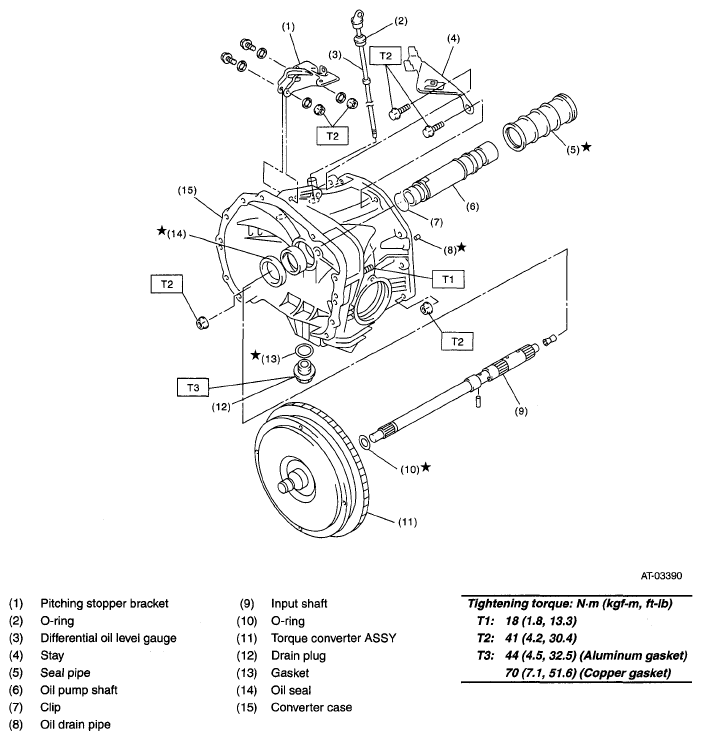

Fig 1: Exploded View Of Torque Converter And Case Components With Torque Specifications
G05021722Courtesy of SUBARU OF AMERICA, INC.
